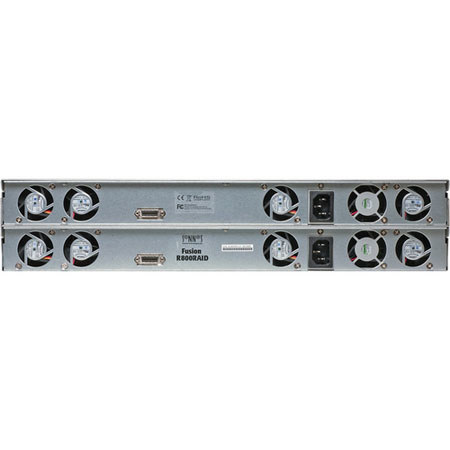

Sonnet 4TB R800RAID 8-Drive SATA Storage System with PCI Express RAID Controller, Built-in Flexibility, Versatile Performance

Special Order Item - This is a special order item that is Non Cancelable and Non Returnable. We Charge you when you place your order. Approximate arrival at Adorama 1-2 Weeks from date of order.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500

Our Price

Free Shipping
Add to Wishlist

About this item

The 4TB Fusion R800RAID Hard Drive Array Storage System from Sonnet is an external RAID storage system for Windows, Mac and Linux computers. The array features 8 hot-swappable drives, which can be configured in a variety of RAID settings. It supports multiple video stream playback and sustained transfer rates of 440MB/sec in RAID 0 mode.

The array includes a PCI Express controller card, which is required to be installed in the host computer. It is an excellent solution for the large storage needs and intense performance requirements associated with video editing applications. It is housed in a standard 2U rackmount form factor.

What's Included With This Item

  • Sonnet 4TB Fusion R800RAID 8-Drive SATA Storage System
  • Disk Enclosure
  • Sonnet RAID Controller
  • (2) Multilane Cables
  • Eight 3.5" Drive Modules
  • Power Cord
  • Software CD
  • User Guide
  • Sonnet 5 Years Warranty

Key Features

  • Complete storage system includes enclosure, RAID controller card, drive modules, cables and software
  • Up to 690 MB/sec read, 677 MB/sec write data transfers (configured as RAID 5)
  • Overcomes volume size limit in Windows XP Pro 32-bit to fully support volumes up to 16TB
  • Universal 100-240V, 50/60Hz power supply
  • Drive Activity, Drive Presence and Power LED indicators
  • Quiet fans
  • RoHS compliant

Technical Specs

Capacity 4TB
External Connectors Enclosure: Two mini-SAS
Card: Two Infiniband multilane
Drives Supported 3 & 1.5GB per second Serial ATA;
up to 7,200 RPM
Data Transfer Speed Up to 690MB/s, depending on interface used and configuration
Supported Drive Configurations Hardware-based JBOD;
RAID 0, 1, 4, 5, 6 and 10
Supported Video Formats 2K (2048 x 1556) LOG RGB, 10-bit 1080 4:4:4 HD, uncompressed 8-bit 1080i HD, ProRes 422, DV, HDV, DVCPRO and uncompressed SD
Noise 41 dBA
(Ambient Office 40-50 dBA)
Power Supply 2x 180W (non-redundant),
100-240V, 50/60Hz Universal
Operating Temperature +32° F to +95° F
(0° C to +35° C)
Dimensions (W x D x H) 17.0 x 16.5 x 3.5 in / 43.8 x 41.9 x 8.8 cm
Weight 36 lbs (16.3kg)
