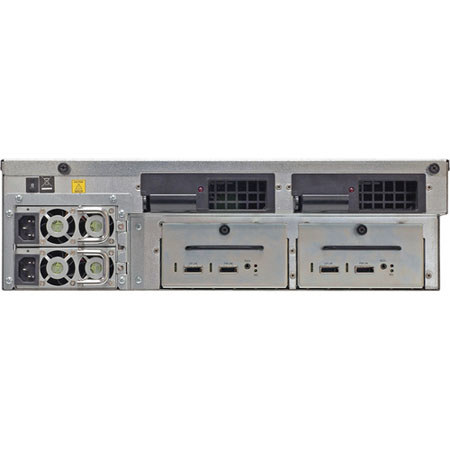

Sonnet RX1600 RAID with Controller 32TB, Storage System Hard Drive with Internal SAS Expanders

Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

Free Expedited Shipping
Add to Wishlist

About the Sonnet RX1600

Sonnet's Fusion RAID storage systems are widely recognized for their performance and dependability, providing users the data throughput and protection critical in the growing field of high definition video editing work. Fusion RX1600RAID takes these attributes to a new level. Building on proven technologies, the Fusion RX1600RAID rackmount 16-drive SATA storage system offers the fastest performance and biggest capacity yet of any Sonnet storage system plus the easy expandability featured in the Fusion RX1600RAID and adds Enterprise-class features to the mix. Fusion RX1600RAID storage systems are designed for work environments where performance and fault tolerance are critical and maximum availability a must. Fusion RX1600RAID storage systems easily handle uncompressed HD while protecting the data at the same time, yet flexible enough to be configured for any workflow.

Under real world use (drives 85% filled and fragmented) with its drives formatted as a RAID 5 group (sixteen drives striped with parity across all group members), a Fusion RX1600RAID system is capable of 2K (2048 x 1556) LOG RGB capture and playback. A Fusion RX1600RAID system can achieve up to 1000 MB/sec read and 750 MB/sec write (AJA Kona 1080HD test), fast enough to handle uncompressed 10-bit 1080 4:4:4 HD, or multiple streams of ProRes 422, uncompressed 8-bit 1080 HD, DV, HDV and DVCPRO video.

With drives formatted as a RAID 4, RAID 5, RAID 6, or DVRAID group, Fusion RX1600RAID systems offer file protection in the event of a drive failure (two drives when formatted as a RAID 6 group). You can configure your system to provide visual and audible alerts, including e-mail notification in the event of a drive failure. A drive can be swapped out and the RAID group rebuilt in around a few hours, or you can continue to work at reduced bandwidth while the RAID group rebuilds in the background.

Sonnet RX1600 Includes

  • Sonnet Fusion RX1600 RAID 32TB Storage System Hard Drive
  • Rackmount Disk Enclosure
  • Two Rackmount Rail Assemblies and Mounting Hardware
  • Sonnet RAID Controller
  • Two 2-Meter Mini-SAS Cables
  • Sixteen 3.5" Drive Modules
  • Two Power Cords
  • Software CD
  • User's Guides
  • Sonnet 5 Years Warranty

Sonnet RX1600 Features

  • High Performance-A single Fusion RX1600RAID system with sixteen drives (configured as RAID 5) delivers up to 1000 MB/sec read, 750 MB/sec write data transfers
  • File Protection-Fusion RX1600RAID supports RAID levels 4, 5, and 6 to protect data in case of a drive failure (two drives with RAID 6) while maintaining great performance
  • Monitored Operation-SES (SCSI Enclosure Services) and S.M.A.R.T. data reporting provide realtime monitoring and reporting of the enclosure and drives' status
  • Enterprise Class Components-Redundant, universal 100-240V, 50/60Hz power supplies, and redundant fan modules are hot-swappable
  • Easy, Economic Expandability-Internal SAS expanders enable you to connect up to eight RX1600RAID enclosures to a single Sonnet RAID controller card
  • Better Windows Support-Overcomes volume size limit in Windows XP 32-bit to fully support volumes up to 16TB
  • 32TB storage
  • Drive Activity, Drive Presence, Power, SES, and Link LED indicators
  • Complete storage system includes enclosure, RAID controller card, drive modules, cables, and software
  • RoHS compliant

Sonnet RX1600 Specifications

Hardware: External Connectors Enclosure: Two mini-SAS
Card: Two mini-SAS
Drives Supported 3 & 1.5 Gb per second Serial ATA; up to 7,200 RPM
Data Transfer Speed Up to 1000 MB/s read and 750 MB/s write, depending on configuration
Supported Drive Configurations Hardware-based JBOD; RAID 0, 1, 4, 5, 6, and 10
Supported Video Formats 2K (2048 x 1556) LOG RGB, 10-bit 1080 4:4:4 HD, uncompressed 8-bit 1080i HD, ProRes 422, DV, HDV, DVCPRO, and uncompressed SD
Power Supply 350W, 100-260V, 50/60Hz Universal
Operating Temperature +41° F to +104° F (5° C to +40° C)
Noise Fusion RX1600RAID, 60 dBA
OS Compatibility Mac OS X Version 10.4.8+ (including Snow Leopard)
Windows 7, Vista, Server 2008, Server 2003, and XP Pro
Linux (RedHat ES 3, 4; Suse RedHat ES 3, 4; Suse Linux 9, 9.1, 9.2, 9.3, 10, 10.1 and the following architectures: i386; x86_64 (AMD64, Intel EM64T)
Hardware Compatibility Mac, Windows, or Linux computer with available x8 or x16 PCI Express (PCIe) slot
Dimensions W x D x H 17.4 x 21 x 5.2 in (42.2 x 53.3 x 13.2 cm)
Weight (with drives) 59.5 lbs (27 kg)
