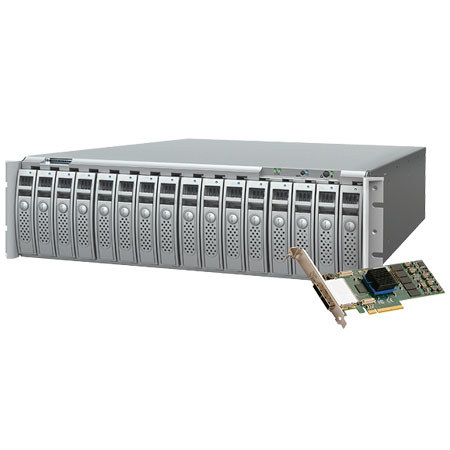

Sonnet Fusion RX1600 32TB RAID Storage System with 6GB Controller
See all Sonnet items

Sonnet Fusion RX1600 32TB RAID Storage System with 6GB Controller, 1750 MB/s Read & 1250 MB/sec Write Speed

SKU: SNTRX16S632T
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Sonnet RX1600 Specifications

  • Capacity

    32TB

  • Data Transfer Speed

    Up to 1750MB/s read, 1250MB/sec write, depending on configuration

  • Supported Drive Configurations

    Hardware-based JBOD; RAID 0, 1, 4, 5, 6 and 10

  • Supported Video Formats

    2K (2048 x 1556) LOG RGB, 10-bit 1080 4:4:4 HD, uncompressed 8-bit 1080i HD, ProRes 422, DV, HDV, DVCPRO and uncompressed SD

  • Bus Interface

    PCI Express 2.0 x8

  • External Connectors

    Two mini-SAS

  • RAID Processor

    Marvell 88RC9580

  • Firmware

    Flash-ROM upgradeable to latest firmware version

  • External Connectors

    Four mini-SAS

  • Drives Supported

    3 & 1.5 Gb per second Serial ATA; up to 7,200 RPM

  • Power Supplies

    350W, 100-240V, 50/60Hz Universal

  • Operating Temperature

    +41 Deg. F to +104 Deg. F (5 Deg. C to +40 Deg. C)

  • Noise

    Fusion RX1600RAID: 60 dBA

  • OS Compatibility

    Mac OS X Version 10.4.8+ (including Snow Leopard)
    Windows 7, Vista, Server 2008, Server 2003 and XP Pro
    Linux (RedHat ES 3, 4; Suse RedHat ES 3, 4; Suse Linux 9, 9.1, 9.2, 9.3, 10, 10.1 and the following architectures: i386; x86_64 (AMD64, Intel EM64T)

  • Hardware Compatibility

    Mac, Windows, or Linux computer with available x8 or x16 PCI Express (PCIe) 2.0 slot

  • RoHS Compliant

    Yes

  • Dimensions (W x D x H)

    17.4 x 21 x 5.2 in (42.2 x 53.3 x 13.2 cm)

  • Weight

    With Drives: 59.5 lbs (27 kg)

About Sonnet RX1600

The Sonnet's Fusion 32TB RAID storage system is widely recognized for their performance and dependability, providing users the data throughput and protection critical in high definition video editing work. Fusion RX1600RAID takes these attributes to a new level. Building on proven technologies, the Fusion RX1600RAID rackmount 16-drive SATA storage system offers the fastest performance and biggest capacity yet of any Sonnet direct-attached storage system, plus the easy expandability featured in the Fusion DX800RAID and adds Enterprise-class features to the mix.

Fusion RX1600RAID storage system is designed for work environments where performance and fault tolerance are critical and maximum availability a must. Fusion RX1600RAID storage system easy to handle uncompressed HD while protecting the data at the same time, yet are flexible enough to be configured for any workflow.

Sonnet RX1600 Features

  • High Performance: A single Fusion RX1600RAID system with sixteen drives (configured as RAID 5) delivers up to 1750MB/sec read, 1250MB/sec write data transfers
  • File Protection: Fusion RX1600RAID supports RAID levels 4, 5 and 6 to protect data in case of a drive failure (two drives with RAID 6) while maintaining great performance
  • Enhanced Data Security: Fusion RX1600RAID monitors drive performance and automatically maps out bad sectors to prevent drive failures and provides data recovery tools in case a RAID group can't be rebuilt and is taken offline
  • Monitored Operation: SES (SCSI Enclosure Services) and S.M.A.R.T. data reporting provide realtime monitoring and reporting of the enclosure and drives' status
  • Enterprise Class Components: Redundant, universal 100-240V, 50/60Hz power supplies and redundant fan modules are hot-swappable
  • Easy Expandability: Internal SAS expanders enable you to connect up to eight RX1600RAID and RX1600 Expansion enclosures to a single Sonnet 6Gb/s SAS/SATA RAID controller card
  • Better Windows Support: Overcomes volume size limit in Windows XP 32-bit to fully support volumes up to 16TB
  • Drive Activity, Drive Presence, Power, SES and Link LED indicators
  • RoHS compliant

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • High Performance
  • File Protection
  • Enhanced Data Security
  • Monitored Operation
  • Enterprise Class Components
  • Easy Expandability

What's in the box:

  • Sonnet Fusion RX1600 32TB RAID Storage System
  • Rackmount Disk Enclosure
  • Two Rackmount Rail Assemblies & Mounting Hardware
  • RAID Controller
  • Two 2-Meter Mini-SAS Cables
  • Sixteen 3.5" Drive Modules
  • 2 x Power Cords
  • Software CD
  • User's Guides
  • Sonnet 5 Years Warranty
