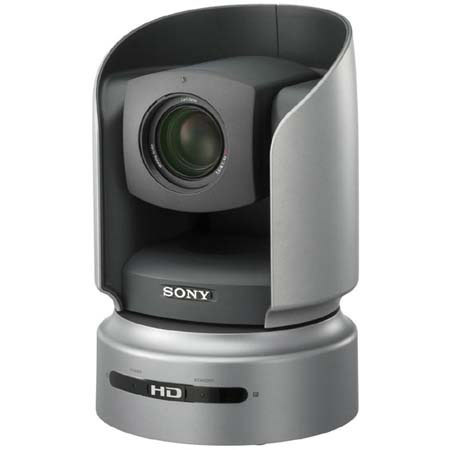

Sony BRC-H700 HD 3-CCD Robotic Color Video Camera
Mfr. Part: BRCH700 SKU: SOBRCH700
enlarge image
$8540.00 Before $1040.05 Savings
|
|
 |
|
|
|
Item Includes
Sony BRC-H700 HD 3-CCD Robotic Color Video Camera - AC Adapter - AC Power Cable - Infrared Wireless Remote Control - RS-422 Terminal Block Connector - Ceiling Bracket - Wire Rope - Package Mounting Screws - Sony 1 Year Parts & Labor with Drum Assembly for 90 Days Warranty
|
Description
The Sony BRC-H700 is a 3CCD High-Definition P/T/Z color video camera. The BRC-H700 combines a high picture quality HD 3CCD camera with pan/tilt/zoom mechanism, wrapped in a sleek, compact body. Like its standard definition family member, the BRC-300, the BRC-H700 can also be mounted on the ceiling. The BRC-H700 supports analog RGB, Y/Pb/Pr output as standard and is also equipped with a slot for optional cards resonding to diverse needs.
By inserting optional cards into this slot, HD-SDI (HDBK-HD1), down converted SKI (HFBK-SD1), computer XGA (HFBK-XG1) and HDV (HFBK-TS1) formats can be used. The BRU-H700 HD optical mutliplex unit with the BRBK-H700 HD optical multiplex card enables the BRC-H700 to transmit uncompressed digital data without deterioration through the CCFC-M100HG HD optical fiber cable. The same RM-BR300 remote control unit for the BRC-300 can be used with BRC-H700; it will simultaneously control up to 7 cameras from a distance. |
Features
 |
All-in-one stylish robotic camera with robust body |
|
Superb picture quality by using 1/3 type HD 3-CCDs |
|
Carl Zeiss Vario-Sonnar T Lens with representation of picturing in every detail |
|
Built-in Auto Focus 48x zoom (12x Optical, 4x Digital) |
|
Desktop and ceiling-mount installation |
|
Wide system expandability with interface card slot for optional cards |
|
External sync input |
|
16 position presets |
|
RS-232C/RS-422 serial control (VISCA protocol) |
|
Daisy chain capability (up to 7 units) |
|
Image stabilization function that reduce vibration |
|
ND filter that can adapt incident illumination |
|
Multi-function IR Remote Commander unit |
|
OSD (On-Screen Display) |
Specifications
| Tilt Angle | -30 to +90 degrees (Tilt) |
| Tilt Speed | 60 degrees/sec |
| Power Consumption | Max. 24W (Without optional card) |
| Effective Pixels | Approx. 1.12 mega pixels |
| S/N Ratio | 50 dB |
| Angle of View (H) | 5.55 degrees (tele end ) to 60.3 degrees (wide end) |
| Built-In Video Output | Analog RGB
Analog Y/Pb/Pr |
| Lens | 12x optical zoom
48x with digital zoom
Carl Zeiss Vario-Sonnar T |
| Signal System | 1080/59.94i
1080/50i (switchable) |
| Video Output | HFBK-HD1: HD-SDI
HFBK-SD1: Down converted SD (RGB, Y/Cb/Cr, Y/C Composite SDI )
HFBK-XG1: WXGA, XGA, VGA
HFBK-TS1: HDV (With an optional card) |
| White Balance | Auto
Indoor
Outdoor
One-push WB
Manual |
| Imager | Robotic Camera |
| Operating Temperature | 0 to 40 degrees |
| Storage Temperature | -20 to 60 degrees |
| Minimum Illumination | 6lx (50IRE F1.6) |
| Angle of View (V) | 3.12 degrees (tele end) to 36.2 degrees (wide end) |
| Backlight Compensation | On/Off |
| Camera Control Interface | RS-232C (VISCA protocol)/RS-422 (VISCA protocol) |
| Focal Length | f=4.5 to 54.0mm (F1.6 to F2.8) |
| Focus System | Auto/Manual |
| Gain | Auto/Manual (0 to 18 dB and Hyper Gain) |
| Image Flip | On/Off |
| Minimum Object Distance | 800mm (tele end) |
| ND Filter | Off/ND1/ND2 |
| Optical Image Stabilizer | On/Off |
| Pan Angle | -170 to +170 degrees |
| Pan Speed | 0.25 to 60 degrees/sec |
| Preset Positions | 16 positions |
| Shutter Speed | 1/10000 to 1/59.94 (1/50) sec. |
| Synchronization | Internal/External |
| Power Requirements | DC 12V |
| Dimensions (W x H x D) | 207mm (Diameter) x 315.8mm (H) |
| Weight | 4.5kg |
| Warranty | Sony 1 year parts & labor with drum assembly for 90 days warranty |
| | |
|
|
|
|
|
|
|
|
