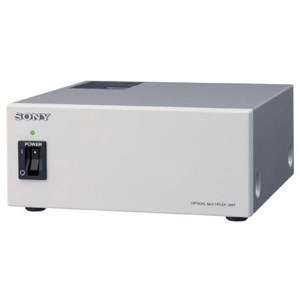

Sony BRU-300 Optical Multiplex Unit for the BRC-300 Pan and Tilt Camera
We Charge you when you place your order. Approximate arrival at Adorama 5 - 7 Business days from date of order.
The Sony BRU-300 is an optical multiplex unit for the BRC-300 high-quality pan and tilt camera. This box allows for uncompressed raw data from the camera to be sent up to 1500 feet. The unit will output Composite video standard. It also has 2 slots for optional video cards for SDI and Analog Component signals.
When the camera system includes the full function RM-BR300 joystick control panel, VISCA RS-422 or RS-232C cables can be connected to the multiplex unit. The control data is sent the other way through the BRU-300 to the cameras.
|Signal-to-Noise Ratio||50 dB|
|Camera Input Signal Connector||Proprietary Fiber Optical Connector (x 1)|
|Composite Video Signal Connector||BNC (x 1 output)|
|S-Video Signal Connector||4-Pin (x 1 output)|
|Sync Signal Connector||BNC (x 1 input, 1 output)|
|VISCA / RS-232C Control Signal Connector||8-Pin (x 1 input, 1 output)|
|VISCAS / RS-422 Signal Connector||9-Pin (x 1)|
|Analog Component / RGB Signal Connector||Optional with BRBK-301 provides 9-Pin (x 1)|
|SDI Video Signal Connector||Optional with BRBK-302 provides BNC (x 1)|
|Power Requirements||100 to 240 Volts AC, 50 or 60 Hz|
|Power Consumption||0.3 A|
|Operating Temperature||32 to 104 degrees F
0 to 40 degrees C
|Dimensions (WxHxD)||8-3/8 x 3-1/2 x 9-1/4 inches
212 x 88 x 233 mm
|Weight||4 Lbs 10 Oz/ Lbs
