Sony

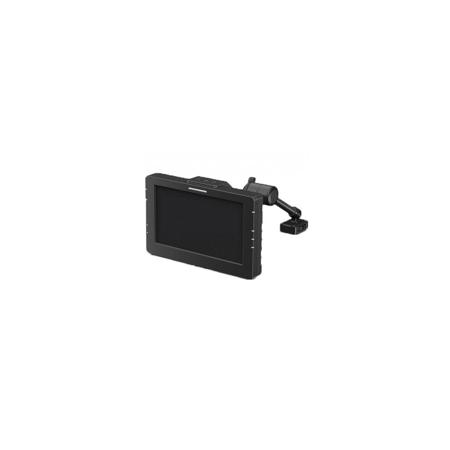

Sony DVF-L700 7" Full HD Color LCD Viewfinder/Monitor - Compatible with PMW-F55 and F5 Cameras

SKU: SODVFL700 MFR: DVFL700
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$5,000.00 List Price

Our Price

$4,095.00
Free Shipping
Qty:

Add to Wishlist In Stock

About the Sony DVF-L700

The Sony DVF-L700 is a compact 7" LCD viewfinder with a Full HD (1920x1080) display offers you the highest resolution in a 7" viewfinder for checking your pictures. Additional to the digital interface the monitor will also come with a HD-SDI Input so that it can be used parallel to the DVF-EL100 OLED VF or DVF-L350. Moreover due to the standard SDI Input you can even use it with every camcorder which have a HD-SDI Output.

The supplied arm enables easy attachment to the camera to be used by the camera assistant or focus puller without any additional accessory. The DVF-L700 color HD digital viewfinder offers LCD quality for CineAlta cameras with a digital interface, such as the PMW-F55 and PMW-F5. This compact 7" LCD viewfinder enables high resolution when shooting in 2K and 4K, not to mention pixel-for-pixel 1920 x 1080 representation of your HD images.

Sony DVF-L700 Includes

  • Sony 1 Year Warranty

Sony DVF-L700 Features

  • 7" LCD Viewfinder/Monitor with Full HD 1920x1080 resolution
  • Digital viewfinder interface
  • 3G-SDI input plus 4-pin DC input for use as monitor
  • LCD screen offers 1000:1 contrast ratio; 10x higher contrast than previous similar size LCD panels
  • Bright, 300cd/m2 screen; 850cd/m2 in High Brightness mode
  • Contrast, Peaking, Focus Magnification and high Brightness function controls
  • Tally Indicator
  • Supplied Flexible positioning arm for comfortable operation

Sony DVF-L700 Specifications

Power Requirements DC 10.5 V to 17.0 V via 26-pin viewfinder connector
DC 10.5 V to 17.0 V via 4-pin Hirose DC input
Power Consumption 20 W
Panel 7" color TFT LCD
Effective Picture Size 7" color TFT LCD
Effective Pixels 1920 x 1080
Brightness 300 cd/m2 (typical; HIGH BRIGHT On: 850 cd/m2 (typical)
Resolution 1920 x 1080
Color Temperature D65
Camera Connector 26-pin digital viewfinder interface, compatible with F5 & F55
I/O Port 3G-SDI (1) BNC with loop through, plus 26-pin viewfinder cable
DC IN DC 10.5 V ~ 17.0 V via 26-pin viewfinder connector
Dimensions (WxHxD) 7.6 x 5 x 2" (194 x 127 x 52)
Weight 1.5 lbs (680g)
