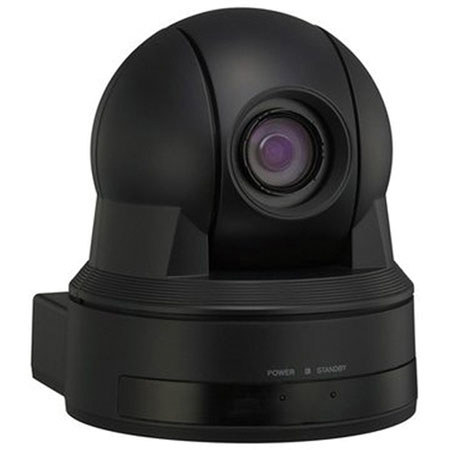

Sony EVI-D80 Standard Definition Robotic 18x PTZ Camera, Black
See all Sony items

Sony EVI-D80 Standard Definition Robotic 18x PTZ Camera, Black

SKU: SOEVID80
(1)

This item is no longer available.

Recommended Alternatives

undefined undefined: Picture 1 regular
Sony BRC-X400 4K UltraHD HDMI/IP/3G-SDI 20x PTZ Camera, White
$6,700.00
undefined undefined: Picture 1 regular
Sony FR7 Cinema Line Full-Frame PTZ Robotic Camera
$11,999.99
$11,998.00
See More Recommendations
Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Sony EVID80 Specifications

  • Image Device

    1/4-type CCD

  • Lens Value

    f= -4.1 mm (wide) to 73.8 mm (tele) F1.4 to F3.0

  • Minimum Object Distance

    10 mm (wide) - 1,500 mm (tele)
    Default: 290 mm

  • Auto Exposure

    Auto, Manual, Priority Mode (shutter priority & iris priority), Bright, EV compensation, Slow Shutter AE

  • Shutter Speed

    1 to 1/10,000 sec

  • Gain

    Auto/Manual/Max. AE Gain Limit (-3 db to +28 dB, 2 dB steps)

  • White Balance

    Auto, ATW, Indoor, Outdoor, One-push, Manual

  • Pan Angle/Speed

    +/- 170deg.
    100deg./sec

  • Tilt Angle/Speed

    +90deg./-20deg.
    90deg./sec

  • Horizontal Viewing Angle

    48.0deg. (wide) to 2.8deg. (tele)

  • Resolution Value

    550 TV Lines

  • Preset Positions

    6

  • Camera Control Interface

    RS-232C/RS-422 VISCA Protocol

  • Minimum Illumination

    0.4 lx (F1.4, 50 IRE)

  • S/N Ratio

    More than 50 dB

  • Video Output

    VBS, Y/C

  • Signal System

    SD NTSC

  • Power Requirements

    DC 12V

  • Power Consumption

    6 W

  • Operating Temperature

    0deg. C to 40deg. C (32deg. F to 104deg. F)

  • Storage Temperature

    -20deg. C to 60deg. C (-4deg. F to 140deg. F)

  • Dimensions (WxHxD)

    145x164x164mm (5.70x6.5x6.5")

  • Weight

    1460g (51.50 oz)

9 Accessories for Sony EVI-D80 Standard Definition Robotic 18x PTZ Camera, Black

  • All Accessories (9)
  • PTZ Controls (2)
  • Cables & Adapters (6)
  • Video Switching & Distribution (1)
Sony RM-IP500 PTZ Camera Remote Controller
Sony RM-IP500 PTZ Camera Remote Controller
$2,995.00
Recommended
Datavideo RMC-180 Control Unit for PTC-100 PTZ Camera
Datavideo RMC-180 Control Unit for PTC-100 PTZ Camera
$949.95
Comprehensive HD15 Pin Jack to Jack Computer Adaptr
Comprehensive HD15 Pin Jack to Jack Computer Adaptr
$5.59
Comprehensive 3' Cat5e 350Mhz Snagless Patch Cable, Blue
Comprehensive 3' Cat5e 350Mhz Snagless Patch Cable, Blue
$3.19
Telemetrics inTELEgent PTZ Camera Control Panel
Telemetrics inTELEgent PTZ Camera Control Panel
$1,250.00
SmallHD 24" Thin Gauge BNC Male to BNC Male SDI Cable
SmallHD 24" Thin Gauge BNC Male to BNC Male SDI Cable
$11.99
Shape 10" Coil SDI Cable with Right Angle BNC 90 Deg. Connectors
Shape 10" Coil SDI Cable with Right Angle BNC 90 Deg. Connectors
$29.92
Comprehensive High Definition 3G-SDI BNC to BNC Cable, 25'
Comprehensive High Definition 3G-SDI BNC to BNC Cable, 25'
$38.39
Decimator MD-HX HDMI & SDI Cross Converter with Scaling & Frame Rate Conversion
Decimator MD-HX HDMI & SDI Cross Converter with Scaling & Frame Rate Conversion
$325.00

About Sony EVID80

The Sony EVID80 (Black) features 18x optical zoom and utilizes the RS-232C/RS-422 VISCA protocol interface, which can allow for easy connectivity to many peripheral system devices. In addition, the new CCD and CMOS sensors offer more sensitivity than previous EVI SD cameras. With high speed pan/tilt/zoom functionality, this easy-to-use camera is an attractive addition to the EVI P/T/Z camera lineup. Best of all, this new camera is ceiling mountable, allowing for more flexible design-in options in many applications.

Sony EVID80 Features

  • 18x Optical Zoom
  • Low minimum illumination
  • 550 TV Lines Resolution
  • E-flip Function
  • Ceiling Mountable
  • Image Stabilization
  • Option to choose between interlace and progressive scan mode

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • 18x Optical Zoom
  • Low minimum illumination
  • 550 TV Lines Resolution
  • E-flip Function
  • Ceiling Mountable
  • Image Stabilization

What's in the box:

  • Sony EVID80 18x SD PTZ Camera
  • AC Adaptor
  • AC Power Cable
  • IR Remote Commander Unit
  • Ceiling Bracket
  • RS-422 Connector Plug
  • Sony 1 Year Warranty
