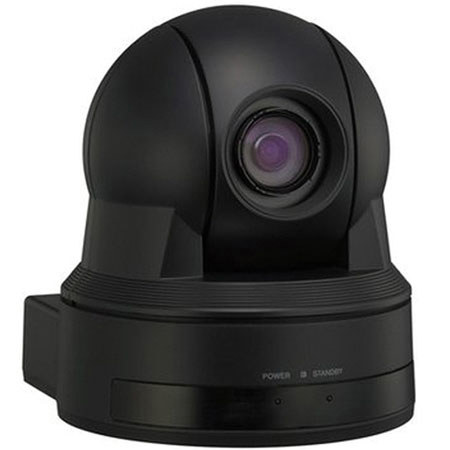

Sony EVID90 28x SD PTZ NTSC Camera, 12x Digital Zoom, 1/4-type EXview HAD CCD Image Device, 1 to 1/10,000sec Shutter Speed, Black

Sony

About Sony EVID90

The Sony EVID90 (Black) features 28x optical zoom and utilizes the RS-232C/RS-422 VISCA protocol interface, which can allow for easy connectivity to many peripheral system devices. In addition, the new CCD and CMOS sensors offer more sensitivity than previous EVI SD cameras. With high speed pan/tilt/zoom functionality, this easy-to-use camera is an attractive addition to the EVI P/T/Z camera lineup. Best of all, this new camera is ceiling mountable, allowing for more flexible design-in options in many applications.

Sony EVID90 Features

  • 28x Optical Zoom
  • Low minimum illumination
  • 550 TV Lines Resolution
  • E-flip Function
  • Ceiling Mountable
  • Image Stabilization
  • Option to choose between interlace and progressive scan mode
  • Wide-D

Sony EVID90 Specifications

Image Device
1/4-type EXview HAD CCD
Lens Value
f = 3.5 mm (wide) to 98.0 mm (tele) F1.35 to F3.7
Minimum Object Distance
10 mm (wide) - 1,500 mm (tele)
Default: 290 mm
Auto Exposure
Auto, Manual, Priority Mode (shutter priority & iris priority), Bright, EV compensation, Slow Shutter AE
Shutter Speed
1 to 1/10,000 sec
Gain
Auto/Manual/Max. AE Gain Limit (-3 db to +28 dB, 2 dB steps)
White Balance
Auto, ATW, Indoor, Outdoor, One-push, Manual
Pan Angle/Speed
+/- 170deg.
100deg./sec
Tilt Angle/Speed
+90deg./-20deg.
90deg./sec
Horizontal Viewing Angle
55.8deg. (wide) to 2.1deg. (tele)
Resolution Value
550 TV Lines
Preset Positions
6
Camera Control Interface
RS-232C/RS-422, VISCA Protocol
Minimum Illumination
0.65 lx (F1.35, 50 IRE)
S/N Ratio
More than 50 dB
Video Output
VBS, Y/C
Signal System
SD NTSC
Power Requirements
DC 12V
Power Consumption
6 W
Operating Temperature
0deg. C to 40deg. C (32deg. F to 104deg. F)
Storage Temperature
-20deg. C to 60deg. C (-4deg. F to 140deg. F)
Dimensions (WxHxD)
145x164x164 mm (5.70x6.5x6.5")
Weight
1460g (51.50 oz)
