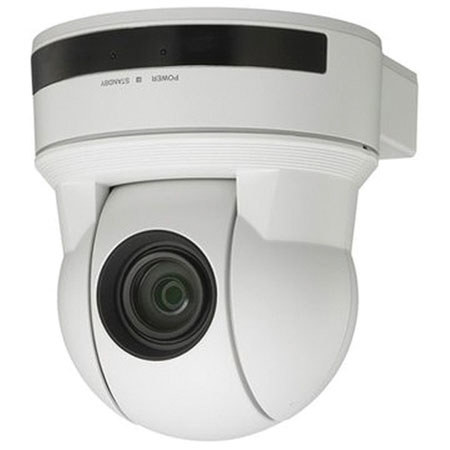

Sony EVID90 28x SD PTZ NTSC Camera, 12x Digital Zoom, 1/4-type EXview HAD CCD Image Device, 1 to 1/10,000sec Shutter Speed, White

Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500

$1,349.00 List Price

Our Price

$949.00 $38 per week
Add to Wishlist

About the Sony EVID90

The Sony EVID90 (White) features 28x optical zoom and utilizes the RS-232C/RS-422 VISCA protocol interface, which can allow for easy connectivity to many peripheral system devices. In addition, the new CCD and CMOS sensors offer more sensitivity than previous EVI SD cameras. With high speed pan/tilt/zoom functionality, this easy-to-use camera is an attractive addition to the EVI P/T/Z camera lineup. Best of all, this new camera is ceiling mountable, allowing for more flexible design-in options in many applications.

Sony EVID90 Includes

  • Sony EVID90 28x SD PTZ NTSC Camera
  • AC Adaptor
  • AC Power Cable
  • IR Remote Commander Unit
  • Ceiling Bracket
  • RS-422 Connector Plug
  • Sony 1 Year Warranty

Sony EVID90 Features

  • 28x Optical Zoom
  • Low minimum illumination
  • 550 TV Lines Resolution
  • E-flip Function
  • Ceiling Mountable
  • Image Stabilization
  • Option to choose between interlace and progressive scan mode
  • Wide-D

Sony EVID90 Specifications

Image Device 1/4-type EXview HAD CCD
Lens Value f = 3.5 mm (wide) to 98.0 mm (tele) F1.35 to F3.7
Minimum Object Distance 10 mm (wide) - 1,500 mm (tele)
Default: 290 mm
Auto Exposure Auto, Manual, Priority Mode (shutter priority & iris priority), Bright, EV compensation, Slow Shutter AE
Shutter Speed 1 to 1/10,000 sec
Gain Auto/Manual/Max. AE Gain Limit (-3 db to +28 dB, 2 dB steps)
White Balance Auto, ATW, Indoor, Outdoor, One-push, Manual
Pan Angle/Speed +/- 170deg.
Tilt Angle/Speed +90deg./-20deg.
Horizontal Viewing Angle 55.8deg. (wide) to 2.1deg. (tele)
Resolution Value 550 TV Lines
Preset Positions 6
Camera Control Interface RS-232C/RS-422, VISCA Protocol
Minimum Illumination 0.65 lx (F1.35, 50 IRE)
S/N Ratio More than 50 dB
Video Output VBS, Y/C
Signal System SD NTSC
Power Requirements DC 12V
Power Consumption 6 W
Operating Temperature 0deg. C to 40deg. C (32deg. F to 104deg. F)
Storage Temperature -20deg. C to 60deg. C (-4deg. F to 140deg. F)
Dimensions (WxHxD) 145x164x164 mm (5.70x6.5x6.5")
Weight 1460g (51.50 oz)
