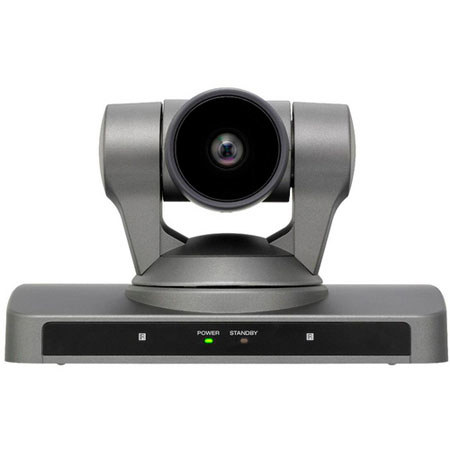

Sony EVI-HD7V 1080p HD Pan / Tilt / Zoom Camera with 10x Digital Zoom, 40x Optical Zoom

Buy together and save
Save up to $30.00 with bundle.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$3,299.00 List Price

Our Price

Free Shipping
Add to Wishlist In Stock

About the Sony EVI-HD7V

The EVIHD7V, a 1080i High Definition Pan/Tilt/Zoom camera delivers intricately detailed and vivid images, enhancing your video conferencing or training meeting with true-to-life images of participants. The EVIHD7V is equipped with a DVI-I interface designed to maximize high video quality displays and is capable of displaying both digital and analog signals (output is selectable from Y/Pb/Pr and RGB). The EVIHD7V utilizes a direct drive motor mechanism for achieving high-speed, quiet and smooth P/T/Z operations. The camera covers a wide shooting range, with a pan angle of -100 to +100 deg., with a max pan speed of 300°/s, tilt angle of -25 to +25 deg., with a max tilt speed of 125 deg./s.

Sony EVI-HD7V Includes

  • Sony EVI-HD7V 1080p HD Pan / Tilt / Zoom Camera
  • AC Adapter
  • IR Remote Control
  • Sony 1 Year Warranty

Sony EVI-HD7V Features

  • Superb Picture Quality: The EVI-HD7V employs a 1/3" HD CMOS delivering highly detailed and vivid images, transforming the video experience
  • Multi-Format Video Outputs Including Full HD: The EVI-HD7V provides full HD at up to 1080/60p, the first in the Sony EVI range to support this format. Depending on your application and infrastructure possibilities the EVI-HD7V has the flexibility, providing 10 selectable HD video output options
  • High Quality Image Transmission: The EVI-HD7V is equipped with a DVI-D interface that is designed to maximize the high video quality of today's digital displays. This digital interface is capable of displaying both digital and analog signals in Y/Pb/Pr and RGB formats
  • Wide-range, Quiet and Quick Pan/Tilt Mechanism: The EVI-HD7V adopts the world-renowned direct drive motor mechanism previously seen in the EVI-HD1. As a result the camera is extremely quiet and moves smoothly and very quickly to desired positions, covering a wide shooting range
  • 10x Optical (40x with Digital Zoom): The EVI-HD7V has a maximum zoom ratio of 40x. The high performance lens supports a fast and stable autofocus capability enabling sharp and intricately featured objects to be captured quickly and clearly
  • Wide Angle of View (70 degrees): The EVI-HD7V incorporates a wide-angle lens for wide field of view image capture, an advantage for small to medium conference rooms
  • RS-232C Remote control (VISCA protocol): All camera settings and pan/tilt/zoom control functions can be performed remotely at high communication speeds via the RS-232C interface VISCA protocol
  • Six-Position Presets: Up to 6 preset values for pan/tilt/zoom, focus position, exposure mode and white balance mode can be stored in the camera. The camera can retain these presets even when switched off
  • Customizable Settings using IR Remote Commander Unit: Users are able to adjust various camera settings using the IR Remote Commander Unit (supplied). The IR Remote Commander provides additional flexibility of operation and camera positioning without compromising control

Sony EVI-HD7V Specifications

Image Sensor 1/3" Color CMOS
Number of Pixels Approximately 2M effective pixels
Resolution 1080p/59.94, 1080p/50, 1080i/59.94, 1080i/50, 1080p/29.97, 1080p/25, 720p/59.94, 720p/50, 720p/29.97, 720p/25, 640 x 480p/59.94 (VGA)
Lens Focal Length: 3.4-33.9mm( F1.8-F2.1)
Zoom: 10x optical, 40x digital
Focus: Auto/Manual
MOD: 100mm (wide)
Horizontal Viewing Angle: 8-70 deg. (T/W) at HD
Iris Operation Auto/Manual
Minimum Illumination 15 Lux (F1.8, 50 IRE)
Signal to Noise Ratio 50dB
Pan Angle ±100 deg.
Pan Speed 300 deg. per second
Tilt Angle ±25 deg.
Tilt Speed 125deg.per second
Preset Positions 6
Microphone No
Picture Control Shutter Speed (1/60-1/10,000 sec)
White Balance (auto/indoor/ outdoor/one-push auto/manual)
Gain (auto/manual)
BLC (auto/manual)
Video Output DVI-I (Digital and Analog)
Audio Output No
Motion Detection No
Sync System Tri Level Sync / VD-OUT
Control Port RS-232C (8-Pin mini DIN)
Communication Protocol VISCA
Alarm I/O No
Operating Temperature 32 - 104 deg. F (0 - 40 deg. C)
Power Requirements 12VDC
Power Consumption 26W
Dimensions (W x H x D) 9.8 x 6 x 5.2in / 250 x 152 x 132mm
Weight 3.3lbs / 1.5kg
