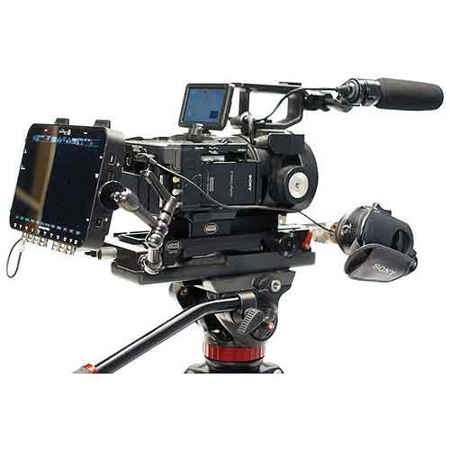

About the Sony NEX-FS700R/Odyssey7Q

Sony has created this special kit to allow shooters to get the maximum picture quality and recording flexibility from the NEX-FS700R camera. When paring the NEX-FS700R with the Convergent Design Odyssey7Q monitor/recorder, the integration makes for a now powerful complete camera system. The FS700R can capture stunning 4K RAW movie footage or 2K RAW with the AXS-R5 RAW recorder over 3G HD-SDI using the HXR-IFR5 interface unit. It can can also capture 4K RAW at High Frame Rate (HFR) of 100 frames per second (fps) or 120 fps for approximately 4 seconds and 2K RAW at 100 fps, 120 fps, 200 fps or 240 fps continuous recording, with the only limitation of memory capacity and/or battery life.

Sony NEX-FS700R/Odyssey7Q Includes

  • Sony NEX-FS700R Camera (body only)
  • 1X Odyssey7Q RAW Monitor/Recorder
  • 1x FS700 RAW Option
  • 2x 256GB 2.5" SSDs
  • 1x Sony L Battery Plate
  • 1x USB 3 to SSD (SATA 2.0) Adapter
  • 1x BNC Cable
  • 1x Fast Dual Charger with a NPF970
  • 1x L-series Info-Lithium Battery
  • 1x VOCAS Rig including NOGA arm and accessories for NEXFS700R System
  • 1x LCFS700/7QCZ Hard Case
  • Sony Warranty

Sony NEX-FS700R/Odyssey7Q Features

  • 12-bit 4K RAW up 60fps, 2K RAW up to 240fps plus 10bit 4:2:2 Apple ProRes HQ up to 30fps recording
  • Four Cine Gamma and S-Log supported by major post production applications

Sony NEX-FS700R/Odyssey7Q Specifications

PS Yes, 1920x1080 60P (59.97P)
Audio Recording Modes 16-bit 48KHz LPCM or Dolby Digital Stereo 48KHz
Video Signal S-Gamut RAWNTSC color
EIA standards HDTV 1080/60i, 1080/60p, 720/60p specification
PAL color, CCIR standards HDTV 1080/50i, 1080/50p, 720/50p specification
Built-in Optical Filters Clear
1/4 = ND 0.6 (2 stops)
1/16 = ND 1.2 (4 stops)
1/64 = ND 1.8 (6 stops)
Gain Selection 0dB
Minimum Illumination 1.2 lx (lux) with Shutter Speed 1/24 auto gain control, auto iris (when selecting [60i])
1.5 lx (lux) with Shutter Speed 1/25, auto gain control, auto iris (when selecting [50i])
Optical System Single Super35mm size sensor
Pickup Device "Exmor" Super35 CMOS Sensor
Shutter Speed (Time) Auto: 1/60-1/2000, 30p: 1/30-1/2000, 24p: 1/48-1/2400
Manual: 60i/30p/60p: 1/3 - 1/10000, 24p: 1/3 - 1/10000
Slow & Quick Motion Function 60Hz System: REC. Frame rates: 1080/60p, 1080/30p, 1080/24pCamera capture: 960fps, 480fps, 240fps, 120fps, 60fps, 30fps, 15fps, 8fps, 4fps, 2fps, 1fps
50Hz System: REC. Frame rates: 1080/50p, 1080/25pCamera capture: 800fps, 400fps, 200fps, 100fps, 50fps, 25fps, 12fps, 6fps, 3fps, 2fps, 1fps
Continuous Operating Time Approx. 510 min (NP-F970: fully charged battery.)
Recording Frame Rate NTSC Mode1 2K 12-bit RAW 2048x1080 up to 240fps (to Odyssey7Q)
4K 12-bit RAW 4096x2048 up to 60fps (to Odyssey7Q)
HD Apple ProRes HQ, 10-bit 4:2:2 1920x1080 up to 30fps
1080 progressive
HD PS (28Mbps) 1920x1080 60p
HD FX (24Mbps) 1920x1080 30p
HD FH (17Mbps) 1920x1080 30p
HD FX (24Mbps) 1920x1080 24p
HD FH (17Mbps),1920x1080 24p
Recording Frame Rate NTSC Mode2 1080 interlaced
HD FX (24Mbps) 1920x1080 60i
HD FH (17Mbps) 1920x1080 60i
HD HQ (9Mbps) 1440x1080 60i
HD LP (5Mbps) 1440x1080 60i
720 progressive
HD FX (24Mbps), 1280x720 60p
HD FH (17Mbps) 1280x720 60p
Standard Definition (NTSC)
SD HQ (9Mbps) 720x480/60i (30p Scan)
SD HQ (9Mbps), 720x480/60i (24p Scan)
Recording Media Two 256GB SSD included with Odyssey7Q
SD/SDHC/SDXC Memory Card
Memory Stick PRO Duo Mark2
Memory Stick PRO-HG Duo
Memory Stick PRO-HG Duo HX
Storage Temperature 4 deg. F to +140 deg. F (-15.55 deg. C to +60 deg. C)
Video Recording Format HD Apple ProRes HQ, 10-bit 4:2:2 derived from 4K RAW, up to 30fps
4K 12-bit linear RAW to Odyssey7Q (up to 60fps)
2K 12-bit linear RAW to Odyssey7Q (up to 240fps)
HD: HD MPEG-4 AVCHD format compatible +1080/60p original format)
SD: MPEG-2 PS (Same as DVD)
Audio In XLR 3-pin (female) (x 2), LINE/MIC/MIC with selectable attenuation and +48V phantom power
Audio Out 2 RCA L&R
Component Out HDMI 1.4RCA Type (x 3) via Mini-D jack
Composite Video Out RCA Type (x 1)
Digital Audio/Video Output(s) 3G SDI OUT with embedded audio plus HDMI 1.4
Earphone 3.5mm Stereo
Lens Connector E-Mount Hot Shoe
MIC In Two 3-Pin XLR with selectable attenuation and phantom power
Remote YES
SDI In LANC type 2.5mm
TC Out HDMI 1.4/ 3G HDSDI (embedded SMPTE TC Out)
Test Out Via HDMI 1.4
USB mini-AB/Hi-Speed (x 1)
Lens Mount Sony E-Mount
