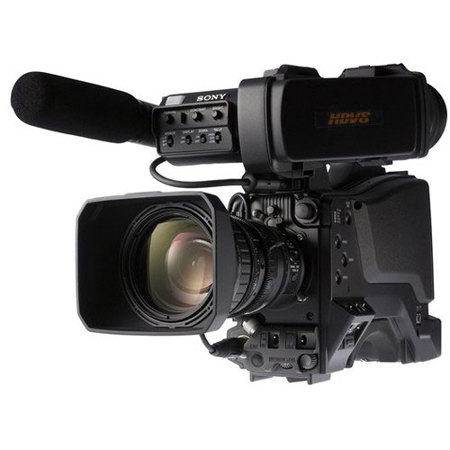

Sony HXCD70K SD/HD Camera Head with Full HD 2/3" Exmor CMOS Sensors, 3.5" Viewfinder, 16x Lens, Microphone

Sony
SKU: SOHXCD70K MFR: HXCD70K

Protect Your Investment:

Add a Protection Plan
  • Add a protection plan
  • New Leaf 2 Year Extended Warranty + $404.95
  • New Leaf 2 Year Drops & Spills Extra Protection + $567.95
  • New Leaf 3 Year Extended Warranty + $569.95
  • New Leaf 3 Year Drops & Spills Extra Protection + $839.95
  • New Leaf 5 Year Extended Warranty + $839.95
  • New Leaf 5 Year Drops & Spills Extra Protection + $1249.95

Our Price

$19,550.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

Take Note

Financing Available: As low as 0% Financing for 12 months.
For more info Please email us at sony@adorama.com

Special Offers

About Sony HXCD70K

The Sony HXCD70K is a high-performance HD camera that inherits field-proven operability from the highly regarded DXC-D Series of system cameras. The camera is equipped with the latest digital HD multi-core technology that integrates perfectly with the HXCU-D70 HD multicore camera control unit (CCU). Furthermore, the existing CCU-D50 CCU can also be used with the HXCD70K for migration from SD to HD live production.

Sony HXCD70K Features

  • Full HDExmor CMOS sensors: The HXC-D70K features three 2/3-inch Exmor CMOS sensors to produce excellent HD pictures
  • Records variety of HD images: The HXC-D70K produces a variety of selectable progressive and interlace HD signal formats, including 1080/50i and 720/50P
  • SD down-converter: The HXC-D70K produces superb Standard Definition picture quality with its wide-band down-converter
  • Single multicore cable connection to CCU: The HXC-D70K requires one Sony standard multicore cable connection to operate with the HXCU-D70 or CCU-D50 CCU
  • Wide range of image control functions: The system camera is full of creative image control functions such as MultiMatrix, Skin Tone Detail, Low Key Saturation, KneeSaturation and Auto Lens Aberration Compensation(ALAC)
  • Operational functions with supplied lens: The HXC-D70K camera features versatile operational functions such as the 2x Digital Extender function and Auto Focus function with the supplied 16x Fujinon lens
  • Digital HD viewfinder: The HXC-D70K camera is supplied with the CBK-VF01 3.5-inch color LCD monocular viewfinder, offering better and easier focusing

Sony HXCD70K Specifications

Built-In Optical Filters
ND filters:1: CLEAR, 2: 1/4ND, 3: 1/16ND, 4: 1/64ND
Dynamic Range
600%
Effective Picture Elements
1920 x 1080
Gain Selection
-3,0,+3,+6,+9,+12db
Horizontal Resolution
1000 TV lines or more (in 1920 x 1080i mode) 920 TV lines (in SD mode)
Lens Mount
Standard 2/3" B4 Bayonett mount
Optical System
F1.4 Prism system
Pickup Device
3-chip 2/3-inch type Exmor Full-HD CMOS
S/N Ratio
HD 59db, SD 65db (Y=Typical)
Sensitivity
F12 (typical) (1920 x 1080/59.94i mode), F13 (typical) (1920 x 1080/50i mode) (at 2000 lx, 3200 K, 89.9% reflectance)
Shutter Speed
1/100, 1/125, 1/250, 1/500, 1/1000, 1/2000
Application
Studio/Field operation
Format
1920 x 1080/59.94i, 50i 1280 x 720/59.94P, 50P"
Imager
2/3-inch type Exmor Full-HD CMOS
Input/Output Connectors: CCU
26 MULTI PIN CONNECTER(CCZA/CCZAD cable connecter)
Input/Output Connectors: Intercom
XLR 5-pin, female (x1)
Input/Output Connectors: Lens
12-Pin(x1)
Input/Output Connectors: Prompter
BNC (x1), 1 Vp-p, 75 ohm
Input/Output Connectors: Remote
8-pin (x1)
Input/Output Connectors: Viewfinder
Digital interface (x1) and DXF type analog interface (x1)
Inputs and Outputs: Audio In
XLR 3-pin (x2, at front panel and rear panel)
Inputs and Outputs: DC In
XLR 4-pin (x1)
Inputs and Outputs: DC Out
4-pin (x1)
Inputs and Outputs: Earphone
Mini-jack 3-pin (x1)
Inputs and Outputs: Genlock In
BNC (x1), 1 Vp-p, 75 ohm
Inputs and Outputs: HD-SDI Out
BNC (x1) (Dual Link)
Inputs and Outputs: Lens
12-Pin(x1)
Inputs and Outputs: MIC In
XLR 3-pin (x2, at front panel and rear panel)
Inputs and Outputs: Memory Stick
Memory Stick DUO
Inputs and Outputs: Remote
8-pin (x1)
Inputs and Outputs: SDI In
BNC (x1)
Inputs and Outputs: Test Out
BNC (x1)
Inputs and Outputs: Video Out
Test out/SDI OUT
Operating Temperature
-10 deg.C to +45 deg.C (14 deg.F to 113 deg.F)
Power Consumption
Approx. 1.92 A/12v Main unit (camera) + LCD viewfinder + auto focus lens + microphone"
Power Requirements
12 V DC (10.5 V to 17.0 V)
Storage Temperature
-20deg.C to +60deg.C (-4deg.F to 140deg.F)
Dimensions (W x H x D)
144 x 314 x 223 mm / 5.75 x 12.37 x 8.87 inches
Weight
Main body only: 3.4 kg (7 lb 7.9 oz)
