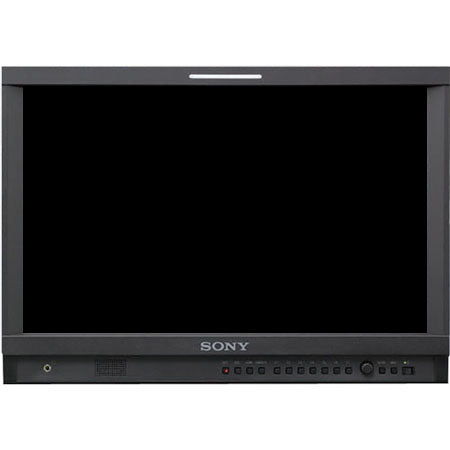

Sony LMD1541W 15" Wide Screen High Grade LCD Monitor, 1280x768 Resolution, 15:9 Aspect Ratio

Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$1,295.00 $51 per week
Add to Wishlist In Stock

About the Sony LMD1541W

The LMD-1541W 15" Wide Screen High-Grade LCD Monitor belongs to Sony's LUMA series of high-performance displays, offering an outstanding 1280 x 768 image with bright, accurate colors, high contrast and ultra-wide viewing angles. With its slim, lightweight body and bezel it's ideal for monitor-wall installation in both OB vans and studios.

The In-Monitor Display (IMD) functions, advanced marker settings and variety of analog and digital inputs provide a high degree of flexibility to suit a range of applications. Meanwhile the color accuracy afforded by Sony's ChromaTRU technology and White Balance Calibration makes color matching between monitors easier and more precise--especially important when tiling multiple displays.

Sony LMD1541W Includes

  • Sony LMD1541W 15Inch Wide Screen High Grade LCD Monitor
  • AC Power Cord
  • AC Plug Holder
  • CD-ROM
  • Sony 3 Year Warranty

Sony LMD1541W Features

  • Slim Bezel: Ideal for Monitor Walls Slim bezels of robust aluminum and compact chassis make this monitor perfect for monitor walls in studio control rooms and OB vans
  • Efficient Controls: Operation is easy with a rotary switch and seven assignable buttons. LED indicators for the buttons enable error-free operation, even in dark environments. The LEDs can be switched off for minimum distraction
  • In-monitor Display (IMD): This monitor supports the TSL UMD protocol for on-screen display of two tally lamps plus dynamic text information received via Ethernet. The monitor can display up to 16 Unicode characters, including Roman letters, numbers, symbolic codes and Japanese letters
  • Ideal CRT Replacement: The LMD-1541W is close to a drop-in replacement for Sony's most popular 14" CRT monitor, the PVM-14L2. The LMD-1541W is 3" (7.5mm) lower and only 1.1" (2.7mm) wider, with almost identical viewable area height
  • NLE and Office Viewing: The monitor serves editing and office viewing with optional stands, the SU-561 and SU-562
  • Waveform Monitor, Audio Level Meter & Timecode Display: On-screen displays include video waveform plus two-channel audio-level meter. For SDI sources, there's a choice of LTC or VITC timecode and the option to display an eight-channel level meter for SDI-embedded audio
  • Remote Control Options: Control up to 32 monitors and up to four control units via Ethernet connection. You can remotely select inputs and outputs and adjust a wide range of settings. You're free to adjust individual monitors, groups of monitors or all connected monitors simultaneously
  • ChromaTRU Consistency, AWB Calibration: LCD panels can vary from unit to unit, a serious concern in professional environments. Sony solves the issue with ChromaTRU color processing, which operates at 10-bit precision
  • Advanced Marker Settings: For framing reference, the monitor can display a center marker, aspect markers and safety zone markers
  • Scan Mode Selection: You can select Normal, 5% Over scan, Full scan and Native scan modes, depending on the signal format. You can also switch the aspect ratio between 16:9 and 4:3 according to the input signal
  • Input Versatility: The LMD-1541W is equipped with a built-in interface including two SDI (3G/HD/SD-SDI), one composite and one HDMI input

Sony LMD1541W Specifications

Screen Type a-Si TFT Active Matrix LCD
Screen Size 15"
Resolution 1280 x 768 pixels (WXGA)
Effective picture size (H x W) 334.1 x 200.5 mm (13-1/4 x 8 inches)
388.6 mm (15 3/8 inches)
Aspect Ratio 15:9
Colors Approx. 16.7 million colors
Viewing angle 89deg./89deg./89deg./89deg. (typical) (up/down/left/right contrast>10:1)
Composite BNC (x1), 1.0 Vp-p ±3dB sync negative
SDI BNC (x2)
Input Audio Stereo mini jack (x1), -5 dBu 47 kilohms or higher
Parallel remote Modular connector 8-pin (x1) (pin-assignable)
Serial remote RJ-45 modular connector (Ethernet) (x1) (10BASE-T/100BASE-TX)
DC in DC 12 V (output impedance 0.05 ohms or less)
Composite BNC (x1), Loop-through, with 75 ohms automatic termination
Output SDI BNC (x1), Output signal amplitude: 800 mVp-p ±10%
Output impedance: 75 ohms unbalanced
Audio monitor out Stereo mini jack (x1)
Speaker (built-in) 0.5 W (mono)
Headphones output Stereo mini jack (x1)
Power requirements AC 100 V to 240 V, 50/60 Hz, 0.8 A to 0.4 A, DC 12 V 3.4 A
Power consumption Maximum approx. 50 W
Operating temperature 0deg.C to 35deg.C (32deg.F to 95deg.F), Recommended: 20deg.C to 30deg.C (68deg.F to 86deg.F)
Operating humidity 30% to 85% (no condensation)
Storage and transport temperature -20deg.C to +60deg.C (-4deg.F to +140deg.F)
Storage and transport humidity 0% to 90%
Operating, storage/transport pressure 700 hPa to 1060 hPa
Dimensions (W x H x D) 14.6 x 10.5 x 2.8" (37.2 x 26.6 x 7 cm)
Weight 11.2 lbs (5.1kg)
