Sony

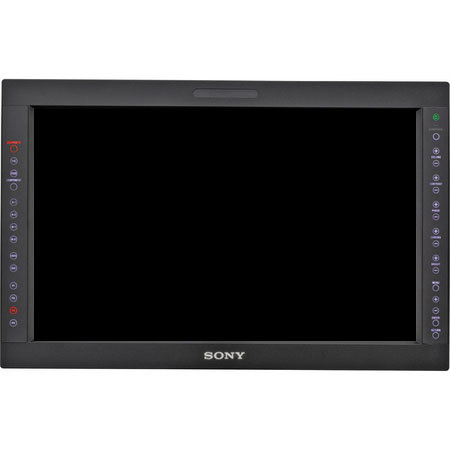

Sony LMD-1751W 17" High Grade Multi-Format LCD Monitor, 1280x768 Resolution, 15:9 Aspect Ratio

SKU: SOLMD1751W MFR: LMD1751W
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$1,695.00
Free Shipping
Qty:

Add to Wishlist In Stock

About the Sony LMD-1751W

The Sony LMD-1751W 17" High Grade Multi-Format LCD Monitor is designed to dazzle. Not content to simply offer an outstanding 1280 x 768 image with bright, accurate colors, high contrast and ultra-wide viewing angles, the LMD-1751W does so in your choice of format, environment and application. The wide range of analog and digital inputs let this monitor shine in both AV and IT applications, while the variety of compatible HD and SD video formats, already impressive, can be expanded even further with the addition of optional input boards.

The modularity of the LMD-1751W is one of its key attributes, allowing it to be used in everything from broadcast and post-production environments to corporate and retail display. The color accuracy afforded by its ChromaTRU technology makes color matching between monitors far easier when tiling displays, while the 10-bit digital processing provides the smooth color transitions that allow every subtlety of the image to come through. The monitor can also be powered by AC or DC, so it can be used both indoors and out.

Sony LMD-1751W Includes

  • Sony LMD-1751W 17 inch High Grade Multi-Format LCD Monitor
  • AC Power Cord
  • AC Plug Holder
  • CD-ROM
  • Sony 3 Year Warranty

Sony LMD-1751W Features

  • High Resolution 1280x768 WXGA LCD Panel: Delivers outstandingly crisp, high-brightness and high-contrast images
  • Extremely Wide Viewing Angle: Class-leading horizontal and vertical viewing angle--ideal for group viewing
  • High Purity Color Filters: The LMD-1751W uses precisely manufactured RGB color filters, allowing the reproduction of colors with stunning depth and saturation to create highly natural images
  • Selectable Color Temperature: Color temperatures of 9300k, 6500k, or a user preset value can be selected
  • Accurate and Repeatable Color Reproduction: ChromaTRU technology ensures close CRT color accuracy and gamma matching throughout the product's life and delivers consistent color temperature across the entire grayscale range
  • 10-bit Picture Processing: Delivers smooth color and grayscale transitions for high-quality video production
  • Sophisticated I/P Conversion: The LMD-1751W monitor uses a motion-adaptive I/P-conversion process to achieve conversion results that are optimized to the picture content--whether it is static or dynamic. Highly accurate I/P conversion is provided regardless of signal resolution
  • Multi-Format Signal Support - Up to 3G SDI Input: The monitor can accept almost any SD or HD video format, both analog and digital
  • 3G SDI Input: The LMD-1751W has a 3G SDI input capability with the optional BKM-250TG plug-in adapter
  • Computer Input Frequencies: The LMD-1751W monitor is factory preset to accept 32 typical computer input signal frequencies
  • Signal Interface Options: The monitor can accept up to two optional video boards for additional video analog or digital inputs (HD/SD/3G SDI). Note that the LMD-1751W is compatible with current decoder boards
  • Video Waveform & Audio Level Meter: A combined video waveform and audio level meter is available on the on-screen display of the monitor
  • Picture-In-Picture Mode: Side by side or Picture-in-Picture (PiP) mode allows users to check two images on the same screen. Combination of video and computer images side by side is also available
  • Selectable Scan Size & Aspect Ratio: Overscan and normal scan, as well as full scan, are available, while aspect ratio can be switched between 16:9 and 4:3
  • Advanced Video Markers: The LMD-1751W monitor can display various area markers, including a center marker, aspect markers and a safety zone marker
  • Three Color Tally: The LMD-1751W comes equipped with a tally lamp that can be lit via a parallel remote connector. The status of the signal displayed on the monitor can be identified by the tally color--red, green, or amber
  • Selectable Scan Size & Aspect Ratio: The scan size can be selected between 5% overscan and 0% scan modes. The aspect ratio can be switched between 16:9 and 4:3 according to the input signal
  • Smart APA (Auto Pixel Alignment) for Computer Input: The image size can be automatically adjusted to its optimal setting with the one-touch APA key
  • Remote Control Options: Three connection methods are available: parallel 8-pin, serial RJ45 Ethernet and serial RS232C links. The parallel connection allows up to 38 functions to be remotely controlled
  • Centralized Monitor-Wall Control: Centralized wall control of the monitor is possible via the serial RJ45 Ethernet connector using an optional BKM-16R control unit
  • Stereo Audio Monitoring: The LMD-1751W is equipped with stereo speakers. Up to 16 embedded digital audio channels can be decoded and routed to the speakers. Analog audio inputs are also catered for
  • Smart Function Key Lighting: The key lighting contributes to the elegant design and enhances user functionality. And to increase flexibility, the lighting can be switched off to eliminate any visual disturbance when multiple displays are employed for tiling purposes
  • Protected Controls: A key-inhibit switch prevents inadvertent operation from the control panel
  • VESA Mounting Standard: Table, wall or ceiling mounting

Sony LMD-1751W Specifications

Screen Type a-Si TFT Active Matrix LCD
Panel size (diagonal) 17-inch/43.18 cm
Resolution (pixels) 1280 x 768
Picture Size (H x W) (Viewable area) Approx. 369.6 x 221.8 mm
(Approx. 14-5/8 x 8-3/4 inches)
Approx. 431.1 mm (17 inches)
Aspect Ratio 15:9
Colors Approx 16,770,000 colors
Viewing Angle 85deg./85deg./85deg./85deg. (typical) (up/down/left/right contrast>10:1)
Composite BNC (x1), 1.0 Vp-p ±3dB sync negative
Y/C Mini DIN 4-pin (x1)
Y: 1.0 Vp-p ± 3dB sync negative
C: 0.286 Vp-p ± 3dB (NTSC burst signal level), 0.3 Vp-p ± 3dB (PAL burst signal level)
RGB, Component BNC (x3)
RGB: 0.7 Vp-p ± 3dB (Sync On Green, 0.3 Vp-p sync negative)
Component: 0.7 Vp-p ± 3dB (75% chrominance standard color bar signal)
External Sync BNC (x1)
0.3 to 4.0 Vp-p ± bipolarity ternary or negative polarity binary
Input Audio Phono jack (x2) (L, R) -5 dBu 47 kilo ohms or higher
Input HD15 D-sub 15-pin (x1), R/G/B: 0.7 Vp-p sync positive (Sync On Green, 0.3 Vp-p sync negative)
Sync: Total level (polarity free, H/V separate and composite sync)
Plug & Play function: corresponds to DDC-2B
Input DVI-D TMDS single link

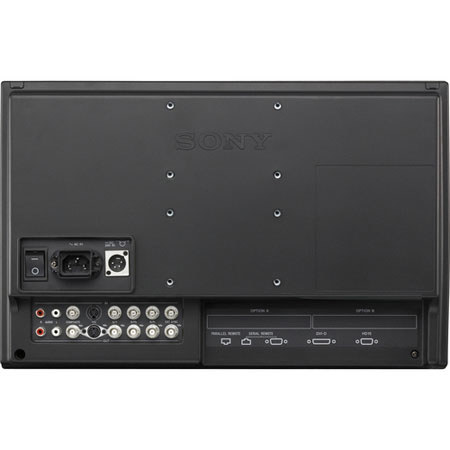

Parallel remote Modular connector 8-pin (x1) (pin assignment at users' allocation)
Serial remote (LAN) D-sub 9-pin (RS-232C) (x1), RJ-45 modular connector (ETHERNET) (x1) (10BASE-T/100BASE-TX)
DC in XLR type 4-pin (x1) DC 12 V (output impedance 0.05 ohms or less)
Optional input slot 2 slots (for HD-SDI, SDI capability and extra analogue I/O's)
Output Composite BNC (x1), Loop-through, with 75 ohms automatic termination
Output Y/C Mini DIN 4-pin (x1) Loop-through, with 75 ohms automatic termination
Output RGB, Component BNC (x3), Loop-through, with 75 ohms automatic termination
Output External Sync BNC (x1), Loop-through, with 75 ohms automatic termination
Audio monitor out Phono jack (x2) (L, R)
Output Speaker (Built-in) 1 W + 1 W (stereo)
Power Requirement AC 100 V to 240 V 50/60 Hz 0.8A to 0.4 A, DC 12 V, 5.7 A
Power Consumption Maximum Approx. 77 W (with 2 x BKM-229X)
Operating Temperature 0deg.C to 35deg.C (32deg.F to 95deg.F)
Recommended Operation Temperature 20deg.C to 30deg.C (68deg.F to 86deg.F)
Operating Humidity 30% to 85% (No condensation)
Storage & Transport Temperature -20deg.C to +60deg.C (-4deg.F to +140deg.F)
Storage & Transport Humidity 0% to 90%
Operating/Storage/Trans. Pressure 700 hPa to 1060 hPa
Dimensions (W x H x D) 17.4 x 11.3 x 4.3" (43.9 x 28.4 x 10.5 cm)
Weight 13.9 lbs (6.3kg)
