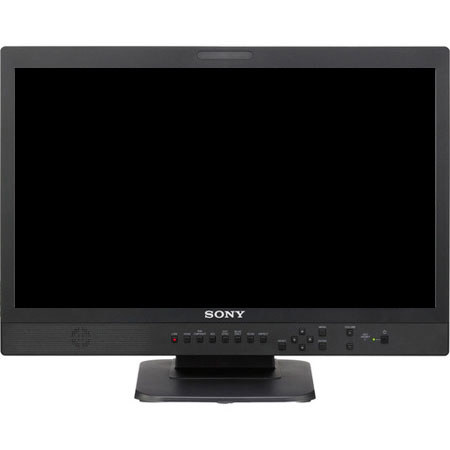

Sony LMD-2110W 21.5" Professional LCD Monitor, 1920x1080 Resolution, 16:9 Aspect Ratio

Sony
SKU: SOLMD2110W MFR: LMD2110W
Sony LMD-2110W: Picture 1 thumbnail Sony LMD-2110W: Picture 2 thumbnail

List Price: $1,199.00

29% Off

Our Price

$849.95
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

Take Note

Financing Available: As low as 0% Financing for 12 months.
For more info Please email us at sony@adorama.com

Ways To Save up to $42.50

Special Offers

About Sony LMD-2110W

The Sony LMD-2110W is a 21.5" professional LCD monitor that's capable of tackling a wide range of viewing scenarios. As a cost-effective, entry level unit, this multi-format display is ideal for industry professionals interested in achieving CRT-level performance without giving up the space-saving benefits of a flat panel screen. Equipped with a wide array of video inputs, the LMD-2110W provides both analog and digital connectivity unparalleled in its price range. Inputs such as component, composite and HDMI ensure the panel will perform in almost any SD or HD environment.

At the same time, its combination of RGB color filters and 10-bit signal processing provide stunning images with bright whites, saturated colors and a smooth, CRT-like gamma. Add in a VESA standard mount with 100mm pattern--for simple wall installation--and you've got a pro monitor that will be right at home in a range of HD applications, including entry-level video editing, surveillance and studio monitoring.

Sony LMD-2110W Features

  • Full HD-resolution (1920 x 1080) LCD panel: Delivers outstandingly crisp, high brightness and high contrast widescreen HD images with a fast transient response
  • High-purity Color Filter: The LMD-2110W monitor provides high-brightness, high-contrast images thanks to its wide aperture LCD panel. In addition, use of precisely manufactured RGB color filter allows monitor to reproduce colors with stunning depth and saturation creating highly natural images
  • 109% Peak White and 10-bit Signal Processing: Incorporating high-purity RGB color filter and a 10-bit signal processing engine, the LMD-2110W monitor offers stunning 109% peak white reproduction without clipping and a smooth grey scale along CRT-like gamma
  • Minimized Picture Delay: Picture delay can be minimized for audio synchronization. Selecting LINE DOUBLER in I/P mode, the signal processing (I/P conversion) period is less than one field (0.5 frames)
  • Input Versatility: The LMD-2110W is equipped with a full range of analogue SD inputs including composite NTSC/PAL, Y/C (S-Video), 525i/625i component and RGB. This monitor can also handle SD-SDI input using an optional BKM-320D SD-SDI input Adapter
  • MultiFormat Signal Support: Includes NTSC, PAL, component, RGB, Y/C, 480/60i, 575/50i, 480/60p, 576/50p, 1080/50i, 1080/60i, 720/50p, 720/60p, 1080/24psf, 1080/25psf, 1080/24p, 1080/25p and 1080/30p. The LMD-2110W also accepts standard definition digital signals with an optional SD-SDI input Adapter
  • HDMI input for High Definition Display: Increasingly an interface of choice for entry-level production
  • Color Temperature Adjustment: D65, D93 or user presets can be selected
  • CRT-like Gamma Curve: For accurate grayscale performance
  • Selectable Scan Size and Aspect Ratio: Normal scan (0%), Over-scan (5%) and Full scan is available. Also, aspect ratio can be switched between 16:9 and 4:3
  • Three Color Tally: The tally lamp can be lit via a parallel remote connector and status identified by three colors: red, green or amber
  • Video Markers: Equipped with a central marker plus 4:3 and 16:9 markers for Over-scan and Normal-scan display
  • Blue Only Mode: In the blue only mode, a monochrome display is shown. This mode is convenient for chroma and phase adjustments and monitoring of signal noise
  • Remote Control: Via a programmable parallel remote interface
  • Mono Audio Monitoring: The LMD-2110W is equipped with a mono speaker
  • VESA Mounting (100x100mm): Desktop or simple wall / ceiling mounting
  • 19-inch Rack Mountable kit With optional MB-529 fixing kit
  • External Sync The unit can be operated on the sync signal supplied from an external sync generator

Sony LMD-2110W Specifications

Picture Type
a-Si TFT Active Matrix LCD
Resolution
1920 x 1080 pixels
Effective picture size (H x W)
477 x 268 mm (18-7/8 x 10-5/8 inches), 547 mm (21-5/8 inches)
Aspect Ratio
16:9
Colors
Approx. 16.7 million colors
Viewing angle
170deg./160deg. (typical) (horizontal/vertical contrast>10:1)
Input Composite
BNC (x1), 1.0 Vp-p ±3dB sync negative
Input Y/C
Mini DIN 4-pin (x1)
Y: 1.0 Vp-p ±3dB sync negative,
C: 0.286 Vp-p ±3dB (NTSC burst signal level),
0.3 Vp-p ±3dB (PAL burst signal level)
Input RGB, Component
BNC (x3)
RGB: 0.7 Vp-p ±3dB (sync on green, 0.3 Vp-p sync negative)
Component: 0.7 Vp-p ±3dB (75% chrominance standard color bar signal)
Input HDMI
HDMI (x1)
Input Audio
Phono jack (x2), -5 dBu 47 kilohms or higher
OPTION AUDIO IN: Phono jack (x1), -5 dBu 47 kilohms or higher
Input External sync
BNC (x1), 0.3 Vp-p to 4 Vp-p negative polarity binary
Input Option in connector
D-sub 9-pin (x1), female
Parallel remote
Modular connector 8-pin (x1) (pin-assignable)
Output Composite
BNC (x1), loop-through, with 75 ohms automatic termination
Output Y/C
Mini DIN 4-pin (x1) loop-through, with 75 ohms automatic termination
Output RGB, Component
BNC (x3), loop-through, with 75 ohms automatic termination
Output External sync
BNC (x1), loop-through, with 75 ohms automatic termination
Audio monitor out
Phono jack (x2), loop-through
Speaker (built-in)
0.5 W (mono)
Power requirements
AC 100 V to 240 V, 50/60 Hz
Power consumption
Maximum approx. 56 W, 1.0 A to 0.5 A
Operating temperature
0deg.C to 35deg.C (32deg.F to 95deg.F)
Recommended: 20deg.C to 30deg.C (68deg.F to 86deg.F)
Operating humidity
30% to 85% (no condensation)
Storage and transport temperature
-20deg.C to +60deg.C (-4deg.F to +140deg.F)
Storage and transport humidity
0% to 90%
Operating, storage/transport pressure
700 hPa to 1060 hPa
Dimensions (W x H x D)
Without Stand: 20.3 x 14 x 3.4" (51.5 x 35.5 8.6 cm)
With Stand: 20.3 x 15.9 x 10.4" (51.5 x 40.3 x 26.4 cm)
Weight
Without Stand: 15.2 lbs (6.9 kg)
With Stand: 19 lbs (8.6 kg)
