Sony 24" High Grade Multi-Format LCD Monitor with HDSDI Closed Caption Adapter, 1920x1200 WUXGA Resolution


See all shipping options

In Stock & Ready to Ship


Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

About Sony

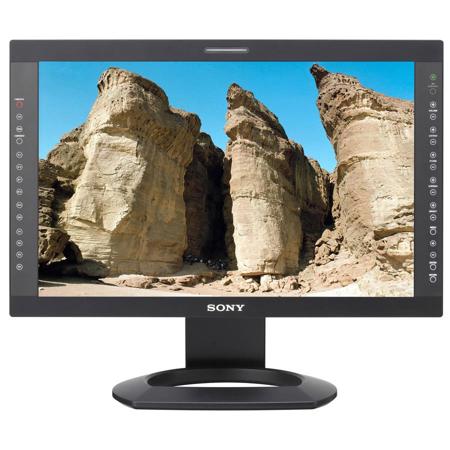

The Sony LMD-2451W 24" High Grade Multi-Format LCD Monitor with BKM-24CC HDSDI Closed Caption Board is designed to dazzle. Not content to simply offer outstanding 1920 x 1200 images with bright, accurate colors, high contrast and ultra-wide viewing angles, the LMD-2451W does so in your choice of format, environment and application.

The wide range of analog and digital inputs let this monitor shine in both AV and IT applications, while the variety of compatible HD and SD video formats, already impressive, can be expanded even further with the addition of optional input boards. The modularity of the LMD-2451W is one of its key attributes, allowing it to be used in everything from broadcast and post-production environments to corporate and retail display.

The color accuracy afforded by its ChromaTRU technology makes color matching between monitors far easier when tiling displays, while the 10-bit digital processing provides the smooth color transitions that allow every subtlety of the image to come through. The monitor can also be powered by AC or DC, so it can be used both indoors and out.

Sony Features

  • High Resolution 1920x1200 (WUXGA) LCD Panel
  • Multi-Format Signal Support up to 1080/60P (when using DVI-D input)
  • Signal-interface options for SD-SDI and HD-SDI signals
  • Accepts 25 factory preset computer signals via HD-15 input
  • High Purity Color Filters
  • Accurate Gamma and Stable White Balance - ChromaTRU color Processing
  • Sophisticated I/P Conversion
  • Excellent Brightness and Contrast
  • Extremely wide 178 degree viewing angle
  • Advanced Marker Settings
  • Color Temperature Selection (9300K, 6500K or user)
  • Selectable Scan Size for Video Input and Aspect Ratio
  • Three-color Tally (Red, Green or Amber)
  • Smart APA (Auto Pixel Alignment) for Computer Input
  • Parallel Remote Control
  • Stereo Audio Monitoring
  • Key-Inhibit Function helps prevent inadvertent operation from the control panel
  • EIA608 Closed-Caption Decoder for close captioning monitoring via composite and component inputs
  • 100mm x 100mm VESA standard allows more flexible mounting solutions
  • Waveform Monitoring built-in
  • Audio-Level metering
  • Picture by Picture mode
  • H/V Delay Function
  • ACC Off
  • DC Operation

Sony Specifications

LCD panel
a-Si TFT Active Matrix
Pixel efficiency
Viewing angle
(up/down/left/right, contrast > 10:1) 89deg./89deg./89deg./89deg. (typical)
Normal 0%
Over scan 5%
Efficient picture size
518.4 x 324.0, 613.2 mm (w/h, dia)
(201/2 x 127/8, 24 inches)
H 1,920 dots, V 1,200 lines
Aspect ratio
Composite input (NTSC/PAL) connector
BNC type (1)
1 Vp-p ± 3 dB sync negative
Y/C input connector
4-pin mini-DIN (1)
Y: 1 Vp-p ± 3 dB sync negative
C: 0.286 Vp-p ± 3 dB (NTSC burst signal level), 0.3 Vp-p ± 3 dB (PAL burst signal level)
RGB/component input connectors
BNC type (3)
RGB input: 0.7 Vp-p ± 3 dB (Sync On Green, 0.3 Vp-p sync negative)
Component input: 0.7 Vp-p ± 3 dB (75% chrominance standard color bar signal)
Audio input connectors
Phono jack (2)
-5 dBu 47 kilohms or higher
External synchronized input connector
BNC type (1)
0.3 to 4.0 V p-p ± bipolarity ternary or negative polarity binary
HD15 input connector
D-sub 15-pin (1)
R/G/B: 0.7 Vp-p, sync positive (Sync On Green, 0.3 Vp-p sync negative)
Sync: TTL level (polarity free, H/V separate sync)
Plug & Play function: corresponds to DDC2B
DVI input connector
DVI-D (1)
TMDS single link
Remote input connector
Parallel remote: Modular connector 8-pin (1)
Serial remote: D-sub 9-pin (RS-232C) (1), RJ-45 modular connector (ETHERNET) (1)
Optional input slot
2 slots
Signal format: H: 15 kHz to 45 kHz, V: 48 Hz to 60 Hz
DC IN connector
DC 24 V (output impedance 0.05 ohms or less)
Composite output connector
BNC type (1)
Loop-through, with 75 ohms automatic terminal function
Y/C output connector
4-pin mini-DIN (1)
Loop-through, with 75 ohms automatic terminal function
RGB/component connectors
BNC type (3)
Loop-through, with 75 ohms automatic terminal function
External synchronized output connector
BNC type (1)
Loop-through, with 75 ohms automatic terminal function
Audio monitor output connectors
Phono jack (2)
Input Module: Compatible
LMD-1750W, LMD-2050W, LMD-2450W, LMD-4250W and BVM-L230
Built-in speaker output
1.0 W + 1.0 W (stereo)
AC 100 V to 240 V, 50/60 Hz, 1.5 A to 0.7 A
DC 24 V, 5.7 A
Peak inrush current
Power ON, current probe method: 23 A (100 V), 56 A (240 V)
Hot switching inrush current, measured in accordance with European standard EN55103-1: 55 A (230 V)
Operating Temperature
0 deg.C to 35 deg.C (32 deg.F to 95 deg.F)
Recommended temperature
20 deg.C to 30 deg.C (68 deg.F to 86 deg.F)
Operating Humidity
30% to 85% (no condensation)
Operating Pressure
700 hPa to 1060 hPa
Storage temperature
-20 deg.C to + 60 deg.C (-4 deg.F to +140 deg.F)
Storage Humidity
0% to 90%
Storage Pressure
700 hPa to 1060 hPa
Dimensions (W x H x D)
602.4 x 497.9 x 269.9 mm / 23.75 x 19.62 x 10.75 inches (including the projection parts)
11.4 kg (25 lb 2 oz)
