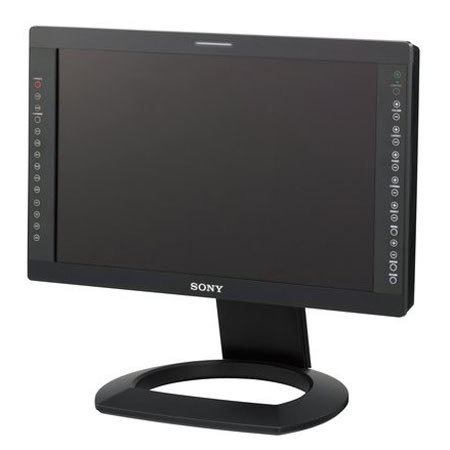

| LCD panel |
a-Si TFT Active Matrix |
| Pixel efficiency |
99.99% |
| Viewing angle |
(up/down/left/right, contrast > 10:1) 89deg./89deg./89deg./89deg. (typical) |
| Scan |
Normal 0%
Over scan 5% |
| Efficient picture size |
518.4 x 324.0, 613.2 mm (w/h, dia)
(201/2 x 127/8, 24 inches) |
| Resolution |
H 1,920 dots, V 1,200 lines |
| Aspect ratio |
16:10 |
| Composite input (NTSC/PAL) connector |
BNC type (1)
1 Vp-p ± 3 dB sync negative |
| Y/C input connector |
4-pin mini-DIN (1)
Y: 1 Vp-p ± 3 dB sync negative
C: 0.286 Vp-p ± 3 dB (NTSC burst signal level), 0.3 Vp-p ± 3 dB (PAL burst signal level) |
| RGB/component input connectors |
BNC type (3)
RGB input: 0.7 Vp-p ± 3 dB (Sync On Green, 0.3 Vp-p sync negative)
Component input: 0.7 Vp-p ± 3 dB (75% chrominance standard color bar signal) |
| Audio input connectors |
Phono jack (2)
-5 dBu 47 kilohms or higher |
| External synchronized input connector |
BNC type (1)
0.3 to 4.0 V p-p ± bipolarity ternary or negative polarity binary |
| HD15 input connector |
D-sub 15-pin (1)
R/G/B: 0.7 Vp-p, sync positive (Sync On Green, 0.3 Vp-p sync negative)
Sync: TTL level (polarity free, H/V separate sync)
Plug & Play function: corresponds to DDC2B |
| DVI input connector |
DVI-D (1)
TMDS single link |
| Remote input connector |
Parallel remote: Modular connector 8-pin (1)
Serial remote: D-sub 9-pin (RS-232C) (1), RJ-45 modular connector (ETHERNET) (1) |
| Optional input slot |
2 slots
Signal format: H: 15 kHz to 45 kHz, V: 48 Hz to 60 Hz |
| DC IN connector |
DC 24 V (output impedance 0.05 ohms or less) |
| Composite output connector |
BNC type (1)
Loop-through, with 75 ohms automatic terminal function |
| Y/C output connector |
4-pin mini-DIN (1)
Loop-through, with 75 ohms automatic terminal function |
| RGB/component connectors |
BNC type (3)
Loop-through, with 75 ohms automatic terminal function |
| External synchronized output connector |
BNC type (1)
Loop-through, with 75 ohms automatic terminal function |
| Audio monitor output connectors |
Phono jack (2) |
| Built-in speaker output |
1.0 W + 1.0 W (stereo) |
| Power |
AC 100 V to 240 V, 50/60 Hz, 1.5 A to 0.7 A
DC 24 V, 5.7 A |
| Peak inrush current |
Power ON, current probe method: 23 A (100 V), 56 A (240 V)
Hot switching inrush current, measured in accordance with European standard EN55103-1: 55 A (230 V) |
| Operating Temperature |
0 deg.C to 35 deg.C (32 deg.F to 95 deg.F) |
| Recommended temperature |
20 deg.C to 30 deg.C (68 deg.F to 86 deg.F) |
| Operating Humidity |
30% to 85% (no condensation) |
| Operating Pressure |
700 hPa to 1060 hPa |
| Storage temperature |
-20 deg.C to + 60 deg.C (-4 deg.F to +140 deg.F) |
| Storage Humidity |
0% to 90% |
| Storage Pressure |
700 hPa to 1060 hPa |
| Dimensions (W x H x D) |
602.4 x 497.9 x 269.9 mm / 23.75 x 19.62 x 10.75 inches (including the projection parts) |
| Weight |
11.4 kg (25 lb 2 oz) |
