Sony

Sony LMD-941W 9" Full HD 1080p LCD Monitor, 16:9 Aspect, 2x 3G/HD/SD-SDI Inputs, Built-In Signal Analyzers, Safe Area Markers & Focus Aid Function

SKU: SOLMD941W MFR: LMD941W
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$2,600.00 List Price

Our Price

$2,079.95 $81 per week
Free Expedited Shipping
Qty:
Add to Wishlist In Stock

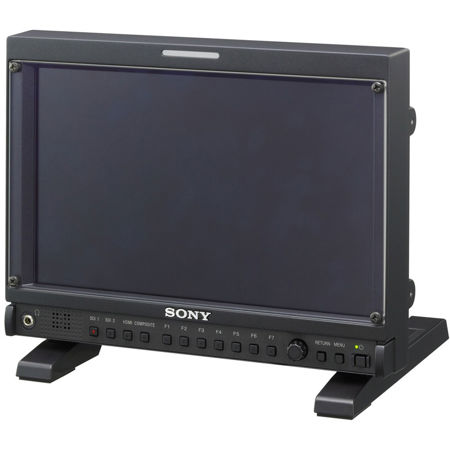

About the Sony LMD-941W

The Sony LMD-941W is a 9" Full HD resolution (1920 x 1080 pixels) high-performance LCD monitor incorporating 10-bit signal processing and Sony's unique ChromaTRU technology to deliver superb picture performance and consistency. It also offers a convenient compact size with the mobility and smart functions required for both indoor and outdoor use. This LMD-941W is ideal for a wide range of professional monitoring applications including use in an editing studio and for outside broadcast, acquisition and field production and much more.

Full HD 1920x1080 Pixels IPS LCD Panel with LED Backlight
The full HD resolution LCD panel delivers crisper images and allows users easier picture evaluation.

Two 3G/HD/SD-SDI Inputs
The LMD-941W is equipped with standard interfaces including 3G/HD/SD-SDI (x2) inputs, composite (x1) and HDMI (x1).

Camera Focus Function
The camera focus function works in various colors to ease camera focus alignment.

Intra-Field I/P Mode
Full HD images via SDI input can be reproduced naturally with process latency of less than one field.

Mobility and Flexibility
The various range of accessory items further increases user flexibility and convenience. The retractable handle allows users to carry this monitor anytime, anywhere and the supplied arm-mount bracket makes it easy to mount this monitor into a camera system.

Waveform Monitor and Vector Scope
The combination of the vector scope and waveform monitor functions allows simple measurement without additional measurement equipment.

Color temperature
Color temperatures of D93, D65, or a USER preset value can be selected.

Auto white adjustment
The LMD-941W monitor employs a software-based color temperature (white balance) calibration function, which is called "Monitor_AutoWhiteAdjustment". Combined with a PC and commercially available calibration tools, this function enables simple adjustment of the monitor's white balance.

Robust, light-weight and compact body
Incorporating a light-weight and compact aluminum diecast body with a detachable AR-coated protection panel, this model is flexible enough to change style according to user requirements: with or without stand (which is easily detachable), tilted on a stand (15-degree slant), rack-mounted, or set on a camera pedestal.

Mounting flexibility
Using the optional MB-531 mounting bracket with a 10-degree-forward and 10-degree-backward nonstop-tilt capability, two units can be installed side by side in a 19-inch EIA standard rack.

Optional ENG kit VF-510
For use in ENG and EFP field, the optional VF-510 ENG Kit provides a viewing hood, carrying handle and connector protector.

AC/DC operations
The LMD-941W can be operated with two-way power supplies - DC 12 V and AC via the attached dedicated AC adaptor.

Sony LMD-941W Includes

  • Sony LMD-941W 9" Full HD LCD Monitor
  • AC Power Cord
  • AC Plug Holder
  • AC Adaptor
  • Handle
  • Arm Mount Bracket
  • 4 x Screws
  • Operating Instructions
  • CD-ROM
  • Using the CD-ROM Manual
  • Sony Warranty

Sony LMD-941W Specifications

Panel a-Si TFT Active Matrix LCD
Picture size (diagonal) 227mm / 9"
Effective picture size (H x V) 198.7 x 111.8mm / 7.82 x 4.40"
Resolution (H x V) 1920 x 1080 pixels (Full HD)
Aspect Ratio 16:9
Colors Approx. 16.7 million colors
Viewing angle 89deg./89deg./89deg./89deg. (typical)
(up/down/left/right contrast > 10:1)
Input: Composite BNC (x1)
1.0 Vp-p ±3 dB sync negative
Input: SDI BNC (x2)
Input: HDMI HDMI (x1) (HDCP correspondence)
Input: Audio Stereo mini jack (x1)
-5 dBu 47 kilohms or higher
Input: Parallel remote Modular connector 8-pin (x1) (pin-assignable)
Input: Serial remote RJ-45 modular connector (Ethernet) (x1)
(10BASE-T/100BASE-TX)
Input: DC in XLR-type 4-pin (male) (x1)
DC 12 V (output impedance 0.05 ohms or less)
Output: Composite BNC (x1)
Output: SDI BNC (x1)
Output: Audio monitor out Stereo mini jack (x1)
Output: Speaker (built-in) 0.5 W (mono)
Output: Headphones output Stereo mini jack (x1)
Power requirements AC 100 V to 240 V
50/60Hz
DC 12 V
Dimensions (W x H x D) With Stand: 222.4 x 183.5 x 161.8mm / 8.75 x 7.22 x 6.37"
Without stand: 222.4 x 166.0 x 70.0mm / 8.75 x 6.53 x 2.75"
Weight With AC Adapter: 2.6 kg / 5.73 lbs
Without AC adaptor: 2.0 kg / 4.40 lbs
