Sony

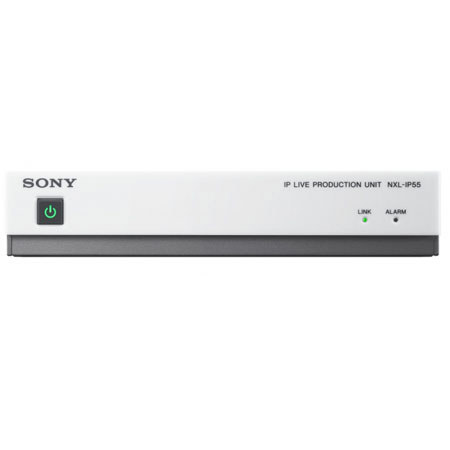

Sony NXL-IP55 IP Live Production Unit

SKU: SONXLIP55 MFR: NXL-IP55
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$10,000.00 List Price

Our Price

$8,999.95
Free Shipping
Qty:

Add to Wishlist

About the Sony NXL-IP55

The Sony NXL-IP55 IP Live Production Unit is a powerful Sony IT solution for HD live production designed to alleviate the cumbersome task of arranging several cables between two locations. For use in multi-camera live productions, the NXL-IP55 allows you to transmit up to four genlocked HD video streams (three downstream and one upstream, or two downstream and two upstream) with less than one field delay time, over a local area network (LAN). Along with video and audio signals, the NXL-IP55 transmits all essential live signals such as tally, GPIO, intercom and even genlock signals through a single LAN cable.

The NXL-IP55 achieves a never-seen-before IP live production system that provides far greater flexibility for professional live operations.

Sony NXL-IP55 Includes

  • Sony NXL-IP55 IP Live Production Unit
  • Power Plug Clamp
  • AC Adaptor
  • AC Power Cord
  • Sony 1 Year Warranty

Sony NXL-IP55 Features

  • Used as a pair, allows you to conduct a live production system over a LAN network
  • Provides for the upstream and downstream live IP transmission of HD video signals, audio signals and various control signals
  • Offers an ultra low latency of within 17ms
  • Devices can be genlock synchronized via the LAN network
  • Up to four video channels are available for transmission, with up to three in the same direction
  • Ten audio channels (five pairs) are available for transmission, with up to eight in the same direction
  • Eight GPIO channels, six tally channels and one channel for a genlock synchronization signal are also available

Sony NXL-IP55 Specifications

Reference input BNC (x1)
HD: Tri-level sync, 0.6 Vp-p, 75 Ohms
SD: Sync (NTSC: 0.286 Vp-p, 75 Ohms / PAL: 0.3 Vp-p, 75 Ohms)
HD-SDI input BNC (x3)
SMPTE 292M
Reference output BNC (x3)
HD: Tri-level sync, 0.6 Vp-p, 75 Ohms
SD: Sync (NTSC: 0.286 Vp-p, 75 Ohms / PAL: 0.3 Vp-p, 75 Ohms)
HD-SDI output BNC (x5)
SMPTE 292M
Audio / Intercom D-sub 25-pin (x1)
Audio: Line level, Max. 6ch Input or Output
Intercom: 4 W or 2
Tally / GPIO D-sub 25-pin (x1)
Tally: Red x 3 and Green x 3, 12 V or contact
GPIO: 8ch (Tx or Rx at each 4ch)
Main RJ-45 (x1)M
1000BASE-T for signal transmission
Control RJ-45 (x1)
100BASE-TX / 10BASE-T for setting up NXL-IP55
DC input 19.5 V
Power requirements DC 19.5 V / 2.2 A
Operating temperature 5deg.C to 40deg.C (41deg.F to 104deg.F)
Storage temperature -20deg.C to +60deg.C (-4deg.F to +140deg.F)
Supporting format 1920 x 1080/59.94i, 50i, 1280 x 720/59.94p, 50p
Dimensions (WxHxD) 214x42.2x313 mm (8.4x1.6x12.3", 1U rack-mount size)
Weight 2.5 kg / 5.51 lbs
