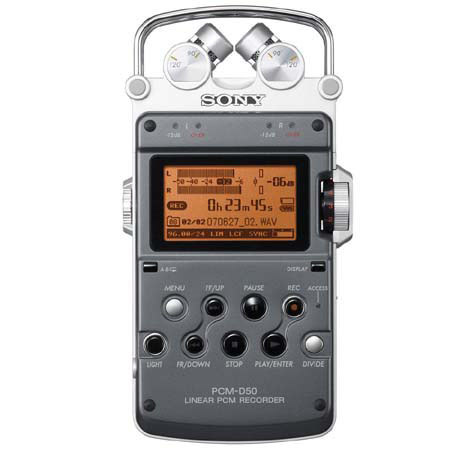

Sony PCM-D50 Portable Linear PCM Recorder
Mfr. Part: PCMD50 SKU: SOPCMD50
enlarge image
|
|
 |
|
|
|
Item Includes
Sony PCM-D50 Portable Linear PCM Recorder - Sound Forge Audio Studio LE Software CDROM - AC Power Adapter (6V) Model AC-ES608K - USB Cable - 4 x Alkaline Batteries (AA size) - Operating Instructions - Sony Warranty
|
Description
The Sony PCM-D50 is a 96 kHz/24-bit recorder fitted with two-position (X-Y or Wide) stereo microphones, 4 GB of internal flash memory and a Memory Stick Pro-HG Duo slot (for additional storage). The body of the D50 is constructed of lightweight metal (aluminum) and it's built rugged to withstand the demands of pro applications, plus it offers long battery life using conventional AA alkaline batteries.
The recorder includes a USB high-speed port for simple uploading/downloading its native .WAV format files to/from Windows PC or Macintosh computers. Other unique PCM-D50 features include digital pitch control, dual digital limiter (inherited from the PCM-D1), low-cut filter, Super Bit Mapping, A-B repeat and MP3 playback capability.
To complement the D50 recorder, new optional accessories include a remote commander, tripod stand and microphone windscreen. Additionally, the D50 offers compatible mounting and use with the recently introduced XLR-1 wide-bandwidth balanced XLR microphone adapter. |
Features
 |
Offers solid-state storage - free of drive mechanisms |
|
Built-in high quality electret condenser stereo microphones |
|
MP3 playback and digital pitch control |
|
The PCM-D50's electret condenser microphones have exceptional high sound quality and offer a selection of 2 operating positions, X-Y and Wide Stereo |
|
Superior Audio Signal Path: The PCM-D50 is designed with four separate circuit boards to separate analog audio, digital audio, digital recording and power supply circuits. Separate circuit boards for each function helps minimize noise |
|
Simple Uploading to Computer: The PCM-D50 conforms to the USB 2.0 Mass Storage Class Device standard and this recorder's native recording file format is WAV. This means recordings can be rapidly uploaded to a computer and used in conjunction with most common audio production software |
|
Versatile Recording Functions: The PCM-D50 offers comprehensive signal processing features for location recording including a unique dual digital limiter function (inherited from the PCM-D1 recorder), a high pass filter with selectable frequencies (150 Hz or 75 Hz) and SBM noise shaping |
Specifications
| Microphone Input | (Stereo Mini Jack) Input impedance: 22 k ohm, Rated input level: 2.5 mV; Minimum input level: 0.7 mV |
| Recording Format | Linear PCM Stereo .WAV |
| S/N Ratio | 93dB or greater (1kHz IHF-A) when set to 24-bit |
| Built-in Mic | Electret Condenser microphones. Frequency response 20 Hz to 20 kHz |
| Frequency Response | For Fs = 22.05 kHz: Frequency Response = 20 Hz to 10 kHz |
| Quantization | 16-bit linear, 24-bit linear |
| Sampling Frequency | 22.05kHz, 44.1kHz, 48kHz and 96kHz |
| Wow and Flutter | Below measurable limit (less than +/-0.001%W.Peak) |
| Headphone Output | Stereo Mini Jack Rated output: 400 mV; Maximum output: 25 mW + 25 mW or more; Load impedance: 16 ? |
| Memory Stick Slot | Built-in 4GB flash memory, Stereo Recording |
| USB | High-speed USB, mass storage class |
| Line Input (OPT) | Analog input: Input impedance: 40k ohms. Optical Digiital Input: Input level: -24.5 dBm to -14.5 dBm |
| Line Output (OPT) | Analog output: Output impedance: 220 ohms. Digital optical output: Output level -21 dBm to -15 dBm |
| Sampling Rates | 22.05 kHz, 44.1 kHz, 48 kHz and 96 kHz |
| Total Harmonic Distortion | 0.01% or below (1kHz, 22kHz LPF) |
| Power Requirements | DC in 6V. Four AA size Alkaline batteries (supplied) Four AA NiMH Rechargable batteries (optional) |
| Power Consumption | 0.75w |
| Dimensions | 2-7/8" x 6-1/8" x 1-5/16" not including projecting parts and controls |
| Warranty | Sony warranty |
| | |
|
|
|
|
|
|
|
|
|
|
