| Lens Mount |
2/3"-type Sony bayonet |
| Zoom Ratio |

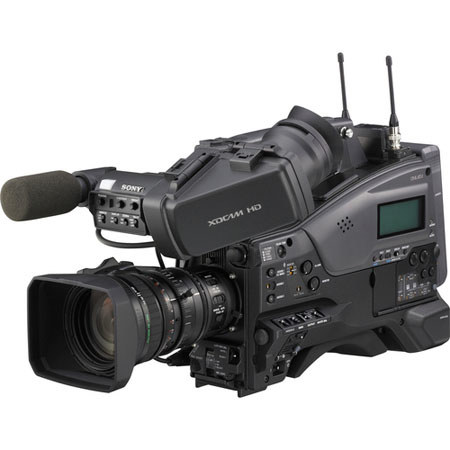

16x (optical), servo/manual (AF lens for PMW-350K) |
| Built-in Optical Filters |
1: Clear, 2: 1/4ND, 3: 1/16ND, 4: 1/64ND |
| Effective Picture Elements |
1920 (H) x 1080 (V) |
| Gain |
-3, 0, 3,6, 9, 12, 18, 24, 30, 36, 42 dB |
| Horizontal Resolution |
1,000 TV lines or more (1920 x 1080i mode) |
| Imaging Device |
3-chip 2/3-inch type Exmor Full HD CMOS |
| Minimum Illumination |
0.003 lx (typical) (1920 x 1080/59.94i mode, F1.9, +42 dB gain, with 64-frame accumulation) |
| Optical System |
F1.4 prism system |
| S/N Ratio |
59 dB (Y) (typical) (Noise Suppression mode ON) |
| Sensitivity |
F12 (typical) (1920 x 1080/59.94i mode), F13 (typical) (1920 x 1080/50i mode) (2000 lx, 89.9% reflectance) |
| Shutter Speed (Time) |
1/60 sec to 1/2,000 sec |
| Slow & Quick Motion Function |
720p: Selectable from 1 fps to 60 fps as recording frame rate 1080p: Selectable from 1 fps to 30 fps as recording frame rate |
| Slow Shutter |
2-, 3-, 4-, 5-, 6-, 7-, 8-, 16-, 32- and 64-frame accumulation |
| White Balance |
Preset (3,200 K), Memory A, Memory B/ATW |
| Battery Operating Time |
Approx. 310 min with BP-GL95A battery |
| Operating Temperature |
0 deg.C to 40 deg.C (32 deg.F to 104 deg.F) |
| Power Consumption |
Approx. 18 W (with LCD VF, AF lens, mic, while recording in 1080/59.94i) Approx. 15 W (body while recording in 1080/59.94i) |
| Power Requirements |
DC 12 V |
| Recording Format |
Video: MPEG-2 Long GOP HQ mode: VBR, maximum bit rate: 35 Mb/s, MPEG-2 MP@HL SP mode: CBR, 25 Mb/s, MPEG-2 MP@H14 SD mode: DVCAM Audio: Linear PCM (2ch, 16-bit, 48-kHz) |
| Recording Frame Rate |
NTSC area: HQ mode: 1920 x 1080/59.94i, 29.97p, 23.98p, 1280 x 720/59.94p, 29.97p, 23.98p SP mode: 1440 x 1080/59.94i SD mode: 720 x 480/59.94i, 29.97p |
| Recording/Playback Time |
HQ Mode: Approx. 100 min with SBP-32 (32 GB) memory card Approx. 50 min with SBP-16 (16 GB) memory card Approx. 25 min with SBP-8 (8 GB) memory card SP Mode: Approx. 140 min with SBP-32 (32 GB) memory card Approx. 70 min with SBP-16 (16 GB) memory card Approx. 35 min with SBP-8 (8 GB) memory card |
| Storage Temperature |
-20 deg.C to +60 deg.C (-4deg.F to +140 deg.F) |
| Audio Input |
XLR-type 3-pin (female) (x2), line/mic/mic +48 V selectable |
| Audio Output |
XLR-type 5-pin |
| Composite Output |
VIDEO OUT: BNC type |
| DC Input |
XLR-type 4-pin |
| DC Output |
4-pin |
| EXT 50-pin |
50-pin |
| Genlock Input |
BNC (x1) |
| HDMI Output |
A-type (x1) |
| Headphone Output |
Stereo mini-jack (x1) |
| Lens Remote |
12-pin |
| MIC |
XLR-type 5-pin |
| Remote |
8-pin |
| SDI Output |
BNC (x1), HD-SDI/SD-SDI selectable |
| Speaker Output |
Monaural |
| Timecode Input |
BNC (x1) |
| Timecode Output |
BNC (x1) |
| USB |
Device Type B (x1), Host Type A (x1) (Option) |
| VF |
26-pin (LCD VF), 20-pin (DXF) |
| Wireless Receiver IN |
D-Sub 15-pin |
| i.LINK |
IEEE 1394, 6-pin (x1), HDV (HDV 1080i)/DVCAM stream input/output, S400 |
| Filter Diameter |
M82 mm, pitch 0.75 mm (on lens) |
| Focal Length |
f = 8 mm to 128 mm (equivalent to 31.5 mm to 503 mm on 35 mm lens) |
| Focus |
AF/MF/Full MF selectable, 800 mm to Infinity (MACRO OFF), 50 mm to Infinity (MACRO ON) |
| Iris |
F1.9 to F16 and Close, auto/manual selectable |
| Built-in LCD Monitor |
Black & white LCD(Audio level, TC, battery and media remaining capacity) |
| Viewfinder |
3.5-inch type color LCD monitor: approx. 921,000 effective pixels, 640 (H) x 3 (RGB) x 480 (V), 16:9, hybrid type |
| Dimensions (W x H x D) |
124 x 269 x 332 mm (4.88 x 10.5 x 13.07") |
| Weight |
3.2 kg (7 lbs 1 oz) (body) 6.3 kg (13 lbs 14 oz) (with LCD VF, AF lens, Mic, BP-GL95) |
