Sony

Sony PXW-X180 Full HD XDCAM Handheld Camcorder, Three 1/3" CMOS, G Lens with 25x Optical Zoom, 3G/HD-SDI & HDMI Output, WiFi, GPS, NFC

SKU: SOPXWX180 MFR: PXW-X180
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$5,899.00 List Price

Our Price

$4,999.00
Free Shipping
Qty:
Add to Wishlist In Stock

Protect your investment

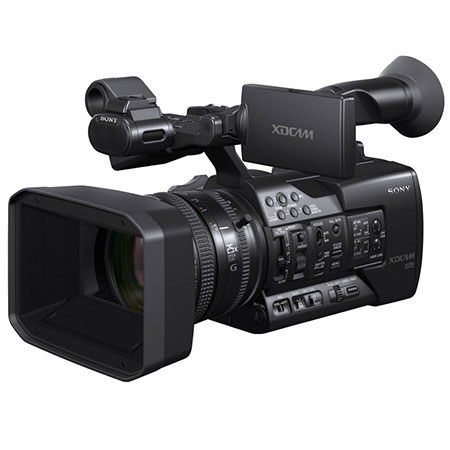

About the Sony PXW-X180

The Sony PXW-X180 Full HD XDCAM Handheld Camcorder features three 1/3" Exmor CMOS sensors and a 25x Sony G zoom lens with 26mm wide angle. It records high-quality, 10-bit 1080p video using the XAVC Intra and XAVC Long GOP codecs. It also offers MPEG HD 422, MPEG HD 420, AVCHD and DV codecs to fit into a variety of broadcast and production workflows. Other key features include a 0.5" OLED viewfinder, dual SxS memory card slots, proxy recording to SD cards and an electronically controlled variable ND filter. The camcorder can be controlled wirelessly with a smartphone or tablet using the included wireless LAN module.

Newly developed 25x optical zoom G Lens with 26 mm wide angle
This new lens delivers uncompromised Sony G Lens quality and a 26 mm angle of view at the wide end of its 25x zoom range (35 mm equivalent: 26 mm to 650 mm). That's more than enough range for a wide variety of shooting situations. Independent manual zoom and focus rings with end-stop and iris control are provided and a slide mechanism on the focus ring enables easy switching between auto and manual focusing.

Compatible with XAVC and a range of other recording formats
In addition to XAVC Intra/Long GOP, the PXW-X180 can record in MPEG2, AVCHD and DV format. The MXF file format is used for XAVC recording, efficiently compressing full HD (1920 x 1080) resolution using the MPEG-4 AVC/H.264 codec. Image sampling is 4:2:2 10-bit with Intra-frame compression at 112 Mbps, or high-efficiency Long-GOP compression at 50/35/25 Mbps.

Innovative Sony image sensor, image processor and lens achieve outstanding image quality
Sony's Exmor 3CMOS Sensor system provides independent 1/3-type CMOS image sensors for the red, blue and green color channels, each with 2.07 effective megapixels (16:9). The result is high resolution and sensitivity that contribute to superior color reproduction. An advanced image processor that features sophisticated noise reduction and distortion compensation is instrumental in delivering superb detail and texture reproduction, with image quality settings rivaling high-end broadcast camcorders.

Support for SxS, XQD and SD memory cards plus Memory Stick
To provide compatibility with a variety of workflows, the PXW-X180 feature two SxS memory card slots for high-speed read/write capability. An XQD card adaptor allows recording to XQD memory cards and an SD card adaptor enables recording to SD memory cards for maximum economy when shooting for extended periods.

Variable ND filter
The PXW-X180 is the first professional Sony camcorders to feature a continuously variable ND filter. A new filter device that electronically controls density enables continuous adjustment from 1/4 ND to 1/128 ND via a simple dial operation. In conjunction with iris setting that controls depth of field and brightness, this advanced filter facilitates shooting techniques such as the use of slow shutter in daylight and other bright conditions. For operators who prefer the conventional ND selector interface, the PXW-X180 features a dual ND filter control mechanism that provides both continuous electronic control and the standard four-position switch.

3.5-type LCD panel and 0.5-type OLED viewfinder
The PXW-X180 is equipped with a 3.5-type QHD LCD panel (960 x 540 xRGB, 16:9) that provides easy viewing in a wide range of lighting conditions. Both models also feature a 0.5-type OLED viewfinder (1024 x 768 xRGB, 4:3). High resolution makes precise manual focus easy. Compared to LCOS devices, there is no color breakup and viewing comfort is significantly improved.

Wireless functions for file transmission and remote control
Near Field Communication (NFC) functions allow easy, one-touch wireless LAN connection to a smartphone or tablet. The Content Browser Mobile application enables confirmation of the angle of the shot before shooting, monitor recording and remote operation of the camcorder (field angle/white balance/iris, etc.). The use of mobile routers (sold separately) and other mobile devices also allows transmission of files after shooting. In addition, lightweight proxy video files can be generated separately from the main line recording and recorded to SD cards for quick sharing of content over low-bandwidth mobile networks.

Multi-Interface Shoe
Compatible accessories attached to the Multi-Interface (MI) Shoe can be controlled from the PXW-X180. The HVL-LBPC video light, for example, can be switched on and off from the camcorder. Power and audio connections for a UWP-D11 or UWP-D12 wireless microphone receiver are made via the MI Shoe, minimizing the need for extra batteries and additional cabling.

Sony PXW-X180 Includes

  • Sony PXW-X180 Full HD XDCAM Handheld Camcorder
  • Lens Hood
  • EVF Large Eyecup
  • USB Cable
  • Audio Connecting Cable
  • Infrared Remote Commander
  • Lithium Battery
  • CD-ROM Operating Instructions
  • AC Adaptor
  • BC-U1 Battery Charger
  • BP-U30 Battery Pack
  • 2 x AC Cable
  • Cold Shoe Kit
  • Shoulder Strap
  • Wireless LAN Module
  • Accessory Shoe Kit
  • SD Card Adaptor
  • - Sony 1 Year Warranty

Sony PXW-X180 Features

  • Three 1/3-inch type Exmor CMOS Full HD sensors: High resolution, high sensitivity, low noise, and wide dynamic range for enhanced shooting under severe lighting conditions and more creative freedom.
  • G Series fixed 25x professional HD zoom lens: 26mm wide angle zoom with three independent rings with end-stop and large focal length.
  • High quality XAVC Intra and XAVC Long GOP recordings on SxS memory cards: Supports XAVC Intra and Long GOP codecs, as well as MPEG HD 422 50 Mbps, the widely-accepted broadcast standard compliant with the latest EBU recommendations. The PXW-X180 also records in MPEG HD 420 35 Mbps, AVCHD and DV,offering flexibility andbudget savings on media
  • Dual ND filter control mechanism for more flexibility: The PXW-X180 is equipped with a variable ND Filter function. Users can chose either four conventional mechanical ND filter positions or the linear control dial, allowing you to quickly and smoothly adapt to different conditions of shooting.
  • Wi-Fi/NFC (Near Field Communication) with Content Browser Mobile: Offers remote control via a smartphone or tablet computer using a Wi-Fi connection, and recorded video files can be transferred from the camcorder to smartphone in MP4 format. One-touch authentication is also possible with smartphones that offer NFC connectivity.

Sony PXW-X180 Specifications

Recording Format (Video) (1) XAVC-Intra1920x1080:
59.94i: 111Mbps max, 50i: 112Mbps max, 29.97P: 111Mbps max, 25P: 112Mbps max, 23.98P: 89Mbps max
XAVC-Intra 1280x720:
59.94P: 111Mbps max, 50P: 112Mbps max
XAVC-Long 1920x1080: 59.94i, 50i: 50/35/25Mbps max, 59.94P, 50P, 29.97P, 25P, 23.98P: 50/35Mbps max
XAVC-Long 1280x720:
59.94P, 50P: 50Mbps max
MPEG HD422 1920x1080:
59.94i, 50i, 29.97P, 25P, 23.98P: 50Mbps max
MPEG HD422 1280x720:
59.94P, 50P, 29.97P, 25P, 23.98P: 50Mbps max
Recording Format (Video) (2) MPEG HD420 1920x1080: 59.94i, 50i, 29.97P, 25P, 23.98P: 35Mbps max
MPEG HD420 1440x1080:
59.94i, 50i: 35Mbps max
MPEG HD420 1280x720: 59.94P, 50P: 35Mbps max
AVCHD 1920x1080: 59.94P, 50P: 28Mbps max, 59.94i, 50i, 29.97P, 25P, 23.98P: 24Mbps max
AVCHD 1280x720:
59.94P, 50P: 24Mbps max
DVCAM 720x480:
59.94i: 25Mbps
DVCAM 720x576: 50i: 25Mbps
Proxy:
1280x720: 9Mbps
640x360: 3Mbps
480x270: 1Mbps
480x270: 500Kbps
Recording Format (Audio) PCM, AC-3 (AVCHD): 2ch-> LPCM (XAVC/MPEG2/AVCHD/DVCAM), Dolby Digital (AVCHD): 2ch
Mount Fixed
Zoom Ratio 25x (optical), servo/manual
Focal Length f=3.7-92.5 mm
equivalent to 26-650 mm on 35 mm lens
Iris F1.6 - F11 and C (close)
Focus AF/MF selectable, 10 mm - infinity (Wide), 800 mm - infinity (Tele)
Image Stabilizer ON/OFF/ACTIVE selectable, shift lens
Filter Diameter M82 mm
Imaging Device (Type) 3-chips 1/3-type "Exmor" CMOS Sensor
Effective Picture Elements 1920 (H) x 1080 (V)
Built-in Optical Filters Clear, 1/4-1/128 Variable
Sensitivity F9 (typical) (1920 x 1080/59.94i mode)
F10 (typical) (1920 x 1080/50i mode)
S/N Ration 60 dB (Y) (typical)
Shutter Speed 1/32 sec to 1/2000 sec
Slow & Quick Motion Function 1920x1080p: Frame rate selectable 1-60p (depends on Recording Format)
1280x720: 1-120P (depends on Recording Format)
Angle of view becomes smaller over 60fps
White Balance Preset (3200K), A,B
GPS Yes
Wireless functions Yes
NFC Yes
Audio Input XLR-type 3-pin (female) (x2)
HDMI Output Type A (x1)
3G-SDI Output BNC Connector (x1)
Composite Output/GENLOCK-IN BNC Connector (x1)
Audio Output Stereo mini jack Dia. 3.5 mm (x1)
USB mini-B/USB2.0 Hi-speed/mass-storage (x1)
Type A/for Wireless LAN module (x1)
Type A/USB3.0 (x1) (future Update)
TC in/out BNC Connector (x1)
Remote Stereo mini mini jack °2.5 mm (x1)
DC Input DC jack (x1)
Shoe Multi Interface Shoe (x1)
Headphone Output Stereo mini jack °3.5 mm (x1)
Viewfinder 0.5-type color OLED, 2.36M dots
LCD 3.5-type color LCD monitor Aspect ratio 16:9, 1.56Mdots
Built-in Microphone Omni-directional stereo electret condenser microphone
Media Type ExpressCard/34 slot (2) (for XAVC/MPEG2/AVCHD/DV)
SD/SDHC (1) (for Proxy)
SD/SDHC (1) (for Utility)
Power Requirements DC19.5 V (AC Adaptor), DC14.4 V (battery pack)
Power Consumption Approx. 19.9 W (while recording with LCD Off, EVF On when the external device connector is not used.)
Approx. 20.8 W (while recording with LCD On, EVF On when the external device connector is used.)
Operating Temperature 0deg.C to 40deg.C (32deg.F to 104deg.F)
Storage Temperature -20deg.C to +60deg.C (-4deg.F to 104deg.F)
Battery Operating Time With battery pack BP-U90: approx. 4 hours, 00 minutes (While recording with LCD Off, EVF On when the external device connector is not used.)
With battery pack BP-U60: approx. 2 hours, 35 minutes (While recording with LCD Off, EVF On when the external device connector is not used.)
With battery pack BP-U30: approx. 1 hours, 15 minutes (While recording with LCD Off, EVF On when the external device connector is not used)
Dimensions (W x H x D) Without Protrusions: 191.50 x 201.50 x 412.00mm (7.53 x 7.93 x 16.22")
Weight Body: 5.95lbs (2.69kg)
