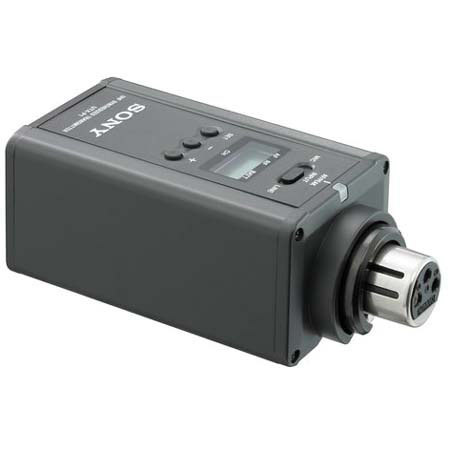

Sony UTX-P1 UWP Series Plug-on Transmitter, Operating on TV Channels 42 to 45
Mfr. Part: UTXP14244 SKU: SOUTXP1U4244
|
|
 |
|
|
|
Item Includes
Sony UTX-P1 UWP Series Plug-on Transmitter - Soft Case - Operating Instructions - Sony Warranty
|
Description
The Sony UTX-P1 plug-on transmitter is designed to be used with Sony UWP series wireless tuners. It's extremely durable and is well balanced for use with the Sony F-112 - a dynamic microphone suited to cost-effective newsgathering applications. The UTX-P1 plug-on transmitter also accepts line-level audio input signal as well.
Whether used in a low-cost ENG or EFP system, the UTX-P1 delivers the convenience of uncompromised wireless microphone operation at a very affordable price. |
Features
 |
Plug-on transmitter designed only for use with UWP Series tuners |
|
Operates over a wide 24 MHz frequency band within the range of 566 to 590 MHz |
|
Converts a wired microphone to a wireless microphone via an XLR connection |
|
50 mW RF power output for stable and long-distance transmission |
|
MIC/LINE input level switchable |
|
Approximately six hours of continuous operation with two AA-size batteries |
|
A backlit LCD provides extensive information, including the operating channel number and frequency in MHz, attenuator level, audio-input status, RF-output status, transmitter-battery status and accumulated operating time |
Specifications
| Oscillator | Crystal-controlled PLL synthesizer |
| Type Of Emission | F3E |
| Carrier Frequencies | 638 MHz to 662 MHz (TV channels 42,43,44,45), users may choose from 188 frequencies |
| RF Power Output | 50 mW |
| Pilot Tone Signal | 32 kHz |
| Frequency Response | 50 Hz to 18 kHz |
| Reference Deviation | ±10 kHz (-60 dBV, 1kHz input) |
| Signal-To-Noise Ratio | 60 dB or more (±10 kHz deviation at 1 kHz modulation, A-weighted) |
| Audio Attenuator Adjustment Range | 0 to 21 dB (in 3 dB steps) |
| Audio Input Level | MIC input position: -60 dBV (at 0 dB attenuator level), LINE input position: +4 dBu |
| Audio Input Connector | XLR-3-11C type |
| Indicators (LCD, LED) | LCD: channel/freq, attenuator, audio-input, RF-output, battery, operating time. LED: audio-input |
| Power Requirements | DC 3.0 V (two AA-size batteries) |
| Battery Life | Approx. 6 hours with Sony AA-size batteries at 25 °C (77 °F) |
| Dimensions (W x H x D) | 1-3/4 x 3-7/8 x 1-7/16 inches |
| Weight | Approx. 6 oz including batteries |
| Warranty | Sony warranty |
| | |
|
|
|
|
|
|
|
|
|
|
