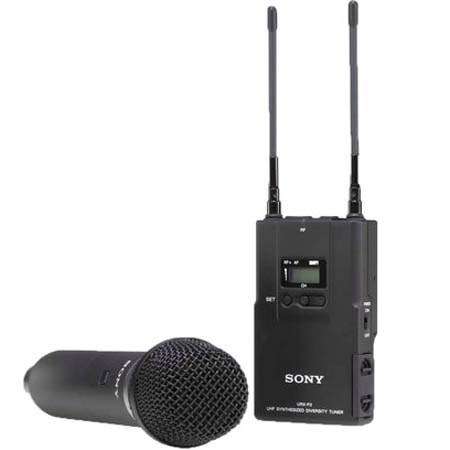

Consists of handheld microphone and portable tuner |
|
Suitable for news gathering and for use in PA systems |
|
The handheld microphone is supplied with a microphone holder and screw adaptor |
|
The tuner is supplied with a shoe-mount adaptor (for camcorder mounting), belt clip and two cables (3-pole mini-plug /XLR and 3-pole-mini/stereo mini-plug) |
|
PLL Synthesized System: Achieves stable transmission and reception by using a UHF PLL (Phase Locked Loop) frequency synthesized system, which provides accurate carrier signal frequencies |
|
Space Diversity Reception System: Typically, wireless microphone transmission systems can be subject to reception interruptions (signal dropout), but UWP series tuners reduce this to a minimum |
|
Tone Squelch Circuitry: To avoid picking up carrier signals transmitted from other systems, the transmitter transmits a 32 kHz pilot-tone signal along with the audio signal. The tuner's squelch circuit recognizes this tone signal and outputs the audio signal only when this tone signal is received |
|
Simultaneous Multi-Channel Operation: Simultaneous operation of up to 16 wireless microphones. Optimum combinations of practically tested, interference-free frequencies are stored in the tuner |
| Microphone Oscillator | Crystal-controlled PLL synthesizer |
| Microphone Type of Emission | F3E |
| Microphone Carrier Frequencies | 566 MHz to 590 MHz (TV channels 30 to 33) |
| Microphone RF Power Output | 30 mW or 5 mW (selectable) |
| Microphone Antenna | 1/4 wave length wire (internal) |
| Microphone Pilot Tone Signal | 32kHz |
| Microphone Frequency Response | 50 Hz to 18 kHz (typical) |
| Microphone Signal-To-Noise Ratio | 60 dB or more (±5 kHz deviation at 1 kHz modulation, A-weighted) |
| Microphone Microphone Capsule | Dynamic capsule (uni-directional) |
| Mic Audio Attenuator Adjustment Range | 0 to 21 dB (in 3 dB steps) |
| Mic Max. Input Sound Pressure Level | 151 dB SPL (at 21 dB attenuator level) |
| Microphone Indicators (LCD, LED) | LCD: Channel number/freq, attenuator, RF output, audio-input, battery, operating time LED: AF/Peak |
| Microphone Power Requirements | DC 3.0 V (two AA-size alkaline (LR6) batteries) |
| Microphone Battery Life | Approx. 8 hours with Sony AA-size alkaline (LR6) batteries at 25° C (77°F) |
| Tuner Oscillator | Crystal-controlled PLL synthesizer |
| Tuner Type of Reception | Space diversity |
| Tuner Receiving Frequencies | 566 MHz to 590 MHz (TV channels 30 to 33) Users may choose from 188 frequencies on each model |
| Tuner Antenna | 1/4 wave length wire |
| Tuner Pilot Tone Signal | 32 kHz |
| Tuner RF Squelch Level | 15 dBµ |
| Tuner Frequency Response | 40 Hz to 18 kHz |
| Tuner Reference Deviation | ±5 kHz (at 1kHz modulation) |
| Tuner Signal-To-Noise Ratio | 60 dB or more (± 5kHz deviation at 1 kHz modulation, A-weighted) |
| Tuner Audio Output Level | -58 dBm |
| Tuner Monitor Output Level | 5 mW (at 16 ohm) |
| Tuner Indicators (LCD, LED) | LCD: Channel number/freq, attenuator, RF input, audio-input, battery, operating time LED: AF/Peak |
| Tuner Power Requirements | DC 3.0 V (two AA-size alkaline (LR6) batteries) |
| Dimensions | Microphone: 1-15/16 x 10 inches (Capsule Diameter x Length)
Tuner: 2-1/2 x 4-1/8 x 7/8 inches |
| Weight | Microphone: Approx. 11 oz including batteries
Tuner: Approx. 7.2 oz including batteries |
| Warranty | Sony warranty |
| | |
