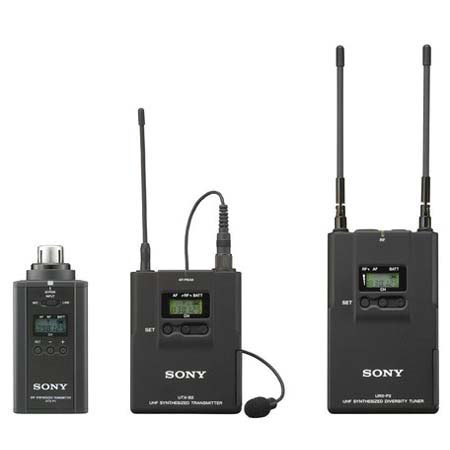

Consists of a omni lavalier microphone, bodypack transmitter, plug-on transmitter and portable tuner |
|
Suitable for a wide range of applications, from news gathering and interviews to talk shows and conferences |
|
The bodypack transmitter is supplied with a belt clip |
|
The lavalier microphone is supplied with a windscreen and mic holder clip |
|
The plug-on transmitter can be used to convert an XLR type wired microphone into a wireless microphone |
|
The tuner is supplied with a shoe-mount adaptor (for camcorder mounting) and 2 cables (3-pole mini-plug/XLR and 3-pole mini-plug/stereo mini-plug) |
|
PLL Synthesized System: Achieves stable transmission and reception by using a UHF PLL (Phase Locked Loop) frequency synthesized system, which provides accurate carrier signal frequencies |
|
Space Diversity Reception System: Typically, wireless microphone transmission systems can be subject to reception interruptions (signal dropout), but UWP series tuners reduce this to a minimum |
|
Tone Squelch Circuitry: To avoid picking up carrier signals transmitted from other systems, the transmitter transmits a 32 kHz pilot-tone signal along with the audio signal. The tuner's squelch circuit recognizes this tone signal and outputs the audio signal only when this tone signal is received |
|
Simultaneous Multi-Channel Operation: Simultaneous operation of up to 16 wireless microphones. Optimum combinations of practically tested, interference-free frequencies are stored in the tuner |
| Plug On Transmitter Oscillator | Crystal-controlled PLL synthesizer |
| Plug On Transmitter Type of Emission | F3E |
| Plug On Transmitter Carrier Frequencies | 638 MHz to 662 MHz (TV channels 42 to 45). Users may choose from 188 frequencies on each model |
| Plug On Transmitter RF Power Output | 50 mW |
| Plug On Transmitter Pilot Tone Signal | 32 kHz |
| Plug On Transmitter Frequency Response | 50 Hz to 18 kHz |
| Plug On Transmitter Reference Deviation | ±10 kHz (-60 dBV, 1kHz input) |
| Plug On Tx Signal-To-Noise Ratio | 60 dB or more (±10 kHz deviation at 1 kHz modulation, A-weighted) |
| Plug On Tx Audio Attenuator Adjustment | Range: Crystal-controlled PLL synthesizer |
| Plug On Transmitter Audio Input Level | MIC input position: -60 dBV (at 0 dB attenuator level), LINE input position: +4 dBu |
| Plug On Tx Audio Input Connector | XLR-3-11C type |
| Plug On Tx Indicators (LCD, LED) | Channel number/freq, attenuator, RF output, audio-input, battery, operating time |
| Plug On Transmitter Power Requirements | DC 3.0 V (two AA-size batteries) |
| Plug On Transmitter Battery Life | Approx. 6 hours with Sony AA-size batteries at 25 °C (77 °F) |
| Tuner Oscillator | Crystal-controlled PLL synthesizer |
| Tuner Type of Reception | Space diversity |
| Tuner Receiving Frequencies | 638 MHz to 662 MHz (TV channels 42 to 45). Users may choose from 188 frequencies on each model |
| Tuner Antenna | 1/4 wave length wire |
| Tuner Pilot Tone Signal | 32 kHz |
| Tuner RF Squelch Level | 15 dBµ |
| Tuner Frequency Response | 40 Hz to 18 kHz |
| Tuner Reference Deviation | ±5 kHz (at 1kHz modulation) |
| Tuner Signal-To-Noise Ratio | 60 dB or more (±5 kHz deviation at 1 kHz modulation, A-weighted) |
| Tuner Audio Output Level | -58 dBm |
| Tuner Monitor Output Connector | stereo mini jack |
| Tuner Monitor Output Level | 5 mW (at 16 O) |
| Tuner Indicators (LCD, LED) | Channel number/freq, attenuator, RF input, audio-input, battery, operating time |
| Tuner Power Requirements | DC 3.0 V (two AA-size batteries) |
| Bodypack Transmitter Oscillator | Crystal-controlled PLL synthesizer |
| Bodypack Transmitter Type Of Emission | F3E |
| Bodypack Transmitter Carrier Frequencies | 638 MHz to 662 MHz (TV channels 42 to 45). Users may choose from 188 frequencies on each model |
| Bodypack Transmitter RF Power Output | 30mW or 5 mW (selectable) |
| Bodypack Transmitter Antenna | 1/4 wave length wire |
| Bodypack Transmitter Pilot Tone Signal | 32 kHz |
| Bodypack Transmitter Frequency Response | 40 Hz to 18kHz |
| Bodypack Transmitter Reference Deviation | ±7 kHz |
| Bodypack Tx Signal-To-Noise Ratio | 60 dB or more (±5 kHz deviation at 1 kHz modulation, A-weighted) |
| Bodypack Tx Audio Attenuator Adjustment | Range: 0 to 21 dB (in 3 dB steps) |
| Bodypack Transmitter Audio Input Level | -60 dBV (at 0 dB attenuator level) |
| Bodypack Tx Audio Input Connector | 3-pole mini jack |
| Bodypack Tx Indicators (LCD, LED) | Channel number/freq, attenuator, RF output, audio-input, battery, operating time, AF/Peak |
| Bodypack Transmitter Power Requirements | DC 3.0 V (with two AA-size alkaline (LR6) batteries) |
| Bodypack Transmitter Battery Life | Approx. 8 hours with Sony AA-size alkaline (LR6) batteries at 25° C (77° F) at 30 mW output |
| Dimensions (W x H x D) | Plug On Transmitter: 1 3/4 x 4 x 1 7/16 inches
Portable Tuner: 2 1/2 x 4 1/8 x 7/8 inches Excluding Antenna
Bodypack Transmitter:2-1/2 x 3-1/4 x 3/4 inches Excluding Antenna |
| Weight | Plug On Transmitter: Approx. 6.5 oz including batteries
Portable Tuner: Approx. 7.2 oz including batteries
Bodypack Transmitter: 5.1 oz including batteries |
| Warranty | Sony warranty |
| | |
