38% Off
Sony UWPX7 Lavalier Microphone, Bodypack Transmitter & RX Module Wireless System, Operating on TV Channels 42 to 45

SKU: SOUWPX7U4244 MFR: UWPX7/4244

Our Price

$479.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

List Price: $771.00

Availability: Special Order .

See all shipping options

Take Note

Financing Available: As low as 0% Financing for 12 months.
For more info Please email us at sony@adorama.com

Ways To Save

More Buying Options

Product Highlights

  • Suitable for use in PA systems
  • PLL Synthesized System
  • Space Diversity Reception System
  • Tone Squelch Circuitry
  • Simultaneous Multi-Channel Operation
  • Lavalier Mic

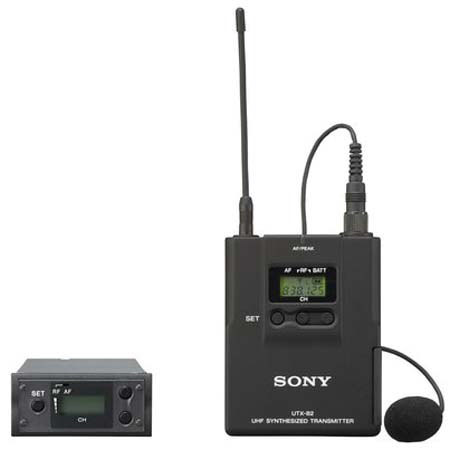

Sony UWPX7: Picture 1 regular $479.00

About Sony UWPX7

The Sony UWPX7 is UWP Series UHF synthesized wireless microphone system. The package includes a lavalier microphone, bodypack transmitter and tuner module. The Receiving Frequency of TV channel is 42 to 45.

The UWP-X7 includes extremely robust metal construction, mic/line input selection on the bodypack transmitter and a uni-directional lav microphone.

Sony UWPX7 Features

  • Consists of a uni lavalier microphone, bodypack transmitter and tuner module
  • Suitable for use in PA systems
  • Supplied with a microphone windscreen and holder-clip as well as a belt clip
  • Tuner module can be installed in MB-X6 tuner frame or SRP Series powered mixers
  • PLL Synthesized System: Achieves stable transmission and reception by using a UHF PLL (Phase Locked Loop) frequency synthesized system, which provides accurate carrier signal frequencies
  • Space Diversity Reception System: Typically, wireless microphone transmission systems can be subject to reception interruptions (signal dropout), but UWP series tuners reduce this to a minimum
  • Tone Squelch Circuitry: To avoid picking up carrier signals transmitted from other systems, the transmitter transmits a 32 kHz pilot-tone signal along with the audio signal. The tuner's squelch circuit recognizes this tone signal and outputs the audio signal only when this tone signal is received
  • Simultaneous Multi-Channel Operation: Simultaneous operation of up to 16 wireless microphones. Optimum combinations of practically tested, interference-free frequencies are stored in the tuner

Sony UWPX7 Specifications

Tuner Oscillator
Crystal-controlled PLL synthesizer
Tuner Type of Reception
Space diversity
Tuner Receiving Frequencies
638 MH to 662 MHz (TV channels 42 to 45) Users may choose from 188 frequencies on each model
Tuner Antenna
1/4 wave length wire
Tuner Pilot Tone Signal
32 kHz
Tuner RF Squelch Level
25 dBµ
Tuner De-emphasis
50µs
Tuner Frequency Response
50 Hz to 18 kHz
Tuner Reference Deviation
±5 kHz (at 1kHz modulation)
Tuner Signal-To-Noise Ratio
60 dB or more (±5 kHz deviation at 1 kHz modulation, A-weighted)
Tuner Indicators (LCD, LED)
Operating channel number/frequency, audio-output status, RF-input level, RF-input status
Tuner Power Requirements
DC 9.0 V
Transmitter Oscillator
Crystal-controlled PLL synthesizer
Transmitter Type Of Emission
F3E
Transmitter Carrier Frequencies
638 MH to 662 MHz (TV channels 42 to 45) Users may choose from 188 frequencies on each model
Transmitter RF Power Output
30mW or 5 mW (selectable)
Transmitter Antenna
1/4 wave length wire
Transmitter Pilot Tone Signal
32 kHz
Transmitter Frequency Response
40 Hz to 18kHz
Transmitter Reference Deviation
±7 kHz
Transmitter Signal-To-Noise Ratio
60 dB or more (±5 kHz deviation at 1 kHz modulation, A-weighted)
Transmitter Audio Attenuator Adjustment
Range: 0 to 21 dB (in 3 dB steps)
Transmitter Audio Input Level
-60 dBV (at 0 dB attenuator level)
Transmitter Audio Input Connector
3-pole mini jack
Transmitter Indicators (LCD, LED)
Channel number/freq, attenuator, RF output, audio-input, battery, operating time, AF/Peak
Transmitter Power Requirements
DC 3.0 V (with two AA-size alkaline (LR6) batteries)
Transmitter Battery Life
Approx. 8 hours with Sony AA-size alkaline (LR6) batteries at 25° C (77° F) at 30 mW output
Dimensions (W x H x D)
Tuner Module: 2-1/2 x 1-1/16 x 4-7/8 inches
Bodypack Transmitter:2-1/2 x 3-1/4 x 3/4 inches
Weight
Tuner Module: Approx. 5.3 oz
Weight: Approx. 5.1 oz including batteries
Warranty
Sony warranty
Mfr #
UWPX7/4244
SKU
SOUWPX7U4244
Q&A

Questions & Answers Powered by TurnTo®

Questions about this item:

Shopper  What type of base unit do i need to hook this up to in my rack?
Andrew R  The tuner module can be installed in either an MB-X6 tuner frame or an SRP Series powered mixer.
