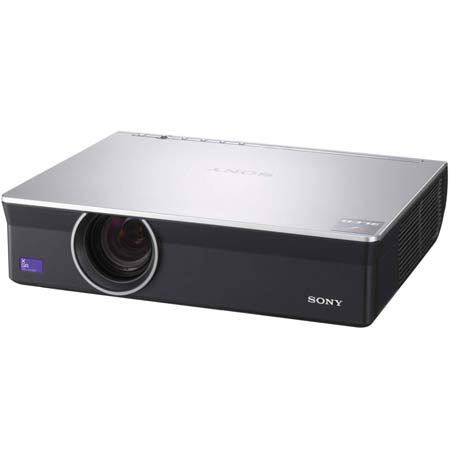

Sony VPLCX125 LCD Multimedia Network Projector, 3000 ANSI Lumens, Native XGA (1024 x 768)
Mfr. Part: VPLCX125 SKU: SOVPLCX125
enlarge image
$1,799.00 Before $250.00 Savings
|
|
 |
|
|
|
Item Includes
Sony VPLCX125 XGA 3000 Lums LCD Projector - Remote Commander Unit - Size AA (R6) batteries (x2) - Lens Cap - HD D-sub 15 Pin Cable (2m) - AC power cord - Operating Instructions and Application Software (CD-ROM) - Quick Reference Manual - Safety Regulations - Security Label - Sony Warranty Card
|
Description
The new Sony VPL-C Series is composed of six projectors, each specifically designed to match your requirements for powerful presentations in both the classroom and conference room. The VPL-CW125 boasts WXGA resolution, which is ideal for presentations from a wide-screen source such as a WXGA PC or a 16:9 aspect ratio video. The rest of the VPL-C Series of projectors has native XGA (1024 x 768) resolution for projecting high-quality images. The brightness range of these projectors is 2700 to 3500 lumens depending on the model, enabling bright presentations even in ambient light conditions. Furthermore, a newly developed lens provides crisp and clear images with minimal aberration. Designed with installation flexibility and easy maintenance in mind, the new Sony VPL-C Series is a delight for system integrators and maintenance staff. These projectors have multiple video and audio interfaces, enabling them to be configured with a variety of equipment.
They are also designed for easy lamp replacement and filter cleaning. The VPL-CW125, VPL-CX155, and VPL-CX125 each have a network interface that enables presentations and maintenance over IP networks. A number of other useful features includes vertical and horizontal keystone correction, smart APA, and direct power on/off. For classroom settings, security features such as a control panel key lock, password authentication system, and a security bar can prove indispensable. The attractive, bright, and flexible VPL-C Series of projectors is ideal for use in medium-sized corporate conference rooms, school classrooms, and several other environments. Horizontal keystone correction is available on the VPL-CW125,VPL-CX155, and VPL-CX125 only. |
Features
 |
3LCD is projection system using three LCD Panels (also known as high-temperature poly-silicon or HTPS). Images projected with 3LCD are bright, natural, and gentle on the eyes |
|
The VPL-CX125 adopts the 0.79-inch panel. The newly developed 200W ultra high pressure lamp has higher efficiency by approx. 13% than current models |
|
The VPL-CX125 incorporates circuitry to perform highly accurate 12-Bit 3D Gamma Correction |
|
The VPL-CX125 adopts the newly developed large diameter ACF (Advanced Crisp Focus) lens which consists of all glass lenses. This new lens provides high resolution crisp images with less aberration even in corners of the screen |
|
The VPL-CX125 accepts a wide variety of input signals including 2 RGB inputs, monitor out, variable audio out and RS232C for control |
|
Lamp replacement can be done from the rear side of the projector while the filter can be removed from the front so there is no need to uninstall the projector for maintenance |
|
Direct Power On/Off, with this function, standby mode can be skipped over to activate the projector immediately |
|
The VPL-CX125 can be tilted 90 degrees upwards or downwards. This flexibility greatly expands application possibilities |
|
Once a user sets a password, the projector cannot be used without it. This function prevents unauthorized use of the projector |
|
The control panels on the top panel of the projector can be locked, preventing inadvertent or unauthorized adjustment of the controls |
|
It is possible to connect to an optional security cable such as Kensington's |
|
Security: It is possible to attach an anti-theft chain or wire to the metal bar |
|
The VPL-CX125 is incredibly quiet allowing for smooth and undisturbed presentations |
|
On Screen Multi-Language Setup Menu |
|
Smart Auto Pixel Alignment |
|
Auto Input Search |
|
Picture and Audio Muting Function |
|
The Freeze function displays a freeze frame while the user prepares or switches to the next frame |
|
Digital Zoom: With the 4-times digital zoom function, one section of a presentation can be zoomed in for a closer look and to convey a message more clearly |
|
Any computer image, if it is connected to a LAN by wired or wireless connection, can be projected by connecting a network cable to the NETWORK connector (RJ45) of the projector |
|
Network Presentation: Fast and High Quality Transmission |
|
A maximum of 5 projectors can be connected to one computer without using a distributor and an image can be projected on the projectors at the same time |
|
Network Presentation: Distant Transmission |
Specifications
| Projection System | 3 LCD panels, 1 lens projection system |
| LCD Panel | 0.79-inch XGA LCD Panel |
| Projection Lens | 1.2 times, F 1.75 to 2.17, f 23.5 to 28.3 mm |
| Lamp | 200W Ultra high pressure lamp |
| Keystone Correction Range | Vertical: +/- 25° (max.),
Horizontal: +/- 15° (max.) |
| Screen Coverage | 40" to 300" |
| Light Output | 3000: Lamp Mode High
2200: Lamp Mode Low |
| Color System | NTSC3.58, PAL, SECAM, NTSC4.43, PAL-M, PAL-N, PAL60 |
| Video Resolution | 750 TV Lines |
| RGB Resolution | 1024 x 768 pixels |
| Acceptable Computer Signals | fH: 19-92KHz, fV: 48-92Hz (Up to SXGA+ (60Hz)) |
| Acceptable Video Signals | 15kHZ RGB/Component 50/60Hz, Progressive Component 50/60 Hz, DTV (480/60i, 575/50i, 480/60P, 575/50p, 720/60P, 720/50P, 1080/60I, 1080/50i)
Composite Video, YC Video |
| Power Requirements | AC 100 to 240 V, 2.9 - 1.2 A, 50/60 Hz |
| Power Consumption | Max. 285 W, Standby 7 W, Standby (low) 0.5 W |
| Heat Dissipation | 973 BTU |
| Operating Temperature | 32 to 95 °F (0 to 35 °C) |
| Operating Humidity | 35 to 85% (no condensation) |
| Storage Temperature | -4 to 140 °F (-20 to 60 °C) |
| Storage Humidity | 10 to 90% |
| Input Video | Composite Video (RCA phono jack) |
| Input S Video | Y/C Mini DIN 4-pin |
| Input Audio | Stereo mini jack |
| Input Network | RJ45: 100BASE-TX/10BASE-T |
| Input Analog RGB / Component | HD D-sub 15-pin (female) |
| Output Monitor | HD D-sub 15pin |
| Output Audio | Stereo mini jack (variable out) |
| Remote | RS-232C: D-sub 9 pin (female) |
| Dimensions (W x H x D) | 14 3/4 x 3 5/8 x 11 3/4 inches, (372 x 90 x 298 mm) |
| Weight | 9lbs 1 oz |
| Warranty | Sony warranty |
| | |
|
|
|
|
|
|
|
|
|
|
