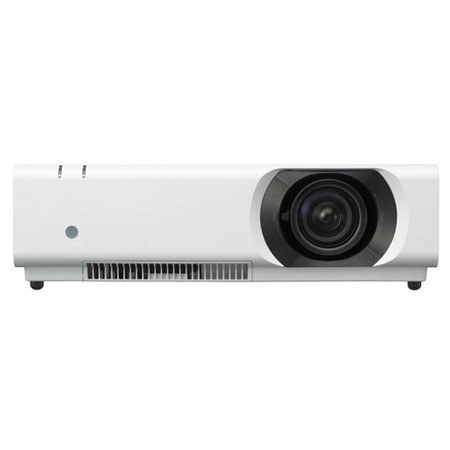

Sony VPLCX235 4100 Lumens 3 LCD BrightEra XGA Projector, 1024x768 Resolution, 3100:1 Contrast Ratio, 4:3 Aspect Ratio

SKU: SOVPLCX235 MFR: VPLCX235
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$2,150.00 List Price

Our Price

$1,399.00
Free Shipping
Qty:

Add to Wishlist In Stock

Protect your investment

About the Sony VPLCX235

The Sony VPLCX235 4100 Lumens 3-LCD Projector offers great XGA 4:3 resolution and environmentally-friendly feature. The VPL-CX235 incorporates Sony's BrightEra 3LCD inorganic panel technology that delivers higher picture quality, substantially brighter images, higher efficiency, better contrast, consistent color stability and longer durability and usability.

It features three brightness modes to suit individual user's needs - 4,100, 3,100 and 2,200 lumens. The low brightness mode generates lower operating costs by reducing power consumption and extending the lamp lifetime to approximately 5,000 hours. The projector also has a contrast ratio of 3100:1, a range of video inputs, including HDMI and RJ45 or RS-232C connectors for control.

Sony VPLCX235 Includes

  • Sony VPLCX235 XGA 4100 Lumens 3-LCD Projector
  • RM-PJ7 Remote Commander
  • CR2025 Lithium Battery
  • AC Power Cord
  • Mini D-Sub 15-Pin Cable
  • Lens Cap
  • Sony 3 Year Warranty (Projector)
  • Sony 90 Day Warranty (Lamp)

Sony VPLCX235 Features

  • Maximum 4,100 lumens brightness with High, Standard and Low modes: The VPL-CX235 features three brightness modes for different uses - High 4,100 lumens for naturally white presentations in bright rooms, Standard 3,100 lumens for everyday use and Low 2,200 lumens for video in darkened rooms
  • 1.66 - 2.41:1 throw ratio: The VPL-CX235 offers a 1.66 - 2.41:1 throw ratio that can accommodate most large classrooms or large meeting rooms
  • 3LCD BrightEra technology: Sony's 0.63-inch BrightEra inorganic TFT 3 LCD panels deliver improved panel light resistance, higher resolution, high brightness and increased panel reliability
  • XGA 4:3 resolution: The VPL-CX235 has a native XGA (1024 x 768) 4:3 screen resolution panel that is perfect for presentations direct from video, laptop or PC
  • 5,000 hours lamp life: Extended lamp life is possible with a new driving scheme that reduces gap expansion and brightness gradation, plus a new cooling system that allows uniformity in the temperature of the glass bulb and prevents it from clouding
  • Eco Mode: Users can easily select power-saving Eco Modes. The most energy-efficient mode is accessible though a single button-push and further adjustments are available through an easily understood menu system
  • Lamp Dimming: With Lamp Dimming, the projector can reduce power consumption and brightness by 10-15% without user detection. After a pre-set time assigned by the user, the brightness and power consumption will reduce to 30% power usage
  • Picture Mute: Picture Mute reduces power consumption down to 30% power usage and lamp hours. This feature can be used in the education market as an instant off / on between class changes, or in the corporate market as a tool to redirect attention away from the screen and reduce power
  • Vertical and horizontal keystone adjustment: The projector can correct keystone distortion by V: +/- 30% H: +/- 20% for perfect installation adjustment
  • Smart APA (Auto Pixel Alignment): When a computer is used as a picture source, APA automatically optimizes Phase, Pitch and Shift values. These can also be adjusted manually
  • Auto Input Search: Auto Input Search detects which input has an incoming signal and automatically switches to it. This makes it easier for users to set up the projector prior to making a presentation
  • Audio switcher facility: To avoid the need for a separate audio switcher, the projector can be used to select between two audio sources, routing them via a variable audio output to the room amplification system
  • Picture Freeze function: Picture Freeze is useful during presentations if you need to look at other material on your PC's screen without the viewing audience being aware
  • Digital Zoom: With Digital Zoom, if you are displaying a computer-sourced image, you can enlarge a selected area of the screen image
  • Off and Go: At the end of a presentation, you can turn off the power supply to the projector immediately, instead of going through a 'power down' cycle
  • Direct Power On/Off: With this function, there is no need to go through Standby mode when powering up the projector. The projector can be set to activate as soon as power is applied

Sony VPLCX235 Specifications

Projection System 3 LCD system
Image Device Size of effective display area BrightEra, Aspect ratio: 4:3 Number of pixels 2,359,296 (1024 x 768 x 3) pixels
Color Light Output 4100 lm / 3100 lm / 2200 lm
Color Light Output (low lamp mode) 4100 lm / 3100 lm / 2200 lm
Light Output High-pressure mercury lamp 245 W type
Contrast Ratio 3100:1
Lamp Life 3000 H / 4000 H / 5000 H (Lamp mode: High / Standard / Low)
Projection Lens Zoom x1.5 Focus Manual Lens Shift Manual V: +/- 5% H: +/- 4%
Throw Ratio 1.66 - 2.41:1
S-Video In Mini DIN 4-pin, Audio input connector: RCA (Shared with Video In)
Composite Video In RCA, Audio: RCA (x2) (shared with S VIDEO IN)
Analog RGB/Component In Mini D-sub 15-pin (RGB/Y Pb Pr) x1, Mini D-sub 15-pin (RGB) x1, Audio: Stereo mini jack x2
Digital In HDMI (HDCP support)
Network RJ-45, 10BASE-T/100BASE-TX
Monitor Out Mini D-sub 15-pin (from RGB input)
Variable Audio Out Stereo mini jack
Remote Control RS-232C: D-sub 9 pin (female)
Color System Auto / NTSC3.58, 720 TV Lines
Acceptable Computer Signals Maximum input signal resolution: UXGA 1600 x 1200 (resizing display), Panel display resolution: 1024 x 768 pixels
Acceptable Video Signals NTSC3.58, PAL, SECAM, 480/60i, 576/50i, 480/60p, 576/50p, 720/60p, 720/50p, 1080/60i, 1080/50i
Power Requirements AC 100 V to 240 V, 1.4A to 3.6 A 50 Hz /60 Hz
Power Consumption Power consumption (AC 100 V to 120 V) 340 W / 280W / 240W (Lamp mode: High / Standard / Low) Power consumption (AC 220 V to 240 V) 320 W / 265W / 225W (Lamp mode: High / Standard / Low)
Fan Noise 30dB (low)
Operating Temperature 32F to 104F
Operating Humidity 35% to 85% (no condensation)
Heat Dissipation Heat dissipation (AC 100 V to 120 V) 1,195 BTU Heat dissipation (AC 220 V to 240 V) 1,126 BTU
Storage Temperature -4F to 140F
Storage Humidity 10% to 90%
Dimensions (W x H x D) 15.9 x 4.8 x 13in (40 x 12 x 33 cm)
Weight 12 lb (2 oz)
