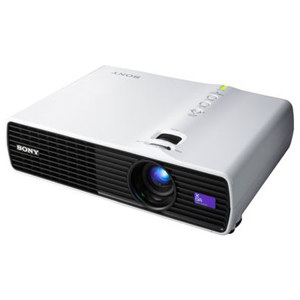

Sony VPLDX15 XGA 3000 Lumens 3 LCD Mobile Wireless Network Projector, 1024x768 Resolution, 700:1 Contrast Ratio

Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

We’re sorry, this item is no longer available. See similar Items

About this item

The Sony VPLDX15 3LCD Mobile Wireless Network Projector is ideal for mid-sized conference rooms and classrooms. It features native XGA resolution, 3000 lumens color light output and accepts a wide range of input signals, including both PC and video sources. The VPL-DX15 is a Windows Vista and Window 7 compatible network Presentation Projector featuring network file viewing; remote monitoring and maintenance; streaming video viewing; and "Remote Desktop," which allows the user to view files and folders from their PC and access web browsers without needing proprietary software - all without bringing their PC along.

What's Included With This Item

  • Sony VPLDX15 XGA 3000 Lumens 3LCD Mobile Wireless Network Projector
  • RM-PJ6 Remote Commander Unit
  • Lithium Battery (CR2025)
  • HD D-Sub 15 Pin Cable (2m)
  • AC Power Cord
  • Carrying Case
  • Operating Instructions (CD-ROM)
  • Quick Reference Manual
  • Safety Regulations
  • Security Label
  • Warranty Card
  • Sony Warranty

Key Features

  • 3LCD Panel System: 3LCD is a projection system using three LCD Panels (also known as high-temperature poly-silicon or HTPS). Images projected with 3LCD are bright, natural and gentle on the eyes
  • Brightness and High Contrast: The VPL-DX15 adopts a 0.63-inch panel. The newly developed 200W ultra high pressure lamp has higher efficiency by approx. 13% than current models
  • Compact, Lightweight, Portable: Very portable at under five lbs, with a small footprint suitable for desktop usage. "Off & Go" feature allows for quick packup after use
  • User-Friendly Features and Functions: Control buttons are neatly arranged in one line. Lens shutter with Picture Muting allows you to pause your presentation quickly
  • Networking Functions: The VPL-DX15 is a Windows VISTA Network Projector featuring "Remote Desktop," so the user can view files and folders from their PC and access web browsers without needing proprietary software - all without bringing a PC along
  • USB File Viewer: With the VPL-DX15, users can view files stored on USB memory devices. Supported formats: PowerPoint, Excel, JPEG. Stream WMV files and access JPEG files without having to convert to a proprietary file format
  • High Resolution & High Picture Quality: The VPL-DX15 incorporates Digital Detail Enhancer (DDE) to provide a smooth video signal; 12-Bit 3D Gamma Correction; and a 3D comb filter to emphasize fine images and shape boundaries
  • Direct Power On/Off: With this function, standby mode can be skipped over to activate the projector immediately
  • Flexible Orientation: Projector can be tilted 90 degrees upwards or downwards. This flexibility greatly expands application possibilities
  • Password Authentication System: Once a user sets a password, the projector cannot be used without it. This function prevents unauthorized use of the projector
  • Control Panel Key Lock: The control panels on the top panel of the projector can be locked, preventing inadvertent or unauthorized adjustment of the controls
  • Security Lock: It is possible to connect to an optional security cable such as Kensington's
  • On Screen Multi-Language Setup Menu: The VPL-DX15 has a sophisticated OSD menu that supports 17 languages (English, Norwegian, French, German, Italian, Spanish, Portuguese, Russian, Swedish, Norwegian, Japanese, simplified Chinese, Traditional Chinese, Korean, Thai, Polish and Vietnamese)
  • Smart Auto Pixel Alignment: This function automatically adjusts the size and phase of images and displays for optimum picture performance allowing users to concentrate on their presentations, rather than time-consuming technical adjustments
  • Auto Input Search: The VPL-DX15 automatically checks the projector's input connectors and selects the one to which an input signal is supplied. Images are projected from the moment the power is turned on
  • Picture and Audio Muting: The VPL-DX15 can mute the picture and audio temporarily from the remote commander
  • Freeze: For smart presentations, the Freeze function displays a freeze frame while the user prepares or switches to the next frame
  • Digital Zoom: With the 4-times digital zoom function, one section of a presentation can be zoomed in for a closer look and to convey a message more clearly

Technical Specs

Projection System 3 LCD Panels
1 lens projection system
Image Device 0.63 inch XGA LCD panel
Color Light Output 3000 lumens
Color Light Output (low lamp mode) 2400 lumens
Light Output 3000 lumens (lamp mode high)
2400 lumens (lamp mode low)
Contrast Ratio 700:1
Lamp 200W UHP
Lamp Life approx. 2000H (lamp mode high), approx. 3000H (lamp mode low)
Projection Lens 1.2 times zoom lens
f18.63 to 22.36 mm
F1.65 to 1.8
Throw Ratio 1.5-1.8:1
Screen Coverage 40 to 300 inches (viewable area measured diagonally)
S-Video In Y/C Mini DIN 4-pin
Composite Video In RCA phono jack
Analog RGB/Component In HD D-sub 15-pin (female) x 1
Network Wired: RJ45
Wireless: IEEE.802.11.a/b/g
Variable Audio Out Stereo mini jack
USB Type A
Native Resolution XGA: 1024 x 768 Pixels
Video Resolution 750 TV lines
Color System NTSC3.58
Acceptable Computer Signals fH: 19 to 80 kHz
fV: 48 to 92 Hz
Up to SXGA+ (fv 60 Hz)
Acceptable Video Signals 15k RGB, Component 50/60 Hz
Component 50/60 Hz
Progressive Component 50/60 Hz
DTV (480/60i / 575/50i / 480/60p / 575/50p / 720/60p / 720/50p / 1080/60i / 1080/50i)
Composite Video
Y/C Video
Power Requirements AC 100 to 240 V
3.6 - 1.6 A
50/60 Hz
Power Consumption Max 320 W
Standby 5.5 W
Standby (low) <1.0 W
Speaker Mono 1 W (max.) x1
Fan Noise 37dB (lamp mode low), 42 dB (lamp mode high)
Vertical Keystone Correction Range Max. +/- 30 degrees (auto)
Operating Temperature 32 to 95Deg.F (0 to 35Deg.C)
Operating Humidity 35 to 85% (no condensation)
Heat Dissipation 990 BTU
Storage Temperature -4 to 140Deg.F (-20 to 60Deg.C)
Storage Humidity 10% to 90%
Safety Regulations CB (IEC60950-1)
DEMKO (EN60950-1)
FCC Class B
IC Class B
cUL (CSA 60950-1)
eK (K60950-1 +EMC)
C-Tick (EN55022(B))
Dimensions (W x H x D) 11.6 x 2.9 x 8.03in (295 x 74 x 204mm)
Weight 4.14 lbs (2.2 kg)
