| Color Light Output |
3700 lumens (lamp mode: high), 2700 lumens (standard), 2100 lumens (low) |
| Light Output |
3700 lumens (lamp mode: high), 2700 lumens (standard), 2100 lumens (low) |
| Contrast Ratio |
3000:1 |
| Lamp |
High-pressure mercury lamp 210 W type |
| Lamp Life |
3000H(lamp mode: High) / 5000H(Standard) / 7000H(Low) |
| Projection Lens |
Approx. 1.6x manual zoom / Manual focus |
| Throw Ratio |
1.40 to 2.27:1 |
| Screen Coverage |
30" to 300" |

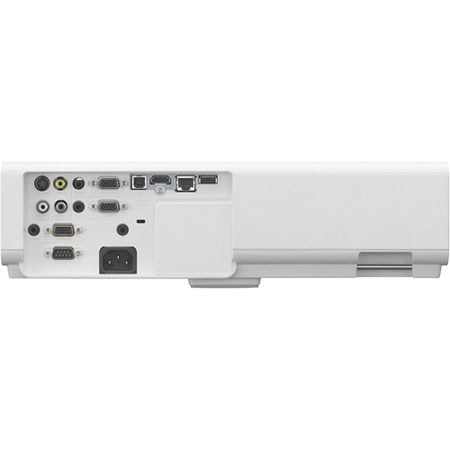

| S-Video In |
Mini DIN-4pin Audio: Pin jack x2 (shared with VIDEO IN) |
| Composite Video In |
RCA phono jack, Audio: Pin jack x2 (shared with S VIDEO IN) |
| Analog RGB/Component In |
Mini D-sub 15-pin (RGB) x1, Mini D-sub 15-pin (RGB/Y Pb Pr) x1 / Audio: Stereo mini jack |
| Digital In |
HDMI (Digital RGB/Y Pb Pr, Digital Audio), HDCP Support |
| Network |
RJ-45: 10Base-T / 100Base-TX, Optional wireless image transfer (IFU-WLM3) |
| Monitor Out |
Mini D-sub 15-pin (from Analog RGB input) |
| Variable Audio Out |
Stereo mini jack (variable out) |
| Remote Control |
RS232C (D-sub 9pin) |
| Color System |
NTSC3.58, SECAM, NTSC4.43, PAL-M, PAL-N |
| Acceptable Computer Signals |
Maximum display resolution: 1600x1200 dots |
| Acceptable Video Signals |
Video(Composite), 15k(480/60i, 575/50i), DTV (480/60p, 575/50p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/60p, 1080/50p) |
| Power Requirements |
AC 100V to 240V, 3.0 A to 1.2 A, 50 Hz/60 Hz |
| Power Consumption |
306 W (AC 100 V-120 V) |
| Speaker |
16W x 1 (monaural) |
| Dimensions (W x H x D) |
14-3/8 x 4-5/32 x 10-7/32" / 36.51 x 10.55 x 25.95 cm |
| Weight |
8.68 lbs / 3.93 kg |
