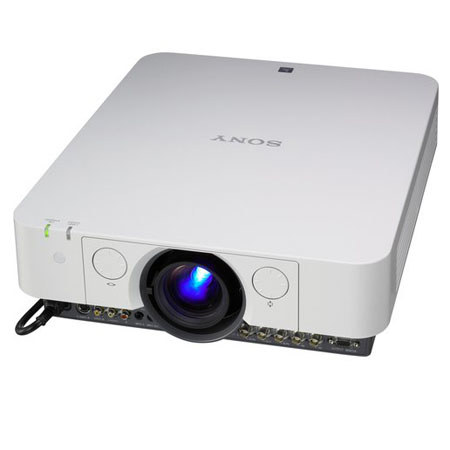

Sony VPLFX35 XGA 5000 Lumens Installation Projector, 2,000:1 Contrast Ratio, 1024x768 Resolution


Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

Availability: In Stock & Ready to Ship

Free Expedited Shipping

See all shipping options

Take Note

Financing Available: As low as 0% Financing for 12 months.
For more info Please email us at

Ways To Save

  • Purchase an INSTALLATION PROJECTOR and receive a REPLACEMENT LAMP free via mail-in rebate view details
Sony VPLFX35: Picture 1 regular $2,999.00

About Sony VPLFX35

The Sony VPL-FX35 XGA Installation Projector is a workhorse which Sony likes to refer to as "reliable" and "solid" in various publications. With 5,000 lumens of brightness and a 2,000:1 contrast ratio, it's safe to add powerful to its list of attributes. This is the projector you want for large venues and permanent installations to project 1,024 x 768 images on screens up 600" (15.2 m) with or without ambient light.

Thanks to its 0.79" 3LCD projection panels, the VPL-FX35 creates vivid, lifelike images in fine detail. 3LCD technology delivers sharper and brighter images with superior grayscale detail. But Sony has improved upon it with its BrightEra technology, which offers even higher brightness with improved reliability, increased contrast and reduced flicker.

Of course the VPL-FX35 has the features you've come to expect from a high-quality installation projector. It can display 720p, 1080i and 1080p high definition images and its international capabilities include automatic selection and projection NTSC, PAL and SECAM signals. It also has a world-ready 100 - 240 volt AC 50 / 60 Hz power supply which operates virtually anywhere there's electricity.

VPL-FX35' s wide connectivity includes DVI-D, S-Video and composite as well as a variable audio line-out to balance external speaker levels, as well as a monitor output for an auxiliary display. The VPL-FX35 is equipped to use your local network (LAN) thanks to its RJ-45 (Ethernet) jack. You can make presentations from any PC on your network as well as managing, monitoring and controlling it remotely. You can also send important announcements like scheduling information to several VPL-FX35s in multiple locations. They, in turn can email you individual status data detailing conditions like excessively high temperature, imminent lamp burn-out and other maintenance issues.

For such an amazingly bright projector your VPL-FX35 gets by on a minimum of energy. In Standard operating mode it consumes a maximum of only 380 watts to pump out those 5,000 lumens of projector power. In Standard Standby that drops way down to 11 watts and in Low Standby mode it draws less than 0.15W. Power, reliability and functionality make the VPL-FX35 the ideal choice for permanent installations.

Sony VPLFX35 Features

  • Installation Flexibility: With the FX35's wide zoom standard lens, it's possible to keep the same mount position if upgrading from an older model. A centered lens makes it easy to calculate symmetric installation
  • Superior Image Quality with 5,000 Lumens at a 2,000:1 Contrast Ratio: An outstanding color light output of 5,000 lumens & a high contrast ratio of 2,000:1 means a brighter, sharper picture
  • Quiet and Unobtrusive: Outfitted with a white, flat cabinet and a connector panel located on the lower face front that hides the connectors and cables, the VPL-FX35 seems to blend into the ceiling when mounted
  • 3LCD Projection System: Because the VPL-FX35 uses a 3LCD projection system, images are bright and natural. 3LCD technology uses LCD panels made of a substance known as high-temperature polysilicon or HTPS
  • Eco-Friendly Features: Replace lamps less frequently with a long expected lamp replacement time of 4,000 - 5,000 hours. Sony's optical engine featuring BrightEra with Longer Lasting Optics provides improved optical efficiency
  • Other Convenience Features: Features include Closed Captioning, Digital Zoom, Picture Muting, Direct Power On/Off, Network Control and Monitoring
  • Maintenance Made Easy: When it's time to replace the lamp, a message appears onscreen. You can replace the lamp and clean the filter quickly and easily without uninstalling the projector since both are accessible from the rear

Sony VPLFX35 Specifications

Projector Display System
0.79" TFT LCD BrightEra Panel x3
Native Resolution
XGA (1,024 x 768)
Number of Pixels
786,432 x3
TV Lines
Lumens Brightness
5,000 (High mode)
4,000 (Standard mode)
Aspect Ratio
275W UHP
4,000 hours High mode
5,000 hours Standard mode
Zoom / Focus: Manual 1.6x zoom / manual focus
f1.75 to 2.56 (f30.6 to 39.7 mm)
Throw Ratio
1.42 to 2.27:1
Lens Shift
Vertical: +51%/-0%
Horizontal: +/- 33%
Keystone Correction
Vertical: +/-30Deg.
Recommended Projection Size
40 - 600" (1.01 - 15.2 m)
I/O Connections
DVI-D in x1
5BNC in (RGB / Y Pb Pr) x1
S-video in: mini DIN 4-pin (Y / C) x1
Mini D-sub 15-pin (RGB) x1
Composite in (pin jack) x1
Pin jack in (shared between video and S-video in) x2
Audio in (stereo mini jack) x1
Monitor out: mini D-sub 15-pin (shared with input A and B) x1
Audio out: stereo mini jack (variable out) x1
Control Terminals
LAN: RJ-45, 10BASE-T / 100BASE-TX x1
RS-232C D-sub 9-pin x1
Control S input: stereo mini jack (plug in power DC5V) x1
Scanning Frequency
fH: 14 - 93kHz, fV: 47 - 93Hz
Computer Signals
Maximum display resolution: 1,920 x 1,200 dots (resizing display)
Video Signals
NTSC, PAL, SECAM, 480 / 60i, 576 / 50i, 480 / 60p, 576 / 50p, 720 / 60p, 720 / 50p, 1080 / 60i, 1080 / 50i, 1080 / 60p, 1080 / 50p
Ceiling Mountable
Rear Screen Projection
Built-in Speaker
No: audio in / out for audio switcher usage
AC 100 - 240V, 3.3 - 1.3A, 50Hz / 60Hz
Power consumption: 380W full power, 11W Standard mode, 0.15W Standby mode
Remote Control
IR wireless
15.3 x 5.2 x 18.8" (389 x 148 x 477 mm)
17.3 lb (7.8 kg)
