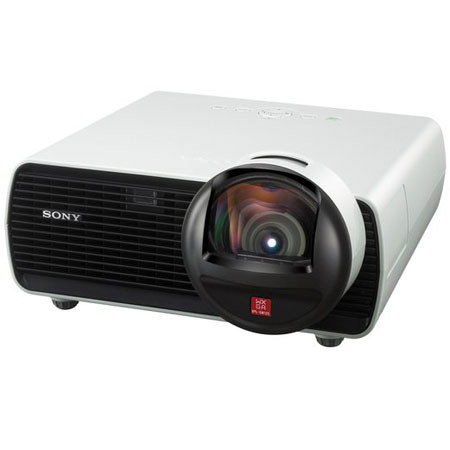

Sony VPLSW125 Short Throw WXGA Projector with Ludia eBeam Edge Package, 1280x800 Resolution, 2600 Lumens Brightness, 3800:1 Contrast Ratio

Sony VPLSW125: Picture 1 thumbnail Sony VPLSW125: Picture 2 thumbnail Sony VPLSW125: Picture 3 thumbnail Sony VPLSW125: Picture 4 thumbnail Sony VPLSW125: Picture 5 thumbnail

Protect Your Investment:

Add a Protection Plan
  • Add a protection plan
  • New Leaf 2 Year Extended Warranty + $89.95
  • New Leaf 2 Year Drops & Spills Extra Protection + $148.95
  • New Leaf 5 Year Extended Warranty + $168.95
  • New Leaf 5 Year Drops & Spills Extra Protection + $251.95
Made in USA

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

About Sony VPLSW125

The Sony VPL-SW125-EBPAC Short Throw Projector with Ludia eBeam Edge Package is an ideal choice for close projection applications in the corporate and educational markets. It turns almost any surface into an interactive screen. There is no need for a special board or display area. It transforms existing whiteboards and even walls into interactive teaching screens or meeting spaces.

This full-featured projector offers a powerful 2600 lumens of brightness backed with a crisp 3800:1 contrast ratio, rendering sharp vivid WXGA 1280 x 800 images on screens up to 100" (2.5 m). Its 0.59" x 3 BrightEra LCD Panel (the parts that create the image) delivers smooth, seamless color combined with an unparalleled grayscale range.

The VPL-SW125 is equipped to use your local network (LAN) thanks to its wired RJ-45 (Ethernet) jack. You can make presentations from any PC on your network as well as managing, monitoring and controlling it remotely. You can also send important announcements like rescheduling information or weather updates to a whole fleet of VPL-SW125s. They, in turn can email you individual status data detailing conditions like excessively high temperature, imminent lamp burn-out and other maintenance issues.

The VPL-SW125 also has the international credentials you've come to expect in more projectors. It's got a world-ready 100 to 240 volt 50/60Hz power supply. It can handle NTSC, NTSC 4.43, PAL, PAL-M, PAL-N, PAL-60 and SECAM video signals and it has a 20 language onscreen display (OSD).

The VPL-SW125 also decodes and displays closed captioning from programming that provides it, benefiting those in your audience with hearing impairments. It also helps people with native languages other than English as well as those in noisy environments such as gyms and trade shows. Lastly, just to make sure that the lightweight VPL-EX145 doesn't depart without leaving a forwarding address, security is provided by anti-theft anchor points, as well as password and keypad lockouts.

Sony VPLSW125 Features

  • eBeam Edge Projection: Lightweight and portable, the eBeam Edge Projection transforms flat surfaces into lively interactive workspaces. Place it on traditional whiteboards, walls, tabletops and even glass. Install it in minutes
  • The filter only needs to be changed when a new lamp is fitted, potentially halving disruption due to maintenance
  • The VPL-SW125 has six picture modes (dynamic, standard, game, living, cinema and presentation) that can be selected to suit the nature of the source material
  • With the direct power on/off function, there is no need to go through standby mode when powering up the projector. The projector can be set to activate as soon as power is applied
  • A color brightness output of 2600 lumens and an outstanding contrast ratio of 3800:1 burst out of BrightEra LCD panels
  • 12-bit 3D digital gamma correction provides smoother and more accurate color reproduction
  • With the short throw lens that gives a throw ratio of 0.62:1, the VPL-SW125 is capable of projecting a large image from short distance. It helps to reduce the glare of the presenter, or reduce the space to reproduce a large image
  • Replace lamps less frequently with a long lamp life of 3000/4500/6000 hours. With the push of the eco mode button on the projector or remote commander, it saves the consumption of lamp wattage
  • When a computer is used as a picture source, APA automatically optimizes phase, pitch and shift values. These can also be adjusted manually
  • The projector can detect keystone distortion and can correct it automatically

Sony VPLSW125 Specifications

Projector Display System
0.59" x 3 BrightEra LCD Panel
Native Resolution
XGA (1280 x 800)
Maximum Display Resolution: 1400 x 1050 (Resizing Display)
Video Resolution: 750 TV Lines
Number of Pixels
1,024.000 x 3 = 3,072,000
Lumens Brightness
2600 Lumens (Lamp Mode: High)
1800 Lumens (Lamp Mode: Standard)
1400 Lumens (Lamp Mode: Low)
Contrast Ratio
3800:1 (Full White/Full Black)
HDTV Compatibility
480/60i, 576/50i, 480/60p, 576/50p, 720/60p, 720/50p, 1080/60i, 1080/50i
Scanning Frequency
H: 19-92kHz, V: 48-92Hz
Focus/Zoom Adjusting
Yes, Manual
Throw Ratio
Screen Size
50-110" (1270-2794mm)
Ceiling Mountable
Rear Screen Projection
Built-in Speaker
Yes, 1W Mono
Input A: Mini D-sub 15-pin (RGB/Y Pb Pr) x 1
Audio: Stereo Mini Jack x 1
Input B: Mini D-sub 15-pin x 1
Audio: Stereo Mini Jack x 1
Video In: Pin Jack x 1
Audio: Pin Jack (Shared with S-video In) x 2
S-video In: Mini DIN 4-pin x 1
Audio: Pin Jack (Shared with Video In) x 2
Monitor Out: Mini D-sub 15-pin (from Input A and B) x 1
Audio Out: Stereo Mini Jack x 1
Other Signal Input/Output: RS-232C x 1
D-sub 9-pin x 1
LAN: RJ-45 x 1, 10BASE-T/100BASE-TX
Lamp (Bulb)
Light Source: Ultra High Pressure Mercury Lamp 210W Type
Recommended Lamp Replacement Time:
3000 Hours (Lamp Mode: High)
4500 Hours (Lamp Mode: Standard)
6000 Hours (Lamp Mode: Low)
Power Requirements
AC 100-240 V, 3-1.3 A, 50/60Hz
Power Consumption
290W/240W/205W (AC 100-120 V)
275W/225W/190W (AC 220-240 V)
Standby Mode Power Consumption:
3W (Std)/<1W (Low) (AC 100-120 V)
3W (Std)/<1W (Low) (AC 220-240 V)
Operating Temperature
32-95 Deg. F (0-35 Deg. C)
Dimensions (W x H x D)
Without Protrusion: 12.3 x 5.7 x 13.8" (313.4 x 144.9 x 349.3mm)
8.3 lb (3.7kg)
