Sony

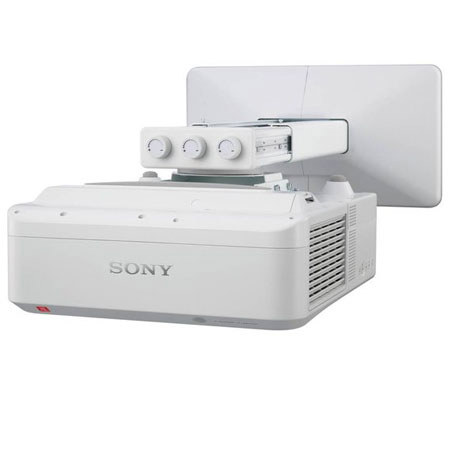

Sony VPLSW535 Ultra Short Throw Widescreen WXGA Projector, 1280x800 Resolution, 3000 Lumens Brightness, 2500:1 Contrast Ratio

SKU: SOVPLSW535 MFR: VPLSW535
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$1,299.00
Qty:

Add to Wishlist In Stock

Protect your investment

About the Sony VPLSW535

The Sony VPLSW535 widescreen WXGA projector is an ideal choice for ultra close projection applications in the corporate and educational markets. The projector has a low brightness mode which reduces power consumption and extends the lamp lifetime to approximately 6000 hours, which means lower operating across the board. This projector is ideal for small or difficult spaces - its ultra short throw ratio can produce a 2.03M (80") diagonal screen size image from only 0.58M (1.9 feet) away from the screen. It also has easy to operate controls. Excellent contrast, consistent color stability, high picture quality and longer durability will improve visibility and enhance teaching quality.

Sony VPLSW535 Includes

  • Sony VPL-SW535 Ultra Short Throw Widescreen WXGA Projector
  • Wall Mount Bracket RM-PJ7
  • Remote Commander RM-PJ7
  • CR2025 Lithium Battery
  • Mini D-Sub 15-pin Cable
  • Lens Cap
  • AC Power Cord
  • Sony 3 Year Warranty (Projector)
  • Sony 90 Day Warranty (Lamp)

Sony VPLSW535 Features

  • Maximum 3000 lumens brightness with High, Standard and Low modes: The VPL-SW535 features three brightness modes for different use - 'High' for naturally white presentations in bright rooms, 'Standard' for everyday use and 'Low' for video in darkened rooms
  • 0.27 - 0.29:1 throw ratio: The VPL-SW535 offers a 0.27 - 0.29:1 throw ratio that produces a 2.03M (80") diagonal screen size image from only 0.58M (1.9 feet) away from the screen
  • 3LCD BrightEra Technology: Sony's 0.75 inch BrightEra inorganic TFT 3-LCD panels deliver improved panel light resistance, higher resolution, high brightness and increased panel reliability
  • WXGA Widescreen Resolution: The VPL-SW535 has a color light output of 3000 ANSI lumens and with a native WXGA (1280 x 800) widescreen resolution panel is perfect for video or presentations direct from a laptop or PC
  • 6000 hours Lamp Life: New driving scheme reduces gap expansion that reduces brightness gradation and a new cooling system allows uniformity in the temperature of the glass bulb which prevents the glass from clouding
  • Eco Mode Key: Users can easily select power-saving Eco Modes. The most energy-efficient mode is accessible though a single button-push and further adjustments are available through an easily understood menu system
  • ECO Lamp Dimming: This projector (if function is on) can reduce power consumption and brightness by 10-15% without user detection during a input image. After a user pre-set time, the brightness and power consumption will reduce to 30%
  • ECO Picture Mute - (Instant off / Instant On): Picture Mute reduces power consumption down to 30% power usage, saving lamp hours
  • Digital / HD Ready: HMDI input means the VPL-SW535 can accept High Definition digital signals from PC or Video source
  • Automatic Keystone Adjustment: The projector can detect keystone distortion and can correct it automatically
  • Smart APA (Auto Pixel Alignment): When a computer is used as a picture source, APA automatically optimizes Phase, Pitch and Shift values. These can also be adjusted manually
  • Auto Input Search: Auto Input Search detects which input has an incoming signal and automatically switches to it. This makes it easier for users to set up the projector prior to making a presentation
  • Picture Muting / Audio Muting: If there is a need to blackout the image or turn of the audio from the projector, all it takes is a single button-press on the remote control. One button will mute audio and image at the same time. There is also a separate "mute audio" button for audio-only muting
  • Six Picture Modes: The VPL-SW535 has six available picture modes for correct picture quality; Dynamic, Standard, Game, Living, Cinema and Presentation
  • Audio switcher facility: To avoid the need for a separate audio switcher, the projector can be used to select between two audio sources, routing them via a variable audio output to the room amplification system
  • Picture Freeze Function: Picture Freeze is useful during presentations if you need to look at other material on your PC's screen without the viewing audience being aware. Freeze the current image and you can use your PC independently of the display from the projector
  • Digital Zoom: With Digital Zoom, if you are displaying a computer-sourced image, you can enlarge a selected area of the screen image up to four times
  • Off and Go: At the end of a presentation, you can turn off the power supply to the projector immediately, instead of going through a 'power down' cycle

Sony VPLSW535 Specifications

Projection System 3LCD system
Image Device 3,072,000 (1280 x 800 x 3) pixels
Color Light Output 3000 lm / 2400 lm / 2000 lm
Light Output 3000 lm / 2400 lm / 2000 lm
Contrast Ratio 2500:1
Lamp High-pressure mercury lamp 210 W type
Lamp Life 3000 H / 4500 H / 6000 H (Lamp mode: High / Standard / Low)
Projection Lens Zoom X 1.05 Focus Manual Digital Zoom X4 Lens Shift V: +/- 4.4%, H: +/- 2.7%
Screen Coverage 70" to 130"
S-Video Input Connector Mini DIN-4 pin Audio input connector: Pin jack (x2)
Composite Video Input Connector Video input connector: Pin Jack Audio input connector: Pin jack
Power Requirements AC 100 V to 240 V, 3.6- 1.4 A, 50 Hz /60 Hz
Speaker 1 W x 1 (monaural)
Fan Noise 28dB (low)
Vertical Keystone Correction Range Vertical: Max. +/- 5 degrees
Operating Temperature 32 to 104 Deg.F
Operating Humidity 35% to 85%; no condensation
Storage Temperature -4 to 140 Deg. F
Storage Humidity 10% to 90%; no condensation
Dimensions (W x H x D) 15-1/8 x 6-11/32 x 16-21/32 in (384.4 x 161.1 x 423.4 mm)
Weight 7.0 kg /15 lb 7 oz
