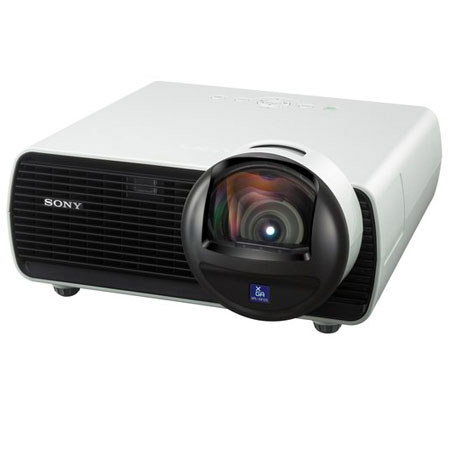

Sony VPLSX125 Short Throw 3LCD WXGA Projector with Ludia eBeam Edge Package, 1024x768 Resolution, 2500 Lumens, 3800:1 Contrast Ratio


Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

Availability: Special Order .

Free Shipping

See all shipping options

Sony VPLSX125: Picture 1 regular $1,499.00

About Sony VPLSX125

The Sony VPL-SX125-EBPAC Short Throw Projector with Ludia eBeam Edge Package is an ideal choice for close projection applications in the corporate and educational markets. It turns almost any surface into an interactive screen. There is no need for a special board or display area. It transforms existing whiteboards and even walls into interactive teaching screens or meeting spaces.

Designed to deliver reliable presentations, this projector reproduces high-resolution imagery by utilizing a 3LCD panel system, BrightEra technology and native XGA 1024 x 768 resolution. And with 2500 ANSI lumens it realizes every brilliant detail of your presentation even in rooms with high levels of ambient light. It brings your computer presentation experience to a whole new level with IP network accessibility, remote desktop functionality, remote monitoring and maintenance.

With the short throw lens that gives a throw ratio of 0.62:1, the VPL-SX125 is capable of projecting large images from short distance. It helps to reduce the glare of the presenter, or reduce the space to reproduce a large image. Connectivity options include an RJ-45 LAN jack, D-sub computer/component, composite video, S-video and analog audio inputs.

The projector includes a host of convenient features. They include direct power on/off, freeze function, Built-In Speaker and synchronized lamp and filter maintenance cycle. All this makes this versatile projector an ideal solution for home, office, or school classroom environments.

Sony VPLSX125 Features

  • Superior Image Quality & Rich Color Reproduction: A color brightness output of 2500 lumens and an outstanding contrast ratio of 3800:1 burst out of BrightEra LCD panels. 12-bit 3D digital gamma correction provides smoother and more accurate color reproduction
  • eBeam Edge Projection: Lightweight and portable, the eBeam Edge Projection transforms flat surfaces into lively interactive workspaces. Place it on traditional whiteboards, walls, tabletops and even glass
  • Short Throw Projection: With the short throw lens that gives a throw ratio of 0.62:1, the VPL-SX125 is capable of projecting large images from short distance. It helps to reduce the glare of the presenter, or reduce the space to reproduce a large image
  • TCO and ECO: Replace lamps less frequently with a long lamp life of 3000/4500/6000 hours. With the push of the eco mode button on the projector or remote commander, lamp mode saves the consumption of lamp wattage
  • Digital Zoom: With digital zoom, if you are displaying a computer-sourced image, you can enlarge a selected area of the screen image up to four times
  • Power Down: At the end of a presentation, you can turn off the power supply to the projector immediately, instead of going through a power down cycle
  • Six Picture Modes: The VPL-SX125 has six picture modes: dynamic, standard, game, living, cinema and presentation
  • Security: The VPL-SX125 has a package of security measures, including password protection and physical anti-theft anchor points

Sony VPLSX125 Specifications

Projector Display System
0.63" x 3 BrightEra LCD Panel
Native Resolution
XGA (1024 x 768)
Maximum Display Resolution: 1400 x 1050 (Resizing Display)
Number of Pixels
786,432 x 3 = 2,359,296
Lumens Brightness
2500 Lumens (Lamp Mode: High)
1800 Lumens (Lamp Mode: Standard)
1400 Lumens (Lamp Mode: Low)
Contrast Ratio
3800:1 (Full White/Full Black)
HDTV Compatibility
480/60i, 576/50i, 480/60p, 576/50p, 720/60p, 720/50p, 1080/60i, 1080/50i
Scanning Frequency
H: 19-92kHz, V: 48-92Hz
Focus/Zoom Adjusting
Yes, Manual
Throw Ratio
Screen Size
50-110" (1270-2794mm)
Ceiling Mountable
Rear Screen Projection
Built-in Speaker
Yes, 1W Mono
Input A: Mini D-sub 15-pin (RGB/Y Pb Pr) x 1
Audio: Stereo Mini Jack x 1
Input B: Mini D-sub 15-pin x 1
Audio: Stereo Mini Jack x 1
Video In: Pin Jack x 1
Audio: Pin Jack (Shared with S-video In) x 2
S-video In: Mini DIN 4-pin x 1
Audio: Pin Jack (Shared with Video In) x 2
Monitor Out: Mini D-sub 15-pin (from Input A and B) x 1
Audio Out: Stereo Mini Jack x 1
Other Signal Input/Output: RS-232C x 1
D-sub 9-pin x 1
LAN: RJ-45 x 1, 10BASE-T/100BASE-TX
Lamp (Bulb)
Light Source: Ultra High Pressure Mercury Lamp 210W Type
Recommended Lamp Replacement Time:
3000 Hours (Lamp Mode: High)
4500 Hours (Lamp Mode: Standard)
6000 Hours (Lamp Mode: Low)
Power Requirements
AC 100-240 V, 3-1.3 A, 50/60Hz
Power Consumption
290W/240W/205W (AC 100-120 V)
275W/225W/190W (AC 220-240 V)
Standby Mode Power Consumption:
3W (Std)/<1W (Low) (AC 100-120 V)
3W (Std)/<1W (Low) (AC 220-240 V)
Operating Temperature
32 to 95 Deg. F (0 to 35 Deg. C)
Dimensions (W x H x D)
Without Protrusion: 12.3 x 5.7 x 13.8" (313.4 x 144.9 x 349.3mm)
8.3 lb (3.7kg)
Mfr #
