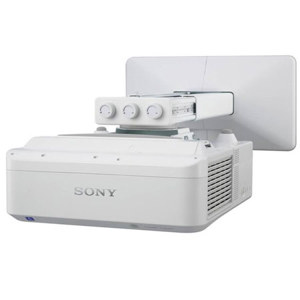

Sony VPL-SX535 Short Throw Projector with Luidia eBeam Edge Package, 3000 Lumens, 1024x768 WXGA Resolution

SKU: SOVPLSX535E MFR: VPLSX535EBPAC
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

We’re sorry, this item is no longer available.

About this item

The Sony VPL-SX535 Projector with Luidia eBeam Edge Package combines magnificent projector with some of the best interactive tools in the business. About the size of a board eraser and lighter than a box of chalk, the eBeam Edge for education is the most fully featured mobile interactive whiteboard system on the market. eBeam Edge projection transforms flat surfaces into lively interactive workspaces. Place it on traditional whiteboards, walls, tabletops and even glass. Install it in minutes. Draw freehand in vibrant color, annotate on Microsoft PowerPoint documents and use tools that help focus attention on meeting content.

The VPL-SX535 projector offers a powerful 3000 lumens of brightness backed with a crisp 2500:1 contrast ratio, rendering sharp vivid 1024 x 768 resolution images on screens up to 110" (2 m). Its 0.63" x 3 BrightEra LCD panel (the parts that create the image) delivers smooth, seamless color combined with an unparalleled grayscale range.

The VPL-SX535 is equipped to use your local network (LAN) thanks to its wired RJ-45 (Ethernet) jack. You can make presentations from any PC on your network as well as managing, monitoring and controlling it remotely. You can also send important announcements like rescheduling information or weather updates to a whole fleet of VPL-SX535s. They, in turn can email you individual status data detailing conditions like excessively high temperature, imminent lamp burn out and other maintenance issues.

Just to make sure that the lightweight VPL-SX535 doesn't depart without leaving a forwarding address, security is provided by anti-theft anchor points, as well as password and keypad lockouts. Lastly, the eBeam Edge works with any projector and Windows computer. It comes with a lightweight stylus and powerful interactive software.

What's Included With This Item

  • Sony VPL-SX535 Short Throw Projector
  • Edge Receiver (Interactive Module)
  • eBeam Stylus
  • AAA Battery
  • Spare Stylus Tips
  • USB Cable
  • 4 x Mounting Plates
  • eBeam Software (Includes eBeam Interactive Software for Education & eBeam Work Space Software for Business)
  • AC Power Cord
  • WEEE/EU Battery Info/ Service Documentation/Quick Reference Manual
  • Operating Instructions
  • Lens Cap
  • Remote Commander
  • CR2025 Lithium Battery

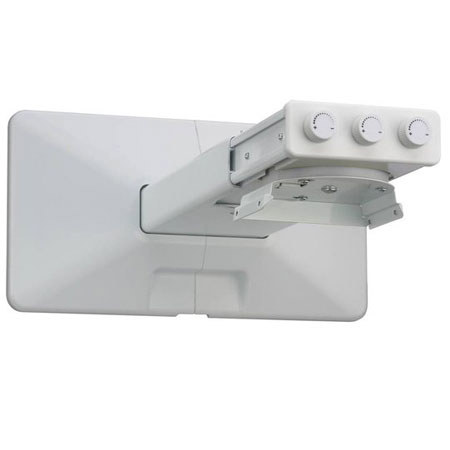

  • Wall Mount Bracket
  • Mini D-sub 15-pin Cable
  • Sony Warranty

Key Features

  • Transform Meetings from Ho Hum to Wow in Minutes: Lightweight, portable and oh-so adaptable. eBeam Edge projection transforms flat surfaces into lively interactive workspaces. Place it on traditional whiteboards, walls, tabletops and even glass. Install it in minutes
  • Turns Almost Any Surface to an Interactive Screen: No need for special board or display area. Transforms existing whiteboards and even walls into interactive teaching screen or collaborative meeting space
  • Save Time and Cost of Installation: The interactive module weighing less than 4 oz (113.4 g), it eliminates labor time and cost to setup bulky interactive whiteboards
  • Web Control and Monitoring/E-mail Report: Built-in Web browser IE allows the user or AV manager to check a projector status remotely. Power on/standby, input/output, lamp usage (hours) can be controlled. An e-mail address can also be set to notify lamp exchange/replacement or any unexpected problems
  • Eco Lamp Dimming: This projector (if this function is selected) can reduce power consumption and brightness by 10-15%. After a user pre-set time, the brightness and power consumption will reduce to 30% power usage, with instant 100% brightness returning as soon as a new signal input is detected
  • Eco Picture Mute - (Instant Off/Instant On): The new eco picture mute feature reduces power consumption down to 30%, saving cost and lamp hours. This feature can be used in the classroom as instant off/instant on in-between class changes
  • 6000 Hours Lamp Life: A new driving scheme reduces gap expansion which minimizes brightness gradation. A new cooling system allows uniformity in the temperature of the glass bulb which prevents the glass from clouding
  • Maximum 3000 lumens brightness with High, Standard and Low Modes: The VPL-SX535 features three brightness modes for different uses - High for naturally white presentations in bright rooms (3000 lumens), Standard for everyday use (2400 lumens) and Low for video in darkened rooms (2000 lumens)
  • Lens Shift Function: The projector is equipped with horizontal and vertical lens shift functions for greater installation flexibility. Using this function, the position of the projected image can be moved vertically up and down by 4.4% and horizontally from -2.7% through to +2.7%
  • Impressive Throw Ratio: The VPL-SX535 offers a 0.34 to 0.36:1 throw ratio that produces a 80" (2 m) diagonal screen size image from only 1.5' (0.5 m) away from the screen
  • Eco Mode Key: Users can easily select power-saving eco modes. The most energy efficient mode is accessible though a single button-push, with further adjustments available through an easily understood menu system
  • Filter Replaced at The Same Time as Lamp: The filter only needs to be cleaned when a new lamp is fitted, potentially halving disruption due to maintenance
  • Vertical Keystone Adjustment: The projector can correct keystone distortion by +/-5% for perfect installation adjustment to the smart board or screen
  • Digital Zoom: With digital zoom, users can enlarge a selected area of a computer-sourced image on the screen up to four times
  • Six Picture Modes: The VPL-SX535 has six available picture modes for correct picture quality; dynamic, standard, game, living, cinema and presentation
  • 3LCD BrightEra Technology: The Sony 0.63" BrightEra inorganic TFT 3LCD panels deliver improved panel light resistance, higher resolution, high brightness and increased panel reliability
  • Smart APA (Auto Pixel Alignment): When a computer is used as a picture source, APA automatically optimizes phase, pitch and shift values. These can also be adjusted manually
  • Auto Input Search: Auto input search detects which input has an incoming signal and automatically switches to it. This makes it easier for users to set up the projector prior to making a presentation
  • Picture Muting/Audio Muting: If there is a need to blackout the image or turn off the audio from the projector, all it takes is a single button-press on the remote control. One button will mute audio and image at the same time. There is also a separate mute audio button for audio only muting
  • Audio Switcher Facility: To avoid the need for a separate audio switcher, the projector can be used to select between two audio sources, routing them via a variable audio output to the room amplification system
  • Picture Freeze Function: Picture freeze is useful during presentations where users need to look at other material on their PC's screen without the viewing audience being aware. Freeze the current image and users can use their PC independently of the display from the projector
  • Off and Go: At the end of a presentation, users can turn off the power supply to the projector immediately, instead of going through a power down cycle
  • Direct Power On/Off: With this function, there is no need to go through standby mode when powering up the projector. The projector can be set to activate as soon as power is supplied
  • Built-In Security Measures: The VPL-SX535 has a package of security measures, including password protection and physical anti-theft anchor points

Technical Specs

Projector Display System 0.63" (16mm) x 3, BrightEra
Native Resolution 1024 x 768
Number of Pixels 2,359,296 (1024 x 768 x 3)
Lumens Brightness High/standard/low: 3000/2400/2000 lumens
Contrast Ratio 2500:1
Aspect Ratio 4:3
Lens Manual
Focus/Zoom Adjusting Digital zoom: x 4
Lens Shift V: +/ 4.6%, H: +/- 3.4%
Throw Ratio 0.34-0.36:1
Lamp (Bulb) 210W high-pressure mercury lamp
Lamp life: 3000/4500/6000 hours (high/standard/low modes)
Filter cleaning cycle: 6000 hours maximum
Recommended Projection Size 60-110" (1.5-2.8 m)
Built-in Speaker 1W x1 mono
Scanning Frequency Horizontal: 14-93kHz
Vertical: 47-93Hz
System Video system: NTSC, PAL, SECAM
Color system: Auto/NTSC3.58, PAL, SECAM, NTSC4.43, PAL-M, PAL-N
Computer Input Maximum input signal resolution: 1600 x 1200 (resizing display)
Panel display resolution: 1024 x 768 pixels
HDTV Compatibility 480/60i, 576/50i, 480/60p, 576/50p, 720/60p, 720/50p, 1080/60i, 1080/50i
Keystone Correction Vertical: Max. +/-5Deg.
Ceiling Mountable Yes
Rear Screen Projection Yes
Projection Tilt Option Yes
Languages 20-languages (English, Dutch, French, Italian, German, Spanish, Portuguese, Turkish, Polish, Russian, Swedish, Norwegian, Japanese, Simplified Chinese, Traditional Chinese, Korean, Thai, Vietnamese, Arabic, Persian)
Inputs/Outputs 1 Input A: RGB /YPBPR input connector: Mini D-sub 15-pin (female) x 1, audio input connector: stereo mini jack x 1
Input B: RGB input connector: Mini D-sub 15-pin (female) x 1, audio input connector: stereo mini jack x 1
S-video in: S-video input connector: Mini DIN 4-pin x 1, audio input
Inputs/Outputs 2 Connector: RCA (shared with video in) x 1
Video in: Video input connector: Pin jack x 1, audio input connector: RCA (shared with S-video in) x 1
Output: Monitor output connector: Mini D-sub 15-pin (female) x 1, audio output connector: stereo mini jack (variable out) x 1
RS-232C connector: D-sub 9-pin (male) x 1
LAN connector: RJ-45 x 1, 10BASE-T/100BASE-TX
Fan Noise 28dB (low)
Operating Conditions Operating: 32 -104Deg.F (0 -40Deg.C)
Humidity: 35-85% (no condensation)
Storage: -4-120Deg.F (-20-60Deg.C)
Humidity: 10-90%
Power Requirements AC 100-240 V, 3-1.3 A, 50/60Hz
Power Consumption Normal:
AC 100-120 V: 310W (high brightness mode)
AC 220-240 V: 300W (high brightness mode)
Standby mode:
AC 100-120 V: 8W/0.3W (standby mode: standard/low)
AC 220-240 V: 8W/0.3W (standby mode: standard/low)
Heat Dissipation AC 100-120 V: 1056 BTU
AC 220-240 V: 1023 BTU
Remote Control Yes
Dimensions aith protrusion: 15.1 x 6.3 x 16.7" (384.4 x 161.1 x 423.4mm)
Without protrusion: 15.1 x 4.8 x 16.7" (384.4 x 122.5 x 423.4mm)
Weight 15.4 lb. (7 kg) (Without protrusion)
