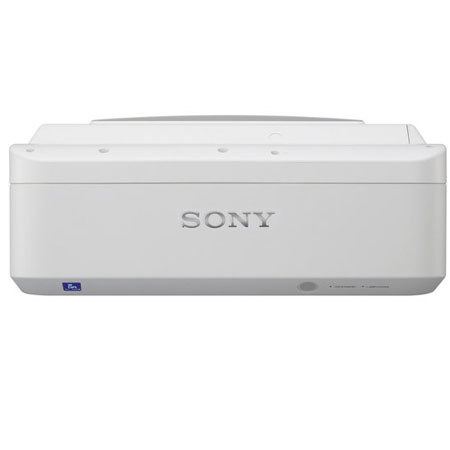

Sony VPL-SX536M 3000 lm XGA Ultra Short Throw Projector with Mount

Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$1,800.00 List Price

Our Price


Add to Wishlist In Stock

Protect your investment

About the Sony VPL-SX536M

The Sony VPL-SX536M XGA Ultra Short Throw Projector with Mount is an ideal choice for teaching and training applications with ultra short throw projection produces a 80"" diagonal wide image from only 1.9 feet away from the screen, which reduces glare from the projector even a presenter stands in front of the screen. Auto lamp dimming, max 6000h synchronized lamp and filter maintenance timing helps reduce total cost of ownership. It is further packed with diverse features to meet demanding A/V needs. The variety of inputs allow the projector to fit a broad range of applications (inputs include; 2xRGB, HDMI, USB, Microphone inputs).

High wattage 16W speaker eliminates the need for external speakers. Remote control of multiple projectors can be performed via a LAN (wired) network. Users can also project images over a wired LAN or a wireless network (an optional IFU-WLM3 wireless USB dongle is required for wireless connection). A USB Media Viewer allows users to directly project image files stored on a USB memory device. The projector ships with Sony's unique wall mount kit which provides ease of installation adjustment.

Sony VPL-SX536M Includes

  • Sony VPL-SX536M 3000 lm XGA Ultra Short Throw Projector
  • Mount
  • RM-PJ8 Remote Commander
  • CR2025 Battery
  • AC Power Cord
  • Wall Mount Bracket
  • Software
  • Sony 3 Year Warranty (Projector)
  • Sony 90 Day Warranty (Lamp)

Sony VPL-SX536M Features

  • 3000 lumens 3LCD Projector
  • Ultra Short Throw Projection (0.34-0.36:1)
  • Up to 6000h expected lamp life
  • Versatile inputs including HDMI, 2xRGB, Mic Input
  • RJ45 for network control and monitoring
  • USB image viewer Function
  • Equipped with Bright Era 3LCD Panels
  • 12 bit 3D Digital Gamma Correction
  • Auto Lamp Dimming Function
  • Eco Mode for savings on energy
  • Synchronized Lamp and Filter maintenance timing
  • Designed to blend in visually
  • Closed Captioning

Sony VPL-SX536M Specifications

Color Light Output 3000 lumens (lamp mode: high), 2400 lumens (standard), 2000 lumens (low)
Light Output 3000 lumens (lamp mode: high), 2400 lumens (standard), 2000 lumens (low)
Contrast Ratio 2,500:1
Lamp High-pressure mercury lamp 210 W type
Lamp Life 3000H(lamp mode: High) / 4500H(Standard) / 6000H(Low)
Projection Lens Zoom/Focus -Approx. 1.05x manual zoom / Manual focus
Throw Ratio 0.34 to 0.36:1
Screen Coverage 60-110" (152.40-279.40cm)
S-Video Input Mini DIN-4pin Audio: Pin jack x2 (shared with VIDEO IN)
Composite Video Input RCA phono jack, Audio: Pin jack x2 (shared with S VIDEO IN)
Analog RGB/Component Input Mini D-sub 15-pin (RGB) x1, Mini D-sub 15-pin (RGB/Y Pb Pr) x1 / Audio: Stereo mini jack
Digital Input HDMI (Digital RGB/Y Pb Pr, Digital Audio), HDCP Support
Network RJ-45: 10Base-T / 100Base-TX, Optional wireless image transfer (IFU-WLM3)
Monitor Output Mini D-sub 15-pin (from Analog RGB input)
Variable Audio Output Stereo mini jack (variable out)
Remote Control RS232C (D-sub 9pin)
Color System NTSC3.58, PAL, SECAM, NTSC4.43, PAL-M, PAL-N
Acceptable Computer Signals Maximum display resolution: 1600x1200 dots
Acceptable Video Signals Video(Composite), 15k(480/60i, 575/50i), DTV (480/60p, 575/50p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/60p, 1080/50p)
Power Requirements AC 100V to 240V, 3.1 A to 1.4 A, 50 Hz/60 Hz
Power Consumption 309W (AC 100V-120V)
Speaker 16Wx1 (monaural)
Dimensions (WxHxD) 15.12x4.81x16.65" (38.40x12.21x42.29cm)
Weight 6.9kg /15 lb 3 oz
