Sony WRT-8P Wireless UHF Plug-On Transmitter 42/44
Sony

Sony WRT-8P Wireless UHF Plug-On Transmitter 42/44

SKU: SOWRT8P4244 MFR: WRT8P/4244
What's Included
What's Included With This Item:
  • Sony WRT-8P Wireless UHF Plug-On Transmitter
  • 3-Pin XLR Connector
  • Sony Warranty
Write a Review
Ways to Save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$940.00
Free Shipping (USA)
Qty:

Add to Wishlist
OverviewFeaturesTech Specs
Its never too late...Click by 8! Same day shipping.

About this item

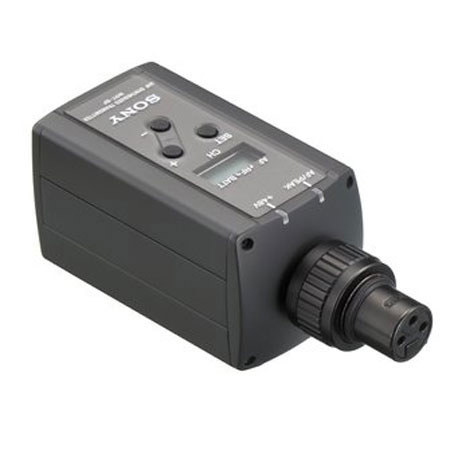

The Sony WRT-8P is a versatile XLR plug-on transmitter 42/44 for the WL-800 series UHF wireless microphone system. The WRT-8P enables standard handheld microphones to transmit wireless signal. The WRT-8P also accepts line level signal for transmitting wireless signal from mixers, recorder/player devices, etc. The WRT-8P features 188 selectable UHF frequencies within a 24 MHz range.

Output power may be switched between 50mW and 250mW for enhanced range in areas with high radio-frequency traffic. The transmitter operates up to 4 hours (50mW) on a single 9-volt battery and supplies +48V phantom power to condenser microphones. The WRT-8P is a versatile transmitter for any application and is an ideal ENG solution when paired with the Sony F-112 news gathering microphone.

What's Included With This Item

  • Sony WRT-8P Wireless UHF Plug-On Transmitter
  • 3-Pin XLR Connector
  • Sony Warranty

Key Features

  • Converts a wired microphone to a wireless microphone via an XLR-type connector
  • Compact and lightweight metal body provides high durability and good balance with compatible microphones
  • 250 mw high RF output power for stable long-distance transmission
  • Selectable RF output power: 250 mw/50 mw
  • +48 v power supply capability
  • Switchable input level: MIC/LINE
  • Attenuator function allows adjustment of the audio-input level
  • A backlit LCD provides extensive information
  • Optimized balance when combined with the F-112 dynamic microphone
  • Operates on UHF-TV Channels 42/44

Technical Specs

Compatibility For use with WL-800 Series wireless products operating on the same frequencies
Oscillator Crystal controlled PLL synthesizer
Type Of Emission 110KF3E
Carrier Frequencies UHF-TV Channels 42/44 (42,43,44 and 45), 638.125 MHz to 661.875 MHz
RF Power Output 250 mW or 50 mW
Pilot Tone Signal 32.768 kHz
Audio Input Level Max. -20 dBV ( MIC, ATT=0 dB) Max. +22 dBu ( LINE, ATT=0 dB)
Audio Input Connector XLR-3, female
Display Backlit LCD
Power Requirements DC 9.0 V (one 6LR61 alkaline battery)
Battery Life Approx. 2.5 hours at 250 mW output. Approx. 4 hours at 50 mW output
Dimensions 1-3/4 x 4-1/4 x 1-3/4"(4.44 x 10.79 x 4.44 cm)
Weight 8.1 oz. /229.63 g (including battery)
