SVAT Electronics

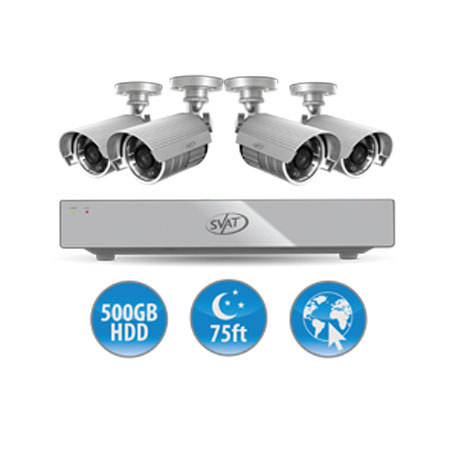

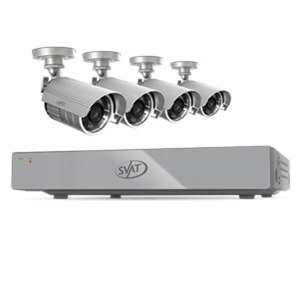

SVAT Electronics 8 Channel Smart Security DVR 4 Outdoor 75' Night Vision Security Cameras with IR Cut Filter 500GB HDD, PC & Mac Compatible

SKU: SV11022 MFR: 11022
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

Free Shipping

Add to Wishlist In Stock

About this item

The SVAT Electronics 8-Channel High Resolution Outdoor Night Vision Security Camera keeps such a close eye over all you hold dear to be complex. You'll be surprised how easily this SVAT system operates. It functions just like a computer, with a mouse for pointing and clicking and an intuitive icon-based Smart Menu that provides prompts and coaching to assist you in navigating the system. It's even so simple to use, it will begin recording as soon as it's plugged in.

Your security system is only worthwhile if you can actually see the person stealing from you. SVAT cameras are equipped with 480 TV lines of resolution and the DVR records in D1 resolution, which is the equivalent of 704 x 480 pixels or DVD quality. The resulting clear, crisp and accurate video feed will help put the criminal away. The things that go bump in the night are sometimes a thief making off with your big-screen TV. SVAT cameras are equipped with night vision that automatically activates. Thirty-six infrared ClearVu LEDs provide crisp and detailed night imagery as you monitor from up to 100 feet away, even in complete darkness. So thieves may think they're lurking in the dark but you can rest assured SVAT will see them.

Everyone needs a vacation to get away from it all. With SVAT you can enjoy yourself with peace of mind, knowing you can view your camera footage live online, anytime and anywhere. On either a PC or Mac you can use such search engines as Internet Explorer or Safari. You can also view footage on almost any smartphone, including iPhone, BlackBerry, Android, Windows Mobile, or Symbian, as well as on your iPad and most major tablets. Whether monitoring your business or home, you will always feel in control.

The included 500 GB hard drive allows continuous monitoring and recording of over two years' worth of footage. Your DVR sends an alert when your memory space is full so that you can choose to overwrite old video or stop the unit from recording. The built-in USB port gives you the option of backing up and transferring your video footage with a USB flash drive or external USB hard drive. And if you need to expand your storage even further, you can choose to record only when motion is detected. This DVR uses H.264 compression, which maximizes recording time, transfers data more efficiently over the Internet and you'll use 50% less storage space than traditional compressions - MPEG4, MJPEG - while still benefitting from high-quality imagery.

You will instantly know if any suspicious activity is happening on your property. This SVAT system is designed to send you an e-mail alert, complete with photo, if any motion is detected on your property or if any of your cameras experience video loss. You'll always be in the know, no matter where you are. Criminals don't take the night off if it's raining. Neither do SVAT cameras. They're weather resistant and ensure optimal picture quality no matter what Mother Nature decides to throw at you, be it rain, hail or snow. The professional-grade aluminum housing, complete with sunshade, will protect against rust, deterioration and glare. So no matter what's going on outside, SVAT will be ready.

Thieves know dismantling a security system is a good way to get off scot free. But they'll be disappointed with SVAT. Each camera's cable runs through the cable mount and then directly into the wall, leaving no part of the cable exposed. Your footage will be secure.

What's Included With This Item

  • SVAT Electronics 4 x Outdoor Security Cameras
  • DVR with 500GB HDD
  • 4 x 65' Extension Cables
  • Power Adapter
  • Four-to-One Power Splitter
  • Mounting Hardware
  • 2 x BNC to RCA Connectors
  • 10' RJ-45 Ethernet Cable
  • 6' Power Adapter (cUL Certified)
  • 6' RCA Video Cable
  • Instruction Manual & Software CD
  • USB Mouse
  • IR Remote Controller with Batteries
  • Quick Start Guide
  • Window Warning Stickers
  • SVAT Electronics 1 Year Warranty

Summary of Customer Reviews


Key Features

  • Camera: High-resolution imagery
  • Camera: Automatic night vision
  • Camera: Weather-resistant housing
  • Camera: Anti-vandal mount
  • Camera: Easily connect to DVR
  • DVR: Easy-to-use system
  • DVR: View anytime, anywhere
  • DVR: Email alerts
  • DVR: Record over 2 years of footage
  • DVR: Motion-Activated Recording

Technical Specs

Camera: Image Sensor 1/4" CMOS
Camera: Resolution 480 TVL
Camera: Outdoor Use Yes
Camera: IP Rating IP65
Camera: Focal Length 5mm
Camera: Focus Type Fixed
Camera: Optimal Focal Distance 20 ft.
Camera: Night Vision Yes
Camera: Number of IR LEDs and Range 24
Camera: Night Vision Range 75ft
Camera: IR LED Control Automatic (CDS Sensor)
Camera: Min. Illumination 0 lux
Camera: IR Wavelength 850nm
Camera: Video Output BNC/DC
Camera: TV System NTSC
Camera: Viewing Angle 60 Degrees
Camera: Electronic Shutter 1/60 - 1/100000 sec
Camera: AGC Automatic
Camera: ELC Automatic
Camera: Gamma Correction >0.45
Camera: White Balance Automatic
Camera: Sun Shield Yes
Camera: IR Cut Filter No
Camera: Housing Material Anodized Aluminum
Camera: Signal/Noise Ratio >48dB
Camera: Camera Bracket Yes, anti-vandal
Camera Power Input DC 12V 300mA
Camera: Power Adapter Input 120V 60Hz
DVR: Video Compression H.264
DVR: Audio Compression G.711
DVR: Number of Channels 4
DVR: Video Input 4/8 x BNC
DVR: Video Output 2 x BNC
DVR: Audio Input 2 x RCA
DVR: Audio Output 1 x RCA
DVR: USB Port 2
DVR: Resolution 800x600, 1024x768, 1280x1024
DVR: Recording Total Frame Rate NTSC: 60fps@D1, 120fps@HD1, 120 fps@CIF
PAL: 50fps@D1, 100fps@HD1, 100fps@CIF
DVR: Recording Frame Rate Per Channel NTSC: 1fps-30fps adjustable
PAL: 1fps-25fps adjustable
DVR: Recording Resolution NTSC: D1(704 X 480), HD1(704 X 240), CIF(352 X 240) / PAL: D1(704 X 576), HD1(704 X 288), CIF(352 X 288)
DVR: Recording Modes Motion Record, Schedule, Always
DVR: Pre Recording Max 10 seconds
DVR: Post Recording Max 5 minutes
DVR: Recording Media HDD (Backup via USB)
DVR: Storage Capacity Max 1TB HDD
HDD Type SATA 3.5"
Storage Capacity Max 1TB (HDD),
Video Format NTSC/PAL
Video Loss Alarm Auto Detect Alarm
Audio Bitrates 8 kbps
Live Frame Rate 30 FPS
Live Viewing Full, Quad, PIP, ZOOM, SEQ
Picture-in-Picture Yes
Network Protocol TCP/IP, DDNS, DHCP, PPPoE, UDP
Network LAN IP Static, Dynamic
Network Connection 10/100 BaseT Ethernet (RJ-45)
Supported Operating Systems Windows XP, Windows Vista, Windows 7OSX 10.5 or above
Browsers Internet Explorer, Safari
Back-up USB Flash drive, USB disk & network
Play Search Mode Time/Date, Event list
Play Speed 2x, 4x, 8x, 16x
Pan/Tilt/Zoom RS-485 Pelco D & P
OSD Language Display Multi-Language
Time and Date Stamp Display Yes
Password Protection Yes, Menu Password, Clear HDD Password
Operating System Linux
Processor ARM 9
Disk Full Warning Yes
Automatic Overwrite Option Yes
LED Indicators Power, HDD
Housing Material Aluminum
Power Input 12V DC 3A
Power Consumption 10W-15W
Power Adapter Input 100V 50/60HZ-240 50/60HZ
Operating Temperature 32deg.F-104deg.F
Camera: -10deg. - 60deg.C / Degrees
Operating Humidity 10%-90%
Camera: 98%
Dimensions Camera: 5.5 x 2.25 x 3" /13.97 x 5.71 x 7.62cm
DVR: 8.75 x 11 x 2" / 22.22 x 27.94 x 5.08cm
Weight 0.75 lbs / 0.34 kg
3.75 lbs / 1.70kg
