SVAT Electronics

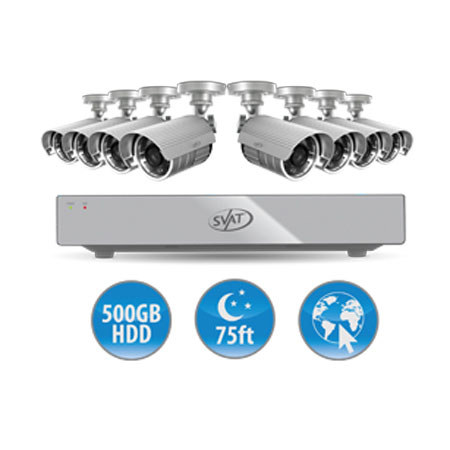

SVAT Electronics 8CH Smart Security DVR 8 Hi-Res Outdoor 75' Night Vision Cameras 500GB HDD & Smartphone Compatibility

SKU: SV11023 MFR: 11023
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

Free Shipping

Add to Wishlist In Stock

About this item

The SVAT Electronics 8CH Smart Security DVR 8 Hi-Res Outdoor Security Camera functions are just like a computer, with a mouse for pointing and clicking and an intuitive icon-based menu that provides prompts and coaching to assist you in navigating the system. It's even so simple to use, it will begin recording as soon as it's plugged in.

SVAT Electronics security system is only worthwhile if you can actually see the person stealing from you. SVAT cameras are equipped with 480 TV lines of resolution and the DVR records in D1 resolution, which is the equivalent of 704 x 480 pixels or DVD quality. The resulting clear, crisp and accurate video feed will help put the criminal away.

With SVAT, you can enjoy yourself with peace of mind, knowing you can view your camera footage live online, anytime and anywhere. On either a PC or Mac, you can use such search engines as Internet Explorer or Safari. You can also view footage on almost any smartphone, including iPhone, BlackBerry, Android, Windows Mobile, or Symbian, as well as on your iPad and most major tablets. Whether monitoring your business or home, you will always feel in control.

What's Included With This Item

  • SVAT Electronics DVR with 500GB HDD
  • 8 x Outdoor Security Cameras
  • 8 x 65ft Extension Cables
  • Power Adapter
  • Four-to-One Power Splitter
  • Mounting Hardware
  • 2 x BNC to RCA Connectors
  • 10ft RJ-45 Ethernet Cable
  • 6ft Power Adapter (cUL Certified)
  • 6ft RCA Video Cable
  • Instruction Manual & Software CD
  • USB Mouse
  • IR Remote Controller with Batteries
  • Quick Start Guide
  • Window Warning Stickers
  • SVAT Electronics 1 Year Warranty

Key Features

  • Two years worth of footage storage and more if you need it: The included 500GB hard drive allows continuous monitoring & recording of over 2 years worth of footage. Your DVR sends an alert when your memory space is full so that you can choose to overwrite old video or stop the unit from recording
  • When everyone else is asleep, the cameras are watching closely: The things that go bump in the night are sometimes a thief making off with your big-screen TV. SVAT cameras are equipped with night vision that automatically activates
  • Rain or Snow won't stop us: Criminals don't take the night off if it's raining. Neither do SVAT's cameras. They're weather resistant and ensure optimal picture quality no matter what Mother Nature decides to throw at you, be it rain, hail or snow
  • Instant email alerts if activity detected: You will instantly know if any suspicious activity is happening on your property. This SVAT system is designed to send you an email alert, complete with photo, if any motion is detected on your property or if any of your cameras experience video loss

Technical Specs

DVR: Functionality Pentaplex
DVR: Video Compression H.264
DVR: Audio Compression G.711
DVR: Number of Channels 8
DVR: Video Input 4/8 x BNC
DVR: Video Output 2 x BNC
DVR: Audio Input 2 x RCA
DVR: Audio Output 1 x RCA
DVR: USB Port 2
DVR: Resolution 800x600, 1024x768, 1280x1024
DVR: Recording Total Frame Rate NTSC:60fps@D1 120fps@HD1 120 fps@CIF
PAL:50fps@D1 100fps@HD1 100fps@CIF
DVR: Recording Frame Rate Per Channel NTSC: 1fps-30fps adjustable
PAL: 1fps-25fps adjustable
DVR: Recording Resolution NTSC: D1(704 X 480), HD1(704 X 240), CIF(352 X 240)
PAL: D1(704 X 576), HD1(704 X 288), CIF(352 X 288)
DVR: Recording Modes Motion Record, Schedule, Always
DVR: Pre Recording Max 10 seconds
DVR: Post Recording Max 5 minutes
DVR: Recording Media HDD (Backup via USB)
DVR: HDD Type SATA 3.5"
DVR: Storage Capacity Max 1TB (HDD)
DVR: Video Format NTSC/PAL
DVR: Video Loss Alarm Auto Detect Alarm
DVR: Audio Bitrate 8 kbps
DVR: Live Frame Rate 30 FPS
DVR: Live Viewing Full, Quad, PIP, ZOOM, SEQ
DVR: Picture-in-Picture Yes
DVR: Network Protocol TCP/IP, DDNS, DHCP, PPPoE,UDP
DVR: Network LAN IP Static, Dynamic
DVR: Network Connection 10/100 BaseT Ethernet (RJ-45)
DVR: Supported Operating Systems Windows XP, Windows Vista, Windows 7, OSX 10.5 or above
DVR: Browsers Internet Explorer, Safari
DVR: Back-up USB Flash drive, USB disk & network
DVR: Play Search Mode Time/Date, Event list
DVR: Play Speed 2x, 4x, 8x, 16x
Pan/Tilt/Zoom RS-485 Pelco D & P
DVR: OSD Language Display Multi-Language
DVR: Time and Date Stamp Display Yes
DVR: Password Protection Yes, Menu Password, Clear HDD Password
DVR: Operating System Linux
DVR: Processor ARM 9
DVR: Disk Full Warning Yes
DVR: Automatic Overwrite Option Yes
DVR: LED Indicators Power, HDD
DVR: Housing Material Aluminum
DVR: Power Input 12V DC 3A
DVR: Power Consumption 10W-15W
DVR: Power Adapter Input 100V 50/60HZ-240 50/60HZ
DVR: Operating Temperature 32deg.F-104deg.F
DVR: Operating Humidity 10%-90%
Cameras: Image Sensor 1/4" CMOS
Cameras: Resolution 480 TVL
Cameras: Outdoor Use Yes
Cameras: IP Rating IP65
Cameras: Focal Length 5mm
Cameras: Focus Type Fixed
Cameras: Optimal Focal Distance 20 ft.
Cameras: Night Vision Yes
Cameras: Number of IR LEDs and Range 24
Cameras: Night Vision Range 75ft
Cameras: IR LED Control Automatic (CDS Sensor)
Cameras: Min. Illumination 0 lux
Cameras: IR Wavelength 850nm
Cameras: Video Output BNC/DC
Cameras: TV System NTSC
Cameras: Viewing Angle 60 Degrees
Cameras: Electronic Shutter 1/60 - 1/100000 sec
Cameras: AGC Automatic
Cameras: ELC Automatic
Cameras: Gamma Correction >0.45
Cameras: White Balance Automatic
Cameras: Sun Shield Yes
Cameras: IR Cut Filter No
Cameras: Housing Material Anodized Aluminum
Cameras: Signal/Noise Ratio >48dB
Cameras: Camera Bracket Yes, anti-vandal
Cameras: Operating Temperature -10deg. - 60deg.C / Degrees
Cameras: Operating Humidity 98%
Cameras: Camera Power Input DC 12V 300mA
Cameras: Power Adapter Input 120V 60Hz
Dimensions Cameras: 5.5 x 2.25 x 3" / 13.9 x 5.71 x 7.62 cm
DVR: 8.75 x 11 x 2" / 22.2 x 27.9 x 5.08 cm
Weight DVR: 3.75 lbs / 1.70 kg
Cameras: .75 lbs / 0.34 kg
