SVAT Electronics

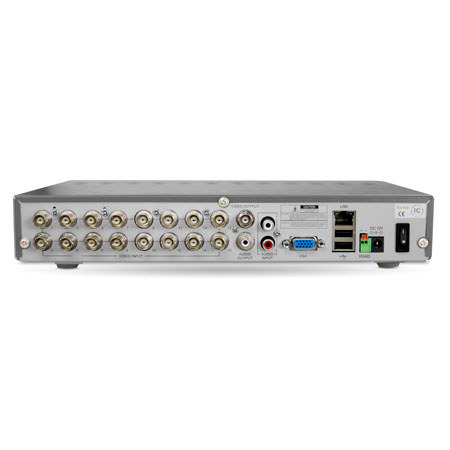

SVAT Electronics 16Ch Smart Security DVR with 500GB HDD, iPhone, Android, Blackberry, iPad, PC & Mac Compatible

SKU: SV11040 MFR: 11040
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$199.00
Qty:
Add to Wishlist In Stock

About the SVAT Electronics 16Ch Smart Security DVR

You'll be surprised by how easily a SVAT Electronics DVR Security System operates. The menu provides prompts and coaching to assist you in customizing the settings for your recording needs. Use your choice of mouse or remote for navigation of the easy-to-read icon-based menu. It's so simple to use it will even begin recording as soon as it's plugged in.

Access live footage of your home or business online, anytime and anywhere. Using a smartphone, tablet or computer you will always be able to see what you otherwise may have missed without your SVAT Security System. Whether you are around the block or around the world, you will always feel in control.

The included 500GB hard drive allows for continuous monitoring and can store over two years' worth of recorded footage. Your DVR will send an alert when your memory space is full so you can choose to overwrite old video or stop recording. Back up and transfer your video footage with a USB flash drive or external USB hard drive with the built-in USB port. And if you need to expand your storage even further, you can choose to record only when motion is detected. This DVR uses H.264 compression which maximizes recording time, transfers data more efficiently over the internet and you'll use 50% less storage space than traditional compressions - MPEG4, MJPEG - while still benefitting from high-quality imagery.

This system is ready for you to add up to 16 surveillance cameras allowing you to monitor every corner and doorway of your property. Ideal for businesses with a large staff and multiple storage areas or large residential and rural properties, a 16CH system allows you to have maximum monitoring locations both indoor and out.

You will instantly know if any suspicious activity is happening on your property. This system will send you an email alert, complete with a photo of the activity, if any motion is detected or if cameras experience video loss. Even if you aren't watching when something happens, you'll know immediately if something is wrong.

SVAT Electronics 16Ch Smart Security DVR Includes

  • SVAT Electronics 16CH DVR with 500GB HDD
  • 1 x BNC to RCA Connectors
  • 10' RJ-45 Ethernet Cable
  • 6' Power Adapter (cUL Certified)
  • 6' RCA Video Cable
  • Instruction Manual & Software CD
  • USB Mouse
  • IR Remote Controller with Batteries
  • Quick Start Guide
  • Window Warning Stickers
  • SVAT Electronics Warranty

SVAT Electronics 16Ch Smart Security DVR Features

  • Easy-to-use system functions just like a computer
  • View anytime, anywhere with remote viewing via internet, smartphone and tablet
  • Receive email alerts, with photo, when motion is detected on your property
  • Record over 2 years' worth of footage on the included 500GB hard drive
  • Choose motion-activated recording or H.264 compression to maximize storage space
  • Add up to 16 cameras for large property monitoring

SVAT Electronics 16Ch Smart Security DVR Specifications

DVR Functionality Pentaplex
Video Compression H.264
Audio Compression G.711
Number of Channels 16
Video Input 16 x BNC
Video Output 2 x BNC
VGA
Audio Input 2 x RCA
Audio Output 1 x RCA
USB Port 2
Resolution 800x600, 1024x768, 1280x1024
Recording Total Frame Rate NTSC: 480 fps at CIF
PAL: 400fps at CIF
Recording Frame Rate Per Channel NTSC: 1fps - 30fps adjustable
PAL: 1fps - 25fps adjustable
Recording Resolution NTSC: CIF(352 X 240)
PAL: CIF(352 X 288)
Recording Modes Motion Record, Schedule, Always
Pre Recording Max 10 seconds
Post Recording Max 5 minutes
Recording Media HDD (Backup via USB)
HDD Type SATA 3.5"
Storage Capacity Max 2TB
Video Format NTSC/PAL
Video Loss Alarm Auto Detect Alarm
Audio Bitrate 8 kbps
Live Frame Rate 30 FPS
Live Viewing Full, Quad-view, Oct-view, 16-view, SEQ
Picture-in-Picture Yes
Network Protocol TCP/IP, DDNS, DHCP, PPPoE,UDP
Network LAN IP Static, Dynamic
Network Connection 10/100 BaseT Ethernet (RJ-45)
Supported Operating Systems Windows XP, Windows Vista, Windows 7
OSX 10.5 or above
Browsers Internet Explorer, Safari
Back-up USB Flash drive, USB disk & network
Play Search Mode Time/Date, Event list
Play Speed 2x, 4x, 8x, 16x
Pan/Tilt/Zoom RS-485 Pelco D & P
OSD Language Display Multi-Language
Time and Date Stamp Display Yes
Password Protection Yes, Menu Password, Clear HDD Password
Operating System Linux
Processor ARM 9
Disk Full Warning Yes
Automatic Overwrite Option Yes
LED Indicators Power, HDD
Housing Material Aluminum
Power Input 12V DC 3A
Power Consumption 10W-15W
Power Adapter Input 100V 50/60HZ-240 50/60HZ
Operating Temperature 32deg.F- 104deg.F
Operating Humidity 10% - 90%
Dimensions 11.75x8.5x3.75" / 29.84x21.59x9.52cm
Weight 3.75 lbs / 1.70kg
