SVAT Electronics

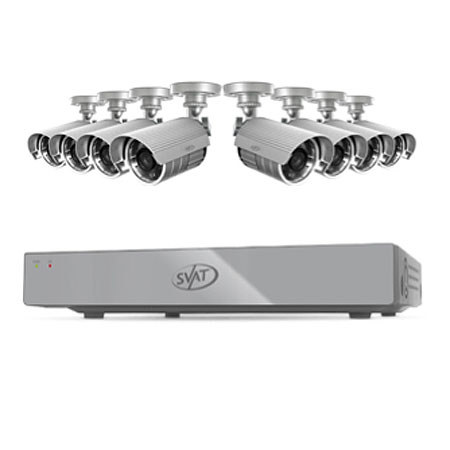

SVAT Electronics 16Ch H.264 500GB Smart Security DVR with 8 Hi-Res Outdoor Surveillance Cameras, 75' Night Vision

SKU: SV11044 MFR: 11044
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$299.00 $12 per week
Qty:
Add to Wishlist In Stock

About this item

Trust SVAT Electronics to make thieves and vandals think twice about approaching your property. The SVAT Electronics 16Ch H.264 500 GB Smart Security DVR with 8 Hi-Res Outdoor Surveillance Cameras functions just like a computer, with a mouse for pointing and clicking and an intuitive icon-based menu for easy set-up and use. View anytime, anywhere with remote viewing via Internet, smartphone and tablet and receive e-mail alerts, with photo, when motion is detected on your property. Record over 2 years' worth of footage on the included 500 GB hard drive. All-weather cameras deliver clear, hi-res video with 4800TVL and 24 IR LEDs allow for 75 ft of automatic night vision. Anti-vandal mount ensures cameras cannot be tampered with and 65 ft of cable allows for greater flexibility in mounting.

What's Included With This Item

  • SVAT Electronics 16CH DVR with 500GB HDD
  • 8 x Outdoor Surveillance Cameras
  • 8 x 65' Extension Cable
  • 2 x Power Adapters
  • Mounting Hardware
  • 1 x BNC to RCA Connectors
  • 10' RJ-45 Ethernet Cable
  • 6' Power Adapter (cUL Certified)
  • 2 x Four to One Power Splitter
  • 6' RCA Video Cable
  • Instruction Manual & Software CD
  • USB Mouse
  • IR Remote Controller with Batteries
  • Quick Start Guide
  • Window Warning Stickers
  • SVAT Electronics Warranty

Key Features

  • Easy-to-use system functions just like a computer
  • 480TVL Hi-Res cameras provide crisp and detailed video
  • 24IR LEDs for 75ft Automatic night vision
  • View anytime, anywhere with remote viewing via internet, smartphone and tablet
  • Receive email alerts, with photo, when motion is detected on your property
  • Record over 2 years' worth of footage on the included 500 GB hard drive
  • Weather-resistant housing camera housing provides superior functioning through all types of weather

Technical Specs

DVR Functionality Pentaplex
DVR: Video Compression H.264
DVR: Audio Compression G.711
DVR: Number of Channels 16
DVR: Video Input 16 x BNC
DVR: Video Output 2 x BNC
VGA
DVR: Audio Input 2 x RCA
DVR: Audio Output 1 x RCA
DVR: USB Port 2
DVR: Resolution 800x600, 1024x768, 1280x1024
DVR: Recording Total Frame Rate NTSC: 480 fps at CIF
PAL: 400fps at CIF
DVR: Recording Frame Rate Per Channel NTSC: 1fps - 30fps adjustable
PAL: 1fps - 25fps adjustable
DVR: Recording Resolution NTSC: CIF(352 X 240)
PAL: CIF(352 X 288)
DVR: Recording Modes Motion Record, Schedule, Always
DVR: Pre Recording Max 10 seconds
DVR: Post Recording Max 5 minutes
DVR: Recording Media HDD (Backup via USB)
DVR: HDD Type SATA 3.5"
DVR: Storage Capacity Max 2TB
DVR: Video Format NTSC/PAL
DVR: Video Loss Alarm Auto Detect Alarm
DVR: Audio Bitrate 8 kbps
DVR: Live Frame Rate 30 FPS
DVR: Live Viewing Full, Quad-view, Oct-view, 16-view, SEQ
DVR: Picture-in-Picture Yes
DVR: Network Protocol TCP/IP, DDNS, DHCP, PPPoE,UDP
DVR: Network LAN IP Static, Dynamic
DVR: Network Connection 10/100 BaseT Ethernet (RJ-45)
DVR: Supported Operating Systems Windows XP, Windows Vista, Windows 7
OSX 10.5 or above
DVR: Browsers Internet Explorer, Safari
DVR: Back-up USB Flash drive, USB disk & network
DVR: Play Search Mode Time/Date, Event list
DVR: Play Speed 2x, 4x, 8x, 16x
DVR: Pan/Tilt/Zoom RS-485 Pelco D & P
DVR: OSD Language Display Multi-Language
DVR: Time and Date Stamp Display Yes
DVR: Password Protection Yes, Menu Password, Clear HDD Password
DVR: Operating System Linux
DVR: Processor ARM 9
DVR: Disk Full Warning Yes
DVR: Automatic Overwrite Option Yes
DVR: LED Indicators Power, HDD
DVR: Housing Material Aluminum
DVR: Power Input 12V DC 3A
DVR: Power Consumption 10W-15W
DVR: Power Adapter Input 100V 50/60HZ-240 50/60HZ
DVR: Operating Temperature 32deg.F - 104deg.F
DVR: Operating Humidity 10% - 90%
Camera: Image Sensor 1/4" CMOS
Camera: Resolution 480 TVL
Camera: Outdoor Use Yes
Camera: IP Rating IP65
Camera: Focal Length 5mm
Camera: Focus Type Fixed
Camera: Optimal Focal Distance 20'
Camera: Night Vision Yes
Camera: Number of IR LEDs 24
Camera: Night Vision Range 75ft
Camera: IR LED Control Automatic (CDS Sensor)
Camera: Min. Illumination 0 lux
Camera: IR Wavelength 850nm
Camera: Video Output BNC/DC
Camera: TV System NTSC
Camera: Viewing Angle 60 Degrees
Camera: Electronic Shutter 1/60 - 1/100000 sec
Camera: AGC Automatic
Camera: ELC Automatic
Camera: Gamma Correction >0.45
Camera: White Balance Automatic
Camera: Sun Shield Yes
Camera: IR Cut Filter No
Camera: Housing Material Anodized Aluminum
Camera: Housing Color Black
Camera: Signal/Noise Ratio >48dB
Camera: Camera Bracket Yes, anti-vandal
Camera: Operating Temperature -10deg. to 60deg.C
Camera: Operating Humidity 98%
Camera: Camera Power Input DC 12V 300mA
Camera: Power Adapter Input 120V 60Hz
Dimensions DVR: 11.75x8.5x3.75" / 29.84x21.59x9.52cm
Camera:5.5x2.25x3" / 13.97x5.71x7.62cm
Weight DVR: 3.75 lbs / 1.70kg
