SVAT Electronics

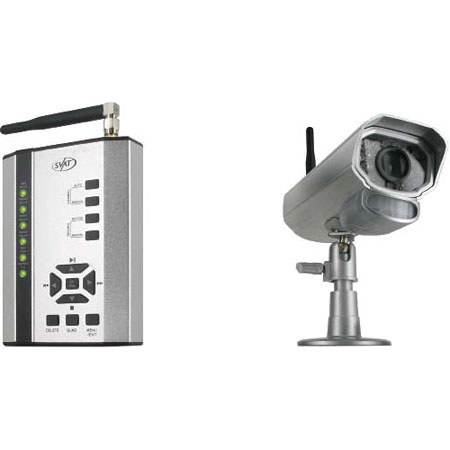

SVAT Electronics GX301-012 Digital Wireless DVR Security System with Receiver, SD Card Recording and Long Range Night Vision Camera

SKU: SVGX301012 MFR: GX301-012
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$139.95 $6 per week
Free Shipping
Add to Wishlist In Stock

About the SVAT Electronics GX301-012

The SVAT Electronics Digital Wireless DVR System with Receiver & Night Vision Camera allows you to record and monitor audio/video for up to 350 minutes with the included 2 GB SD card. Equipped with the digital wireless technology, the DVR system has a superior digital frequency (2400-2483.5 MHz) and captures clear video and audio up to a wireless range of 100'. The system comes with a compact receiver that can be connected to any television easily via A/V cable to view recording on a large screen.

With 18 IR LEDs effective up to 40', the Night Vision Camera provides clear imagery even in darkness. The LEDs get activated automatically in dark and deactivated during day time to save energy. Made of aluminum, the weather-resistant camera is suitable for indoor and outdoor use. It also includes a sun shield, which protects the camera from the direct rays of the sun. The DVR supports up to 4 cameras for monitoring multiple locations at the same time.

Motion detection triggers an alarm when motion is detected in a designated portion of the video display or the camera records only when motion is detected, conserving the SD card memory. With the 24/7 scheduled recording option, you can set each camera to record at a defined time as well as days and hours for recording. Using the included remote control, the system can be controlled from a distance.

SVAT Electronics GX301-012 Includes

  • SVAT Electronics Digital Wireless Camera with 8' (2.4m) Power Cord
  • DVR Receiver with SD Card Recording
  • 8' (2.4m) Power Adapter for Camera
  • 6' (1.8m) Power Adapter for Monitor
  • Camera Mounting Brackets
  • 6' (1.8m) AV to RCA Wire
  • Remote Control
  • 4 x Window Warning Stickers
  • Instruction Manual
  • SVAT Electronics 1 Year Warranty

SVAT Electronics GX301-012 Features

  • SD recording receiver - can be easily connected to any television via 6' A/V cable to view recoding on a large screen
  • SD card recording - includes a 2 GB SD card, which allows up to 350 minutes of audio/video recording
  • 1/4" CMOS sensor - delivers crisp and clear images at a resolution of 360TVL
  • Included 18 IR LEDs - effective up to 40' enables the night vision camera to capture clear images even in complete darkness
  • Weather-resistant camera - made of aluminum and is suitable for indoor and outdoor use
  • Sun shield - protects the camera from the direct rays of the sun
  • Expandable up to 4 cameras - for monitoring multiple locations at the same time
  • Compatible with SVAT's GX301-C
  • Motion detection - allows you to record only when motion is detected, saving the SD card memory for monitoring longer as well as set camera to trigger an audible alert sound when motion is detected in a designated portion of the video display
  • Scheduled recording for 24 hours - you can set each camera to record at a defined time as well as days and hours for recording
  • Supports 3 recording modes - manual, scheduled and motion activation
  • Remote control access - enables you to control the system from a distance via the monitor's joystick or remote control for fast operation

SVAT Electronics GX301-012 Specifications

Receiver: Frequencies Wireless Frequency: 2400-2483.5Mhz
Channel Frequencies: Hopping Frequency
Number of Supported Cameras 4
Output Terminals 1/8" to RCA A/V output
Resolution 640x480 or 320x240
Speaker Internal Buzzer
Built-In SD Card Slot Maximum SD Card Size 32 GB
Compression MPEG-4
File Format AVI
Operation Simplex
Recording Scheduled Recording: 24 Hour clock
Automatic Overwrite when Full: Optional
Post Motion Recording: 5, 15, 30 seconds
Audio Activated Recording: No
Recording Mode: Manual, Schedule
Motion Detection Motion Activated Alert: Compatible
Digital Zoom 1x, 2x
Scan Interval Auto-Scanning: Yes
Lock Button Lock: Yes
Remote Remote Control: IR
IR Remote Extension: 6' (1.8m)
Alert New Video Footage Notifier: Yes, LED
Display Mode Single, Quad, Manual, Automatic
Battery Operable No
Video Format PAL/NTSC
Operating Temperature 14 - 120deg.F (-10 - 49deg.C)
Operating Humidity 85%
Housing Housing Material: Aluminum and ABS Plastic
Housing Color: Silver and Black
Power Monitor Power Input: 9V DC - 600 mA
Power Adapter Input: AC 100 - 240 V 50/60Hz
Camera: Sensor 1/4" CMOS Color
Outdoor Yes
IP Rating IP56
Wireless Range Maximum Wireless Range (Line of Sight): 450' (137m)
Optimum Wireless Range (Line of Sight): 150' (46m)
Frequencies Wireless Frequency: 200-2483.5Mhz
Wireless Channel Frequencies: Hopping frequency
Resolution 360 TV Lines
IR Illumination Night Vision: Yes
Number of IR LEDs and Range: 18, up to 40' (12m)
IR LED control: Automatic (CDS Sensor
) IR Cut Filter: Yes
Minimum Illumination 0 lux
Battery Operable No
Viewing Angle 62deg
Video Format NTSC
Lens Focal Length: 4.5mm
Focus Type: Fixed Focus
Optimal Focal Distance: 20' (6m)
Microphone No
Motion Detection Yes, triggers audio alarm
Housing Housing Material: Aluminum & ABS
Housing Color: Silver
Sun Shield: Yes, not adjustable
Electronic Shutter 1/60 - 1/15,000 sec
Signal to Noise Ratio >48dB
Operating Temperature 14 - 104deg.F (-10 - 40deg.C)
Operating Humidity 85%
Power Camera Power Input: 9V DC - 600mA
Power Adapter Input: AC 100 - 240 50/60 Hz
Dimensions Receiver: 4.3 x 3 x 0.8" (109 x 76 x 20mm)
Camera: 5.3 x 4.8 x 2" (135 x 122 x 51mm) - with stand
Weight Receiver: 0.4 lbs (181g)
Camera: 0.8 lbs (0.4kg)
