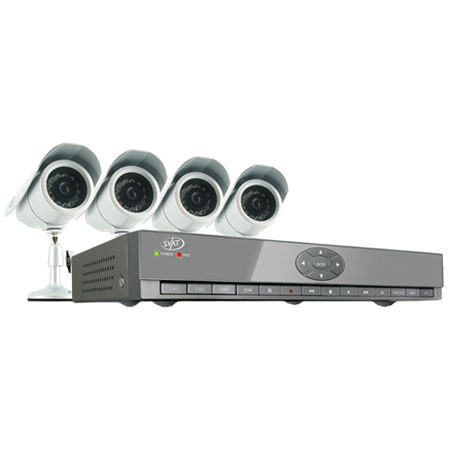

SVAT 4 Channel Smart Phone Compatible H.264 DVR System
SVAT Electronics

SVAT Electronics 4 Channel Smart Phone Compatible H.264 DVR Security System with Coaching iMenu and 4 Indoor/Outdoor Hi-Res CCD Night Vision Surveillance Cameras

SKU: SVSPCH264DSS MFR: CV502-4CH-002
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$314.95
Free Shipping (USA)
Qty:

Add to Wishlist

About this item

The SVAT CV502-4CH is a complete DVR security system that has all the latest features yet is very easy to use. It has been specifically designed for do-it-yourself applications. This kit includes a four channel DVR with built-in hard drive, four indoor/outdoor night vision cameras, and all accessories needed to start monitoring your property immediately.

Setup is fast and hassle-free because everything you need is included and an interactive coaching menu helps you along the way. Industry-leading features like smart phone access, H.264 compression, and convenient email alerts help you maximize the system and achieve a high level of protection.

What's Included With This Item

  • Svat 4 Channel Smart Phone Compatible H.264 DVR Security System
  • 4CH H.264 DVR with 500GB HDD
  • 4 Indoor/Outdoor Night Vision CCD Cameras
  • 4 x 60ft BNC Video/Power Wires for Cameras
  • IR Remote Control (Batteries Included)
  • Power Adapter for DVR
  • Four-to-One Port Power Supply for Cameras
  • 10ft RJ-45 Ethernet Cable
  • 12ft RCA to RCA (Male) Wire
  • 6 BNC Connectors
  • Mounting Hardware
  • 6ft VGA Cable
  • 4 Window Warning Stickers
  • Quick Start Guide
  • Software & Manual CD
  • Svat 1 Year Warranty

Summary of Customer Reviews

(2)
Customers most agreed on the following attributes:
Pros:
Easy to set up (2) , Great picture quality (2) , CAN VIEW ANYWHERE (1)
Cons:
Cheap camera mounts (1) , Switching picture display (1)
Best Uses:
Security (1)
Reviewer Profile:
Power user (1)

Key Features

  • iPhone and BlackBerry Smartphone Compatible: Access live video footage directly from any Smartphone, including the iPhone or BlackBerry Smartphones. Your DVR can also be set to email your hand-held whenever specific activity occurs, such as motion detection.
  • Record Over a Month of Footage: The 500GB hard drive is optimized for 24/7 surveillance and uses cutting edge H.264 compression to record over a month of video. Set to record in real time, your footage will stream flawlessly during playback.
  • Coaching iMenu: Helpful information bubbles will pop up to assist you as you scroll through different settings. Learn what each setting means so that you can configure the system to suit your needs.
  • Connect to a TV or Monitor Easily: VGA output and "spot" monitoring allow you to connect to up to two televisions and a computer monitor for viewing purposes. This gives you more options when viewing the activity captured by your cameras.
  • View Video Online with No Service Fees: View your DVR's live or recorded video footage on any Internet accessible computer with Internet Explorer. Know what is happening at your home or business wherever and whenever you want.
  • Stay Notified with Email Alerts: You can be notified of events occurring in your monitoring location. Automatically send alerts to your email address whenever motion is detected.
  • Customize Your Camera Display: Picture-in-picture allows you to view one camera in full screen and two other cameras of your choice in smaller windows simultaneously. You can also watch all four cameras at once in quad screen mode or cycle through each camera in sequence mode.
  • 4 Professional Grade Weather Resistant Cameras: Four high resolution color cameras, made with Sharp CCD image sensors, provide you with a clear, consistent picture at 420 TV lines of resolution.
  • See in the Dark with Automatic Night Vision: Each camera comes equipped with night vision, allowing you to see any monitored area (up to 15ft away!) in total darkness. The 12 infrared LEDs activate automatically when it becomes dark and deactivate during the day to save energy.
  • Multiple Easy Backup Options: A built-in USB port gives you the option of backing up and transferring your video footage with a USB flash drive or external USB hard drive. You can also connect to an external CD/DVD writer directly to your DVR and burn your footage to a disc.
  • Advanced Motion Activated Recording: Advanced motion detection settings ensure that false alarms are not triggered - the easy motion detection "mask" allows you to block out areas with constant movement.
  • Included Mouse and Remote: Navigate through the menu with ease using the included USB mouse, the front panel of your DVR or the convenient IR remote control.
  • Password Protection: Set a password to prevent unauthorized users from viewing your footage or changing any of your DVR settings.
  • 24/7 Scheduled Recording: Choose which days of the week and hours of the day you want to set your DVR to record, or not record. Each individual camera can even have a personalized weekly schedule.
  • Search by Date, Time or Event: Simply choose the desired date and time range, and the requested video clips will appear. Clips are also labeled by event, which makes it easy to find particular footage.
  • Endless Location Options with 60ft of Wiring per Camera: The included 60ft camera wiring gives you flexibility in the installation of your cameras and allows you to increase each camera's range. If you need additional 60ft cable lengths, you can purchase the CVW62.

Technical Specs

Functionality Triplex
Video Compression H.264
Wireless Frequency No
Number of cameras supported 4
Speaker No
Handheld No
File Format .NVR
Resolution NTSC : 704 X 480 / PAL: 704 X 576
Recording Frame Rate NTSC-30fps D1,60 fps HD1,120 fps CIF PAL-25 fps D1,50 fps-HD1,100 fps CIF
Recording Resolution NTSC : D1(704 X 480), HD1(704 X 240), CIF(352 X 240) / PAL: D1(704 X 576), HD1(704 X 288), CIF(352 X 288)
Recording Method Record as Each, Playback in Quad and Full Screen
Recording Qualities Normal, Good, Best
Recording Modes Motion Record, Continuous Record,
Recording Media HDD (Backup via USB)
Storage Capacity Max 1TB HDD
Autostart Recording Optional
Auto Resume Recording Yes
HDD Type Internal
Removable HDD No, fixed HDD
Video Format NTSC/PAL
Video Loss Alarm Auto Detect Alarm
Video Inputs 4 CH Composite BNC
Video Display Output 2 CH Composite BNC
Audio Input 1 channel
Audio Output 1 channel
Live Resolution NTSC : 704 X 480 / PAL: 704 X 576
Audio Bitrate 8 kbps
Live Frame Rate 30 FPS
Live Viewing Full, Quad, PIP, ZOOM, SEQ
Picture-in-Picture Yes
Network Protocol TCP/IP, DDNS, DHCP, PPPoE,UDP
Network LAN IP Static, Dynamic
Network Connection 10/100 BaseT Ethernet (RJ-45)
Back-up USB Flash drive, USB disk, USB CD-DVD/RW & network
Play Search Mode Time/Date, Event list
Play Speed 2x, 4x, 8x, 16x
Pan/Tilt/Zoom Yes
Play Mode Full, Quad, Zoom
OSD and System Menu Display Yes
OSD Language Display Multi-Language
Time and Date Stamp Display Yes
Password Protection Yes, Menu Password, Clear HDD Password
Adjustable Screen Settings Color, Brightness, Contrast
File Transfer USB
Operating System Linux
Processor ARM 9
Disk Full Warning Yes
Automatic Overwrite Option Yes
Playback Navigation Rewind, Play, Pause, Stop, Frame by Frame
Watermark No
Alarm Speaker Wattage No
LED Indicators Power, HDD
Housing Material Iron
Housing Color Grey
Cooling Fanless
Operating Temperature 41°F~104°F
Operating Humidity 10%~90%
USB Port For Firmware Upgrade, Backup, Mouse
Remote Control Yes
Supported Peripherals USB Mouse, Remote Control, USB Flash Drive
PTZ Protocols Pelco-D, Pelco-P
Mac Compatible No
PC Requirements for Software CD CPU: 1 GHz or above
RAM: 256MB or above
OS: Microsoft Windows 2000/ XP/Vista
Monitor Resolution: 1024x768
Camera Type Weatherproof Color IR CCD Camera
Image Sensor 1/4" Color SHARP CCD
Resolution 420 TV Lines
Outdoor Use Yes
IP Rating IP65
Focal Length 3.6mm
Focus Type Fixed
Optimal Focal Distance 20 ft.
Night Vision Yes
Number of IR LEDs and Range 12, up to 15ft
IR LED Control Automatic (CDS Sensor)
Min. Illumination 0 lux
IR Wavelength 850nm
Video Output 4 PIN DIN to RCA
TV System NTSC
Microphone No
Motion Detection No
Viewing Angle 60 Degrees
Electronic Shutter 1/60 ~ 1/100000 sec
BLC No
AGC Automatic
ELC Automatic
Line Lock No
Iris Control No
Gamma Correction >0.45
White Balance Automatic
Sun Shield Yes
IR Cut Filter No
Housing Material ANodized Aluminum
Housing Color Platinum Silver
Signal/Noise Ratio >48dB
Camera Bracket Yes
Lens Mount type M12
Pan/Tilt/Zoom No
Operating Temperature -10° ~ 60°C / Degrees
Operating Humidity 98%
LED Power Indicator No
Camera Power Input DC 12V 300mA
Camera Power Adapter Input 120V 60Hz
Battery Operable Yes, 3 AAA
Power Input 12V DC 3A
Power Consumption 10W~15W
Power Adapter Input 100V 50/60HZ~240 50/60HZ
Camera Dimensions 4.7" x 2.5" x 2.6"
Dimensions 12.4"x 2.5"x 8.8"
Camera Weight 0.6 lbs
Weight 5.5lbs
