SVAT Electronics CV501-16CH-007 Web Ready 16 Ch H.264 DVR Security System with iPhone & BlackBerry Access & 8 In/Outdoor Hi-Res CCD Night Vision Surveillance Cameras

SKU: SVWR16CHD8C MFR: CV501-16CH-007
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

Free Shipping

Add to Wishlist In Stock

About the SVAT Electronics CV501-16CH-007

The SVAT CV501-16CH-007 is a do-it-yourself video security package that has it all. Protect your property, valuables and family with advanced features that you can setup yourself. Know who enters your property even when you are away with the online viewing feature that lets you check in from any computer in the world with Internet Explorer.

Access your DVR's live footage from your smart phone and receive email alerts when suspicious activity occurs. This security system is loaded with user-friendly features that will help keep your business or home safe and secure. The CV501-16CH-007 is an effective and simple security solution that records over 8 of continuous video on the built-in 500GB hard drive.

The CV501-16CH-007 is one of SVAT's complete do-it-yourself systems that are incredibly easy to set up and use with no need to hire a professional installer. Auto-start recording ensures that your system will automatically begin recording as soon as you plug it in to a power outlet. You can easily monitor entryways, offices, shops, warehouses, children's rooms, garages, or any other area in your business or home.

Access live video footage directly from your iPhone or BlackBerry. This DVR allows you to utilize 3G technology, which is specifically designed to transmit your video and audio at higher speeds. Your DVR can also be set up to email your hand-held whenever specific activity occurs, such as motion detection.

Regardless of where you are in the world, you can view your DVR's live or recorded video footage on any internet accessible computer with Internet Explorer. See what is happening on your property and check in on your employees or family members. (Requires a router, Windows operating system, Internet Explorer browser and broadband Internet connection for online viewing).

The 500GB hard drive can hold over 8 years of continuous video and is optimized for 24/7 surveillance. We only use hard drives that are specifically designed for high capacity writing, which ensures long product life and accurate video data storage. Your DVR will alert you when your memory space is full so that you can overwrite your old video, stop the unit from recording, or backup and transfer your video footage.

The CV501-16CH-007 utilizes H.264 compression, the latest and most advanced compression level available for a DVR system. You will see an amazing picture but save almost 50% on storage space versus DVRs with MPEG-4 compression! H.264 maximizes your hard drive space.

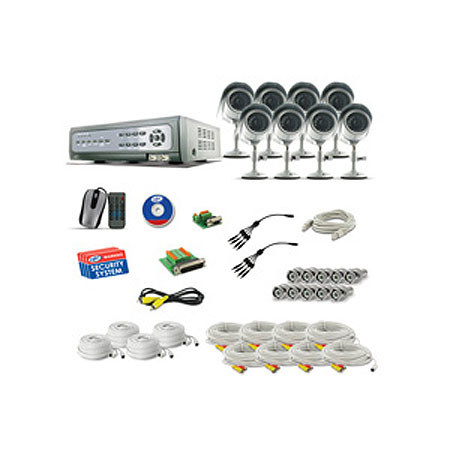

SVAT Electronics CV501-16CH-007 Includes

  • SVAT 16CH DVR w/500GB HDD
  • 8 In/Outdoor Night Vision CCD Cams
  • IR Remote Control (w/Batts)
  • USB Mouse
  • 8x60' 4 PIN DIN-RCA(M)Video/Power Wires
  • 2 x 4-to-1 Cam Power Supplies
  • 10' Power Adapter f/DVR
  • 10 BNC Conn(RCA-BNC)
  • 4x60' Extension Wires
  • 10' RJ-45 Ethernet Cable
  • 12' RCA-RCA (M-M)
  • 25 Pin D-SUB Adapter f/Alarm Input & Relay
  • 9 Pin D-SUB Adapter f/PTZ Cams
  • Mounting Hardware
  • Software CD
  • Manual
  • Quick Start Guide
  • 4 Window Warning Stickers
  • SVAT 1 Year Warranty

Summary of Customer Reviews

Customers most agreed on the following attributes:
Reviewer Profile:
Enthusiast (1)

SVAT Electronics CV501-16CH-007 Features

  • Access live video footage directly from your iPhone or BlackBerry
  • View video online with no service fees from any computer in the world
  • Record over 8 years of video footage on the built-in 500GB hard drive
  • The system utilizes the latest, most advanced compression level available-H.264-saving you storage space without sacrificing video quality

SVAT Electronics CV501-16CH-007 Specifications

DVR: Display 16CH DVR
DVR: Functionality Triplex
DVR: Video Compression H.264
DVR: Wireless Frequency N/A
DVR: Number of cameras supported 16
DVR: File Format H.264
DVR: Resolution NTSC: 720 x 480 / PAL : 720 x 576
DVR: Recording Frame Rate 120FPS (Fully Adjustable)
DVR: Recording Time Max 40 days with 160G HDD
DVR: Recording Resolution (Half D1)
NTSC : 720 x 240 up to 120 PPS
(Half D1) PAL : 720 x 288 up to 100 PPS
DVR: Recording Method Record as Each, Playback in MultiCamera or Full Screen
DVR: Recording Qualities Low, Medium, High, Best
DVR: Recording Modes Manual / Schedule/ Alarm (motion, alarm, video loss)
DVR: Recording Media HDD (Backup via USB, USB CD/DVD & Ethernet)
DVR: Storage Capacity 1.5T
DVR: Autostart Recording Yes
DVR: Auto Resume Recording Yes (watch dog)
DVR: HDD Type Internal
DVR: Removable HDD No
DVR: Video Format NTSC/PAL
DVR: Video Loss Alarm Auto Detect Alarm
DVR: Video Inputs 16 CH Composite BNC
DVR: Video Display Output 1 CH Composite BNC(Monitor)
DVR: Audio Input 1 CH
DVR: Audio Output 1 CH
DVR: Live Resolution NTSC: 720 x 480 / PAL : 720 x 576
DVR: Audio Bitrate 32 kbps
DVR: Live Frame Rate 16 X 30 Frame / Sec
DVR: Live Viewing Full, 4, 9, 13, 16 ZOOM, SEQ
DVR: Network Protocol TCP/IP, DDNS, DHCP, PPPoE, SMTP, FTP
DVR: Network LAN IP Static, Dynamic
DVR: Network Connection 10/100 BaseT Ethernet (RJ-45)
DVR: Back-up USB & Ethernet
DVR: Play Search Mode Time / Date, Event list
DVR: Play Speed X2 X4 X8
DVR: Pan/Tilt/Zoom Yes
DVR: Play Mode 1 (Full)/ 4 / 9 / 13 /16
DVR: OSD and System Menu Display Yes
DVR: OSD Language Display Multi-Language
DVR: Time and Date Stamp Display Yes
DVR: Password Protection Yes, Menu Password, Clear HDD Password
DVR: Adjustable Screen Settings Color, Brightness, Contrast, Hue
DVR: File Transfer Ethernet, HDD, USB
DVR: Operating System Linux
DVR: Disk Full Warning Yes
DVR: Automatic Overwrite Option Yes
DVR: Playback Navigation Rewind, Play, Pause, Stop, Forward
DVR: LED Indicators Play, Power, HDD, REC
DVR: Housing Material Aluminum
DVR: Housing Color Black
DVR: Cooling Fan Based
DVR: Power Input 12V DC 4.16A
DVR: Power Consumption 22W (Without HDD)
DVR: Power Adapter Input 100V 50/60Hz ~ 240V 50/60 Hz
DVR: Operating Temperature 0°F~104°F
DVR: Alarm Sensor Inputs Yes, 16
DVR: Alarm Sensor Connection Terminal
Camera: Camera Type Weatherproof Color IR CCD Camera
Camera: Image Sensor 1/4" Color SHARP CCD
Camera: Resolution 420 TV Lines
Camera: Outdoor Use Yes
Camera: IP Rating IP65
Camera: Focal Length 3.6mm
Camera: Focus Type Fixed
Camera: Optimal Focal Distance 20 ft.
Camera: Night Vision Yes
Camera: Number of IR LEDs and Range 12, up to 15ft
Camera: IR LED Control Automatic (CDS Sensor)
Camera: Min. Illumination 0 lux
Camera: IR Wavelength 850nm
Camera: Video Output 4 PIN DIN to RCA
Camera: TV System NTSC
Camera: Viewing Angle 60 Degrees
Camera: Electronic Shutter 1/60 ~ 1/100000 sec
Camera: BLC No
Camera: AGC Automatic
Camera: ELC Automatic
Camera: Iris Control No
Camera: Gamma Correction >0.45
Camera: White Balance Automatic
Camera: Sun Shield Yes
Camera: IR Cut Filter No
Camera: Housing Material Anodized Aluminum
Camera: Housing Color Platinum Silver
Camera: Signal/Noise Ratio >48dB
Camera: Camera Bracket Yes
Camera: Pan/Tilt/Zoom No
Camera: Operating Temperature 50° ~ 140°F
Camera: Operating Humidity 98%
Camera: Camera Power Input DC 12V 300mA
Camera: Power Adapter Input 120V 60Hz
Camera: LED Power Indicator No
USB Port For Firmware Upgrade, Backup, Mouse
Remote Control Yes
Supported Peripherals USB Mouse, IR Remote Control, USB Flash Drive, USB CD/DVD Burners
Alarm Sensor Inputs 16
Alarm Relay Outputs Yes
PTZ Protocols Pelco-D, Pelco-P, Hunt, Li-lin, Dynacolor, Eyeview, EP-Pelco-D, EP-Pelco-P
Mac Compatible No
PC Requirements for Software CD No, IE browser
CPU Required 1 GHz or above
RAM Required 256MB or above
OS Required Microsoft Windows 2000/ XP/Vista
DVR: Dimensions 11" (W) x 3.15" (H) x 10.3" (D)
DVR: Weight 9 lbs
Camera: Dimensions 4.7"(L) x 2.5"(W) x 2.5"(H)
Camera: Weight Approx. 0.716 lbs
