Swann Swann ADW-400/X Zero Interference Extra Camera, 1/4" CMOS Sensor, 300 TV Lines, 26'/8m Night Vision Distance, 165'/50m Wireless Transmission

SKU: SW322XDW MFR: SW322-XDW

This item is no longer available.

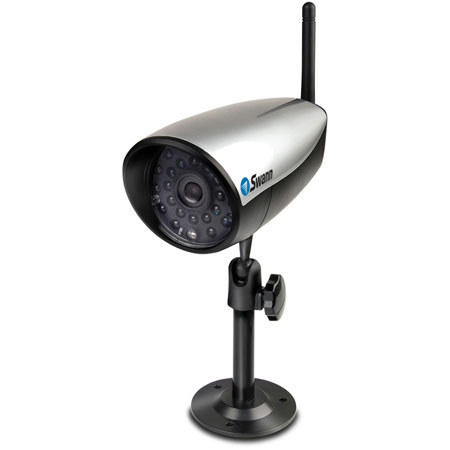

Swann ADW-400/X: Picture 1 regular

About Swann ADW-400/X

The Swann ADW-400/X Zero Interference Add-On Camera is an extra camera for the ADW-400 digital guardian camera and recorder. Equipped with a 1/4" format CMOS sensor and a 3.6 mm fixed focal length lens, the add-on camera offers a resolution up to 300TVL and a 53 degree angle of view.

An array of 24 IR LEDs ensures that the security camera works in complete darkness and offers a 0 lux night vision up to 26' (8 m). The ADW-400/X camera wirelessly transmits digital data up to a distance of 165' (50 m) to the paired receiver. For enhanced safety, the point-to-point wireless transmission is encrypted and secured. Based on digital data transmission, the camera has zero interference and static from other wireless devices such as Bluetooth, web routers, microwave ovens and cordless phones.

The ADW-400/X add-on camera features motion detection-based video recording function and its microphone can pick up sound from a maximum distance of 9' (3 m). Automatic White Balance of the camera adjusts the red and blue signals by taking a standard white color reference to get the most natural colors. Automatic Gain Control adjusts the signal strength to maintain a constant brightness level.

Swann ADW-400/X Features

  • Equipped with a 1/4" format CMOS sensor
  • Offers up to 300TVL resolution
  • 3.6 mm fixed focal length lens offers 53 degree angle of view
  • Offers color image during daytime and switches to B&W imagery at night for effective surveillance
  • 24 IR LEDs enable night vision for up to 26' (8 m) in complete darkness
  • Wireless data transmission up to a distance of 165' (50 m) to the paired receiver
  • Point-to-point wireless transmission is encrypted and secured
  • Zero interference and static from other wireless devices such as Bluetooth, web routers, microwave ovens and cordless phones
  • Motion detection-based video recording function
  • Microphone can pick up sound from a maximum distance of 9' (3 m)
  • Automatic White Balance adjusts the red and blue signals by taking a standard white color reference to get the most natural colors
  • Automatic Gain Control adjusts the signal strength to maintain a constant brightness level
  • Weather-resistant anticorrosive casing made of ABS plastic protects the camera
  • Operating temperature from -14 to 122 degree F (-10 to 50 degree C)

Swann ADW-400/X Specifications

Image Sensor
1/4" CMOS
Video Quality
Up to 300 TV Lines
Effective Number of Pixels
VGA: 640 x 480
QVGA: 320 x 240
Minimum Illumination
0 Lux (IR on)
Day-Night Switching
Color during day / switches to B&W at night
Backlight Compensation
Yes
Lens
3.6mm
Viewing Angle
53 degrees
Microphone
Yes
Audio Range
9' (3m)
Night Vision Range
Up to 26' (8m)
Number of IR LED's
24
Infra-red LED Life
Up to 10,000 hours
Operating Power
DC 5V
Operating Temperature
14-122deg. F (-10 to 50deg. C)
Case Material
ABS plastic
Digital or Analog
Digital
Maximum Transmission Distance
Up to 165' (50m)
Typical Range
65' (20m)
Frequency
2.4 GHz FHSS (Frequency hopping)
Transmission Channels
4
Dimensions
Camera: 5.1" x 2.6" x 2.6" / 130mm x 65mm x 65mm
Stand: 4.7" x 2.4" x 2.4" / 120mm x 60mm x 60mm
Weight
7.6 oz / 215g (Camera and Stand)
Mfr #
SW322-XDW
SKU
SW322XDW
Q&A

Questions & Answers Powered by TurnTo®

Questions about this item:

Shopper  Ii want to mount two video cameras on the ceiling betrween two organs to watch the fingers of the organist as they play.. Are these color cameras and would they work in an application such as described above?
JACQUELYN J  Yes they are color and the application would work!
