SWIT M-1048H 4.8inx 3 3U LCD Monitor Composite SD-SDI
Swit Electronics

SWIT M-1048H 4.8"x3 High Resolution 3U Rack Mounted LCD Monitors, 16:9 /4:3 Aspect Ratio, Composite Video/HD-SDI and SD-SDI In/Out

SKU: SWTM1048H MFR: M-1048H
Write a Review
Ways to Save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$2,900.00
Free Shipping (USA)
Qty:

Add to Wishlist
OverviewTech Specs
Its never too late...Click by 8! Same day shipping.

About the Swit Electronics M-1048H

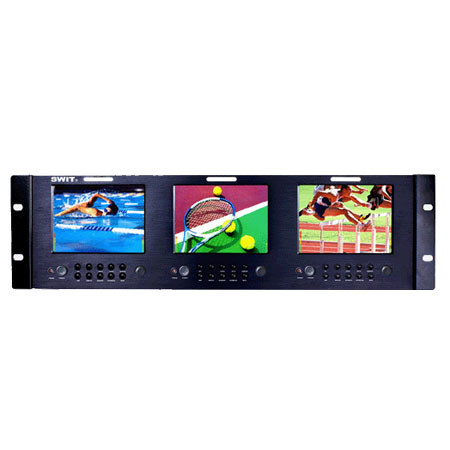

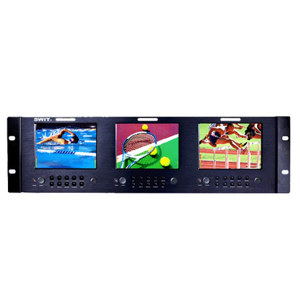

The SWIT M-1048H is a high resolution LCD monitors, which has three 4.8" screens and standard 19-inch 3U rack mounting. The multifunctional menu key allows an easy operation. Wide viewing angle, 16:9 / 4:3 adjustable and the new design of stereo level display. M-1048H accepts composite video, HD-SDI and SD-SDI.

Swit Electronics M-1048H Specifications

Working Voltage DC 12V
Rated Power = 30W
Screen Size 4.8" x 3 (Monitors)
Viewing Angle H/V: 130/110
Resolution 800 x RGB x 480
Brightness 350cd/m2
Color System PAL/NTSC
Aspect Ratio 16:9/4:3
Accepts Composite Video in/out, HD-SDI in/out and SD-SDI in/out
Working Temperature 0°C ~ +40°C
Working Humidity 10%-80%
Storage Temperature -15°C ~ +60°C
Storage Humidity 10%-90%
Dimension 485 x 132 x 77mm
Net Weight 2800g
