SWIT Electronics S-1048HF 4.8" High Resolution Color LCD Monitor with 16:9/4:3 Aspect Ratio, Composite/HD-SDI/SD-SDI In/Out and Sony L Series Battery Mount

See all Swit Electronics items
SKU: SWTS1048HF MFR: S-1048HF
Free Shipping

See all shipping options

In Stock Online - Usually ships within 2-4 Days learn more

Made in USA

Our Price

$990.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About SWIT Electronics S-1048HF

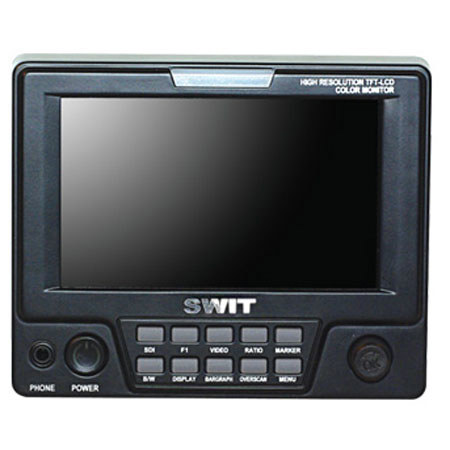

The SWIT S-1048H is a high resolution 4.8" 1.2 Megapixel LCD monitor which has a strong magnesium alloy shell and multifunctional menu key, allowing easy picture setting adjustments.

The SWIT S-1048H monitor is perfect for mounting on top of your camera as an additional viewing source. This monitor can accept composite, HD-SDI & SD-SDI signals. The monitor also has stereo Audio bar level display, 4:3 Safety marker, looping composite/HD-SD output and 3 selectable user defined picture settings.

It produces fantastic picture quality and has a wide viewing angle. In addition to being capable of accepting power from a DV style battery, the S-1048H has a 4 pin XLR 12v DC power connector for added power versatility.

SWIT Electronics S-1048HF Specifications

Screen Size
4.8"
Viewing Angle
H/V: 130/110
Resolution
800xRGBx480
Color System
PAL/NTSC
Brightness
350cd/m2
Contrast
300:1
Aspect Ratio
16:9/4:3
Composite video in/out
Yes
HD-SDI in/out
Yes
SD-SDI in/out
Yes
Working Voltage
DC12V or compatible battery
Rated power
= 10W
Working Temperature
0°C ~ +40°C
Working Humidity
10%-80%
Storage Temperature
-15°C ~ +60°C
Storage Humidity
10%-90%
Battery Mount
F type
Recommended battery
S-8770/8970/8972
Compatible with Sony NP-770/F970 batteries
Voltage
7.2V
Dimension
5.6 x 4.9 x1.7"/141 x 114 x 42mm
Weight
1.5 lb/720g
Warranty
SWIT warranty
