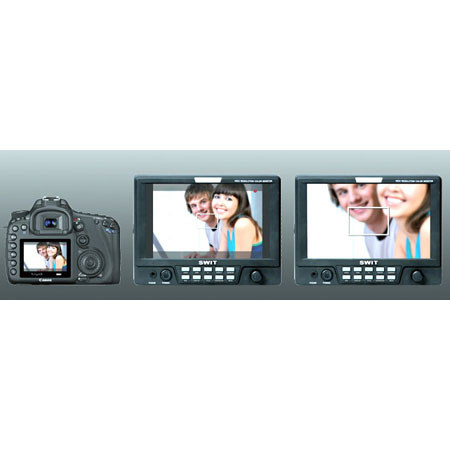

SWIT S-1070CU 7 inch Monitor, Sony BP-U Battery Mount
Swit Electronics

SWIT S-1070CU 7" Monitor, 16:9/4:3, HDMI, Sony BP-U Series Battery Mount

SKU: SWTS1070CU MFR: S-1070C+U
What's Included
What's Included With This Item:
  • Swit S-1070CU 7 inch Monitor
  • Power Adapter
  • Sun Hood
  • Cold Shoe
  • Swit 2 Years Warranty
Write a Review
Ways to Save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$960.00
Free Shipping (USA)
Qty:

Add to Wishlist
OverviewFeaturesTech Specs
Its never too late...Click by 8! Same day shipping.

About the Swit Electronics S-1070CU

S-1070CU is a portable high resolution LCD monitor, offering HDMI and Composite video which is a perfect solution for DSLR and video professionals. It has a strong and lightweight magnesium alloy shell and easy to mount on the top of camera as an additional viewing source.

S-1070CU monitor accepts 1 HDMI, 1 Composite video and 1 Stereo audio input and has 1 Composite video loop through output. It has title edit and display, safety mark display, 3-color TALLY light and 3 user defined picture settings. S-1070CU monitor has a 4-pin XLR 12V DC power connector for added power versatility.

Swit Electronics S-1070CU Includes

  • Swit S-1070CU 7 inch Monitor
  • Power Adapter
  • Sun Hood
  • Cold Shoe
  • Swit 2 Years Warranty

Swit Electronics S-1070CU Features

  • 7-inch TFT LCD
  • 800 x RGB x 480
  • 16:9 / 4:3 adjustable
  • HDMI, Composite video, Stereo audio
  • Underscan / Overscan switch, safety mark, center zoom-in
  • 3-color TALLY light
  • Magnesium alloy shell

Swit Electronics S-1070CU Specifications

Battery Mount Sony BP-U Series Battery Mount
Screen Size 7-inch
Viewing Angle H/V: 130deg. /110deg.
Resolution 800 x RGB x 480
Brightness 350cd/m2
Contrast 300:1
Aspect Ratio 16:9/4:3
Color System PAL/NTSC
Working Voltage DC 12V (Battery pack 7.2V/14.4V)
Rated Power Less than or equal to 5.3W
Input 1 HDMI in
1 BNC Composite in
2 RCA,L, R stereo audio in
Output 1 BNC, Composite loop through out
Dimensions 7.2" x 5.4" x 1.5" / 183 x 136 x 35 mm
Weight 1.4 lbs / 640g
