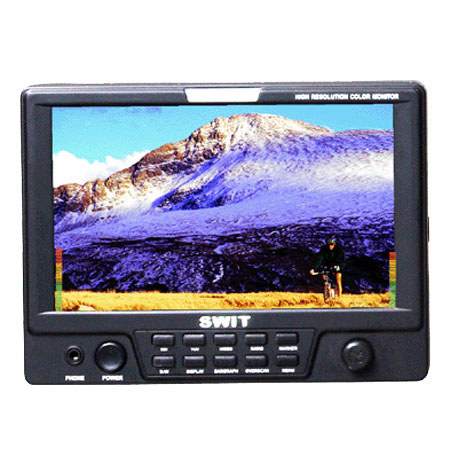

SWIT 7in LCD Monitor,Composite SDI, Gold Battery Mount
Swit Electronics

SWIT S-1070HA 7.0" High Resolution Color LCD Monitor with 16:9/4:3 Aspect Ratio, Composite/ SD-SDI In/Out, YUV In & Anton Bauer Gold Battery Mount

SKU: SWTS1070HA MFR: S-1070HA
What's Included
What's Included With This Item:
  • SWIT S-1070HA 7.0" High Resolution Color LCD Monitor
  • Camera Mounting Bracket
  • Carrying Case
  • Power Adapter
  • Screen Hood
  • Pan-tilt Trestle
  • SWIT Warranty
Write a Review
Ways to Save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$1,159.95
Free Shipping (USA)
Qty:

Add to Wishlist
OverviewTech Specs
Its never too late...Click by 8! Same day shipping.

About the Swit Electronics S-1070HA

The SWIT S-1070H is a portable 7" High Res 1.2 Megapixel LCD monitor which has HD-SDI/SD-SDI, Composite and Component inputs with HD-SDI/SD-SDI Looping Output. The S-1070H is an ideal portable monitor to mount on top of your camera either via the shoe thread or by clamping it onto the handle of the camera.

This High Res 1.2 Megapixel Monitor has a strong magnesium alloy shell, a very user Friendly multifunctional menu key that allows easy access and operation of the features and set up parameters. The SWIT S-1070H features 16:9/4:3 Aspect ratio and has a 12v XLR DC Input. It also features Headphone Audio Monitoring and on-screen Stereo Audio Level Display.

Swit Electronics S-1070HA Includes

  • SWIT S-1070HA 7.0" High Resolution Color LCD Monitor
  • Camera Mounting Bracket
  • Carrying Case
  • Power Adapter
  • Screen Hood
  • Pan-tilt Trestle
  • SWIT Warranty

Swit Electronics S-1070HA Specifications

Screen Size 7.0"
Viewing Angle H/V: 130/105
Resolution 800xRGBx480
Color System PAL/NTSC
Brightness 350cd/m2
Contrast 300:1
Aspect Ratio 16:9/4:3
Composite video in/out Yes
YUV Yes
HD-SDI in/out Yes
SD-SDI in/out Yes
Working Voltage DC12V or compatible battery
Rated power = 14W
Working Temperature 0°C ~ +40°C
Working Humidity 10%-80%
Storage Temperature -15°C ~ +60°C
Storage Humidity 10%-90%
Battery Mount A type
Recommended battery S-8082A/8110A/8160A
Compatible with Anton Bauer GL-50/GL-100 batteries
Voltage 14.4V
Dimension 7.2 x 5.4 x 1.9"/183 x136 x 47mm
Weight 1.6 lb/720g
Warranty SWIT warranty
