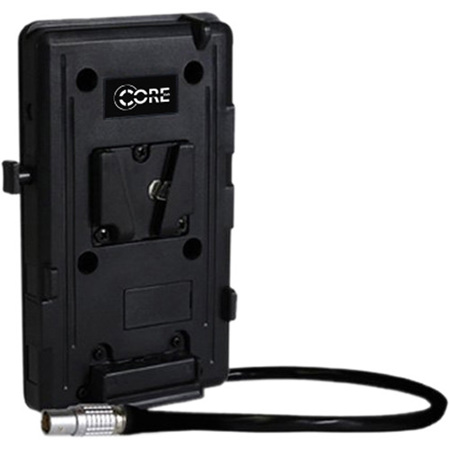

The Switronix GP-S-EPIC10 V Type Camera Mount Plate is a plate that transmits data to the EPIC/Scarlet when used in conjunction with RED Bricks or designated Switronix RED Bricks. Mounting directly to the RED Cradle or RED Quickplate, the GP-S-EPIC20 features dual P-Tap outputs, as well as a 10" (25.4 cm) 1B 6-pin Lemo connection.
|Input||11-17 V DC|
|Output for camera||11-17 V DC, Unregulated|
|Output for 2x P-Taps||11-17 V DC, Unregulated|
|Cable length (Lemo)||10" (25.4 cm)|
|Dimensions||3.25" x 5.5" x 0.5" / 8.25 x 13.9 x 1.27 cm|
|Weight||0.4 lbs / 0.18 kg|
